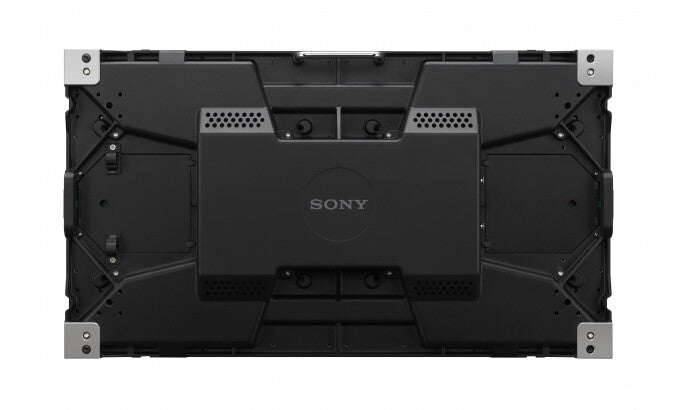

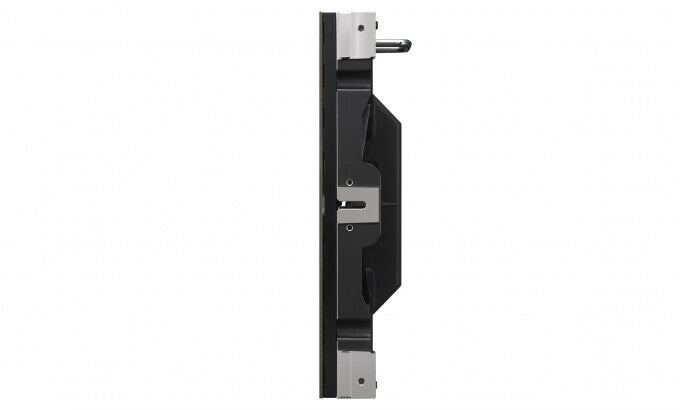

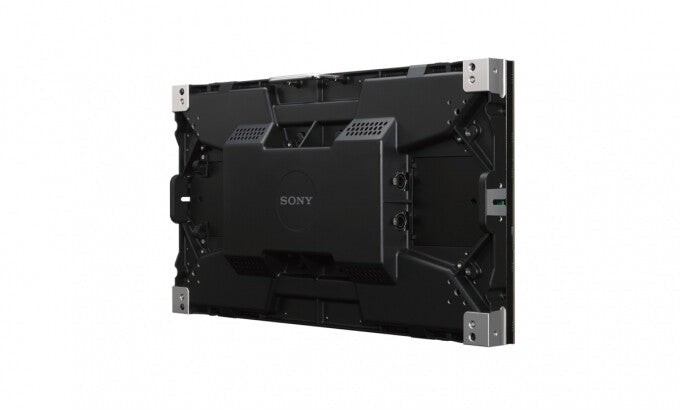

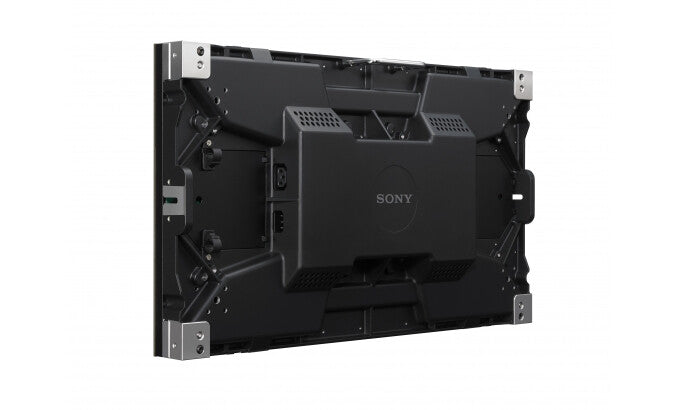

Sony ZRD-C12A video wall display MicroLED Indoor

Sony  |  Varenummer: ZRD-C12A

Beskrivelse

High contrast Micro LED video wall modular display cabinet

Unforgettable images to match the largest creative ambitions
The ZRD-C12A modular display cabinet combines advanced Micro LED technology with powerful processor "X1™ for Crystal LED" to create bigger, bolder, more attention-grabbing visual experiences.

Offering spectacular 1,000,000:1 contrast and a high brightness of 800 cd/m2, the ZRD-C12A is ideal for presenting immersive HDR content in a wide range of environments including corporate lobbies, showrooms, boardrooms, museums, galleries and other public spaces. Cutting-edge picture processing technologies ensure immersive large-scale images with industry leading clarity and colour.

The ZRD-C12A features a resolution of 480 x 270 dots, with a pixel pitch of 1.26 mm.

The borderless design of each energy-efficient Micro LED panel allows multiple ZRD-C12A cabinets to be tiled seamlessly, creating super-size high resolution displays with virtually any dimensions or aspect ratio – and no bezels or visible gaps. The slim, light Micro LED panels are easy to install and maintain without requiring special skills or complex equipment.

Specifikationer

Display
Display technology MicroLED
Pixel pitch 1.26 x 1.26 mm
Display brightness 800 cd/m²
Contrast ratio (typical) 1000000:1
High Dynamic Range (HDR) supported Yes
Viewing angle, horizontal 160°
Viewing angle, vertical 160°
Colour gamut 97%
Colour depth 22 bit
Design
Placement supported Indoor
Orientation Horizontal
Product colour Black
Ports & interfaces
Ethernet LAN (RJ-45) ports 2
Power
Power consumption (typical) 64 W
Power consumption (max) 157 W
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Technical details
Products per pallet 8 pc(s)
Pallet net width 100 cm
Pallet net length 120 cm
Pallet net height 85 cm
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -20 - 60 °C
Operating relative humidity (H-H) 20 - 80%
Storage relative humidity (H-H) 20 - 80%
Weight & dimensions
Width 608 mm
Depth 76 mm
Height 342 mm
Weight 9.5 kg
