Vivolink VLUSBCHUB2 interface hub USB 3.2 Gen 2 (3.1 Gen 2) Type-C 10000 Mbit/s Grey

VivoLink  |  Varenummer: VLUSBCHUB2
Stregkode: 5704174933663

Beskrivelse

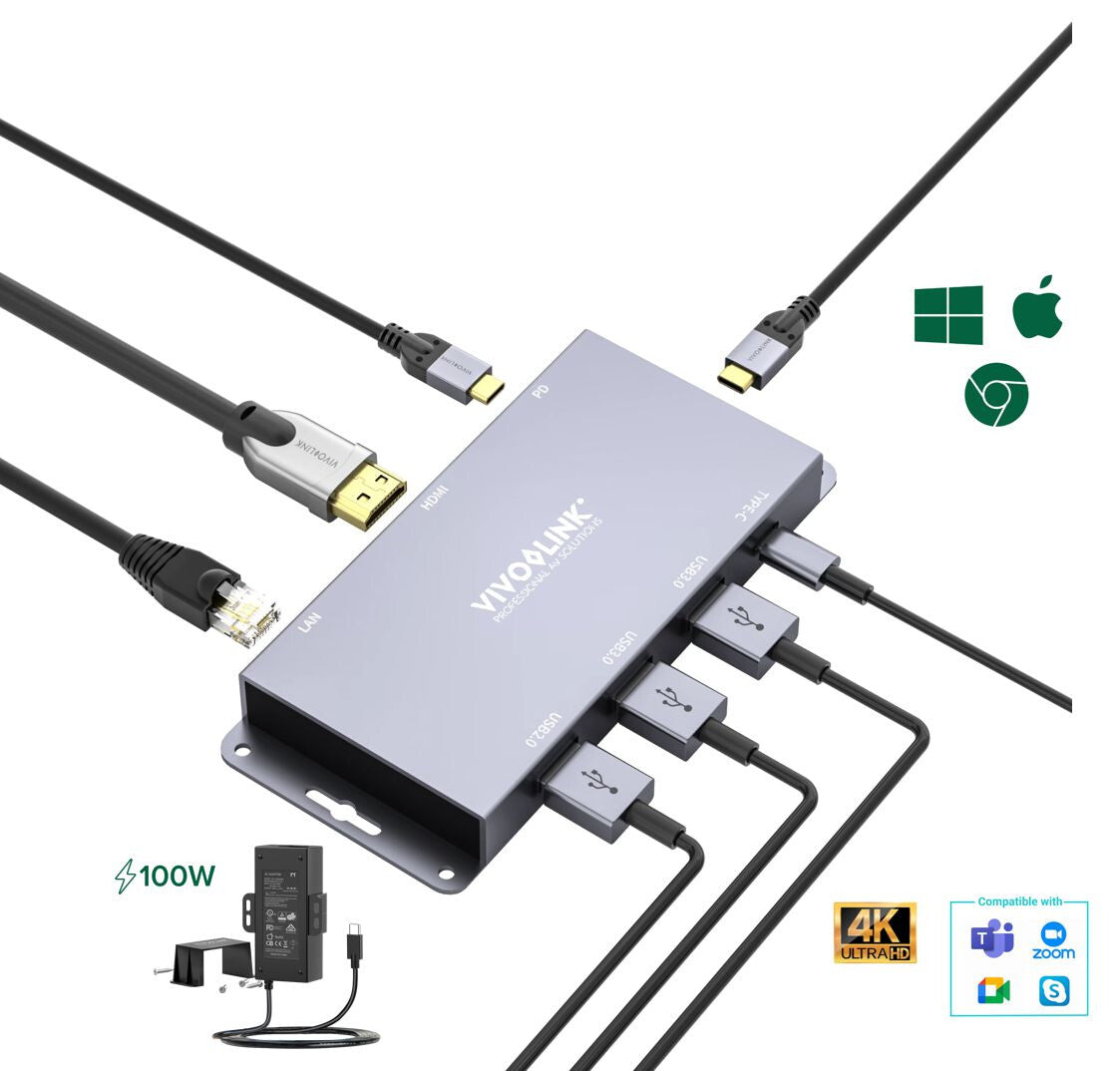

USB-C HUB for conference system

Vivolink 4K USB-C HUB – Your all-in-one solution for video conferencing systems. Connect all your equipment, just like you would with a docking station for your computer.
The VLUSBCHUB2 is your key to effortless conferencing. Designed as a 4K USB-C Hub, it allows you to connect multiple devices via USB and share content seamlessly on a single screen.
This Hub is designed to be fixed either under, or on top of, the desk to support all connections within a conference setting.
The Hub provides power for the connected device, thus reducing the need for extra unnecessary power cables.
The HDMI output delivers both 4K video and sound from the device, while the LAN port provides cabled network connection to the laptop.
Ensure to use cable PROUSBCMM* for the connection from PC to HUB.
The maximum reccomend lenght of cable is 5m (PROUSBCMM5)
The following formats are supported:
DP Alt Mode and DisplayPort Supported products: Windows PC, Apple MacBook including iPad Pro M2
Reccomended HDMI cables for long distance is: PROHDMIOP20
Package Content:
1 x HUB

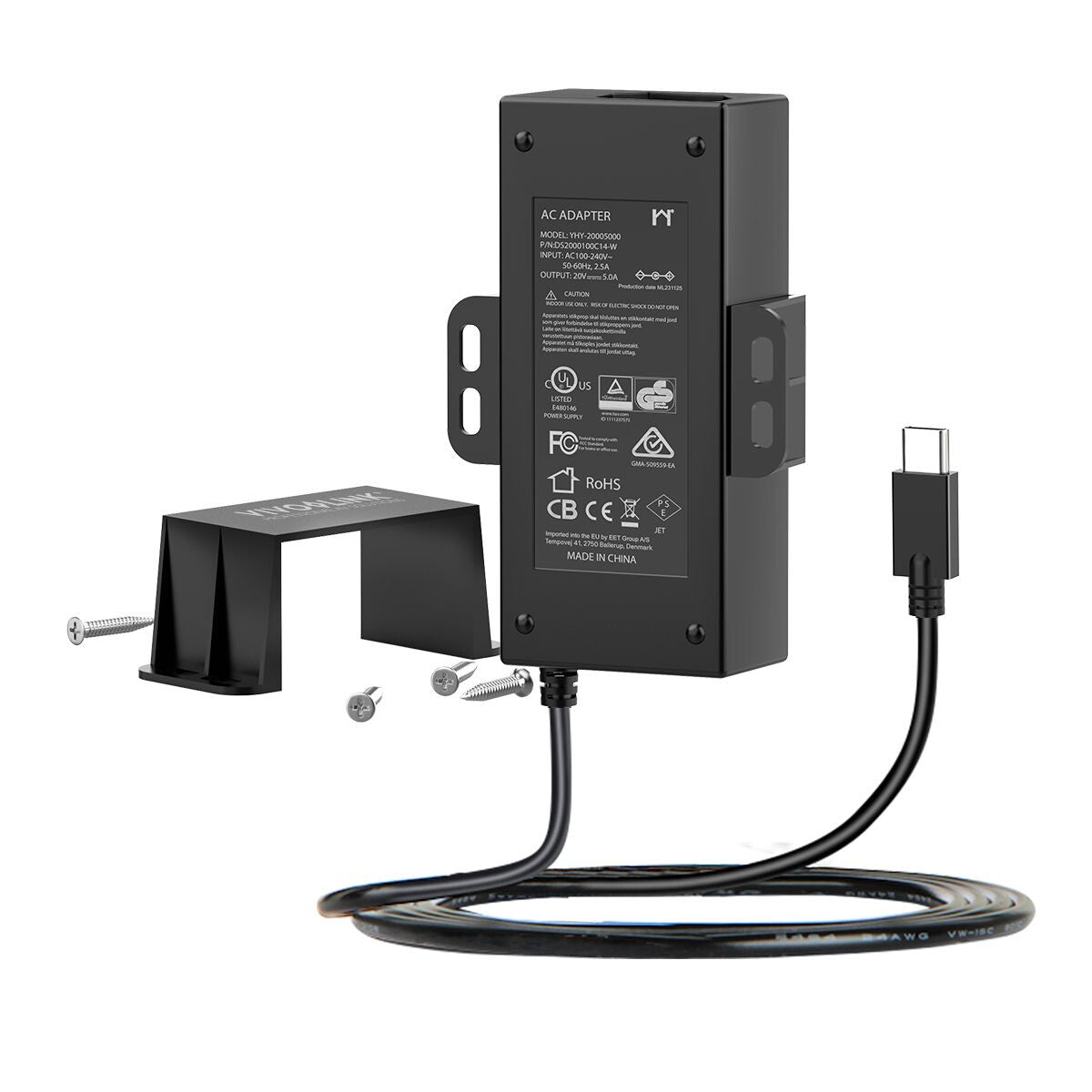

1 x 100W USB-C PSU incl. mount for PSU
1 x UK Power Plug (Type G)
1 x EU Power Plug (Type C)

Specifikationer

Ports & interfaces
Ethernet LAN (RJ-45) ports 1
USB Type-C DisplayPort Alternate Mode Yes
HDMI ports quantity 1
HDMI version 1.4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
USB 2.0 Type-C ports quantity 2
USB 2.0 ports quantity 1
Hub interfaces HDMI, USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Host interface USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Ports quantity 8
Features
HD type 4K Ultra HD
Number of displays supported 1
USB Power Delivery up to 100 W
USB Power Delivery (USB PD) Yes
Product colour Grey
Housing material Metal
Supported graphics resolutions 3840 x 2160
Maximum refresh rate 30 Hz
Data transfer rate 10000 Mbit/s
System requirements
Mac operating systems supported Yes
Windows operating systems supported Yes
Weight & dimensions
Weight 138 g
Height 155 mm
Width 60 mm
Packaging data
Package weight 472 g
Packaging content
Cables included USB Type-C
AC adapter included No
Sustainability
Sustainability compliance Yes
Logistics data
Master (outer) case height 50 mm
Master (outer) case length 330 mm
Master (outer) case width 165 mm
Technical details
Compliance certificates RoHS
Other features
Maximum resolution 3840 x 2160 pixels
