ATEN 4-Port 4K HDMI Audio/Video Switch with IR Remote Control

Aten  |  Varenummer: VS481B-AT-G
Stregkode: 4719264642203,6727920057320

Beskrivelse

10.2 Gb/s, 340 MHz, 4x HDMI, HDCP, RS-232, 200x82.5x25 mm

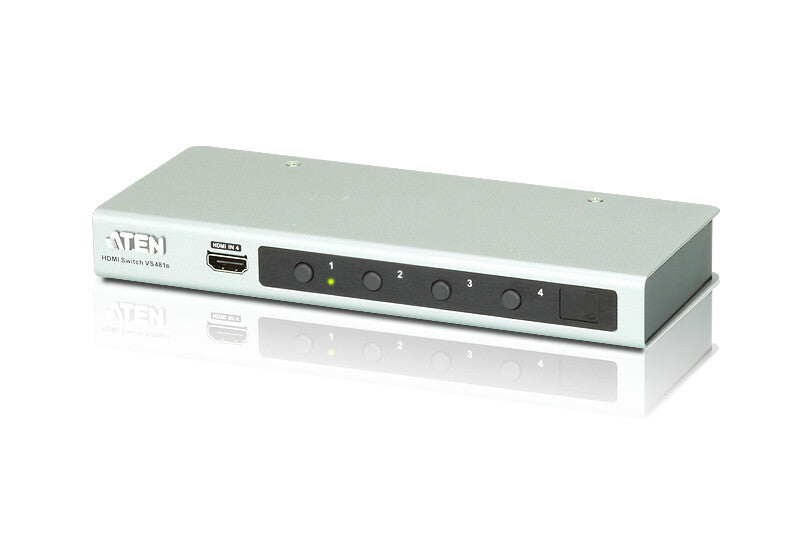

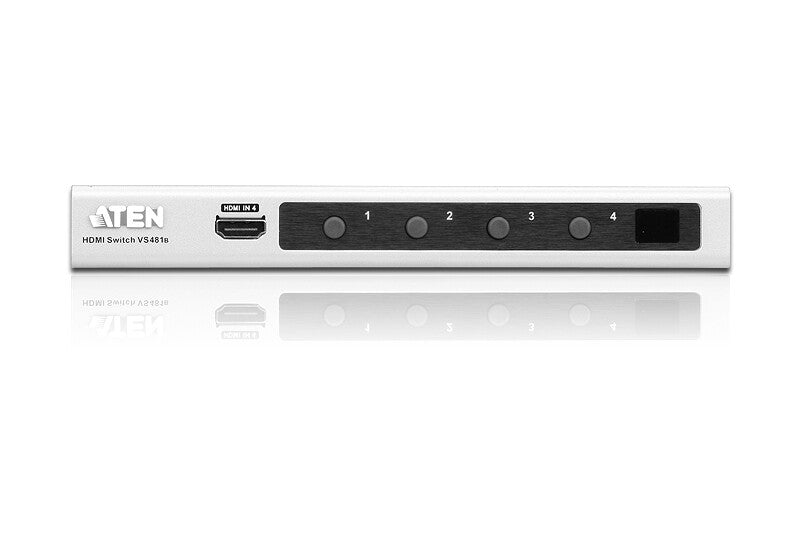

The VS481B 4-Port HDMI Switch allows you to quickly connect 4 HDMI sources to your HDMI display and easily switch between them via front panel pushbuttons, RS-232 or IR remote control. The front panel’s LEDs indicate the source device selected for the display at a glance.

The VS481B supports Ultra HD 4Kx2K, the newest resolution for high definition displays; Auto Switching modes for auto port selection;Instant Switching for a smooth video transition between HDMI ports with increased efficiency; and features a built-in bi-directional RS-232 serial port that allows the switch to be controlled through a high-end controller, PC, and/or home automation/home theater software package.

Specifikationer

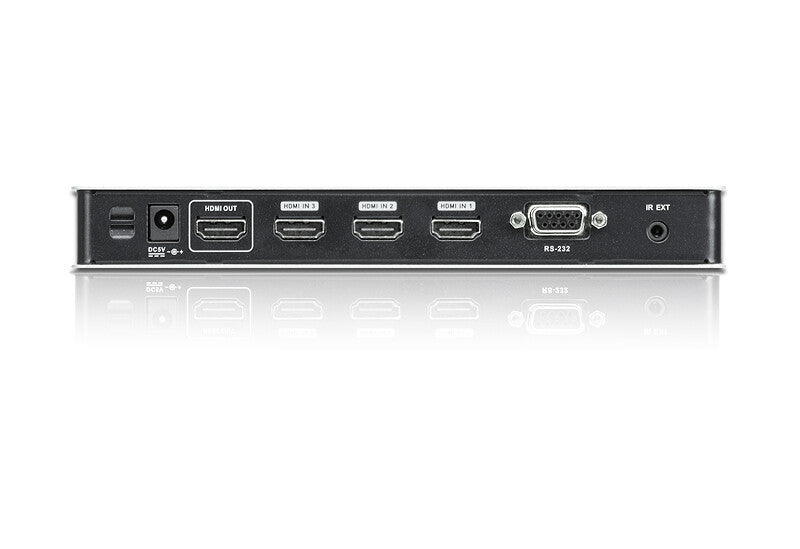

Ports & interfaces
DC-in jack Yes
RS-232 ports 1
Number of HDMI outputs 1
HDMI in 4
HDMI ports quantity 5
Video port type HDMI
Features
3D Yes
HDCP Yes
Maximum refresh rate 60 Hz
Maximum resolution 4096 x 2160 pixels
HD type 4K Ultra HD
Dolby technologies DTS-HD Master Audio, Dolby TrueHD
HDCP version 2.2
Input impedance 100 Ω
Output impedance 100 Ω
Maximum operating distance 15 m
LED indicators Yes
Supported graphics resolutions 3840 x 2160, 4096 x 2160
Bandwidth 10.2 Gbit/s
Consumer Electronics Control (CEC) support Yes
Material Metal
Product colour Silver
Power
Power consumption (typical) 1.76 W
Weight & dimensions
Weight 659 g
Height 25 mm
Depth 200 mm
Width 82.5 mm
Packaging data
Package weight 822 g
Package height 160 mm
Package depth 239 mm
Package width 59 mm
Packaging content
Cables included HDMI
AC adapter included Yes
User guide Yes
Remote control included Yes
Quantity per pack 1 pc(s)
Operational conditions
Storage relative humidity (H-H) 0 - 80%
Operating relative humidity (H-H) 0 - 80%
Storage temperature (T-T) -20 - 60 °C
Operating temperature (T-T) 0 - 50 °C
Logistics data
Products per master (outer) case 10 pc(s)
Master (outer) case net weight 6.59 kg
Master (outer) case gross weight 8.96 kg
Master (outer) case height 178 mm
Master (outer) case length 490 mm
Master (outer) case width 315 mm
Harmonized System (HS) code 85176990
