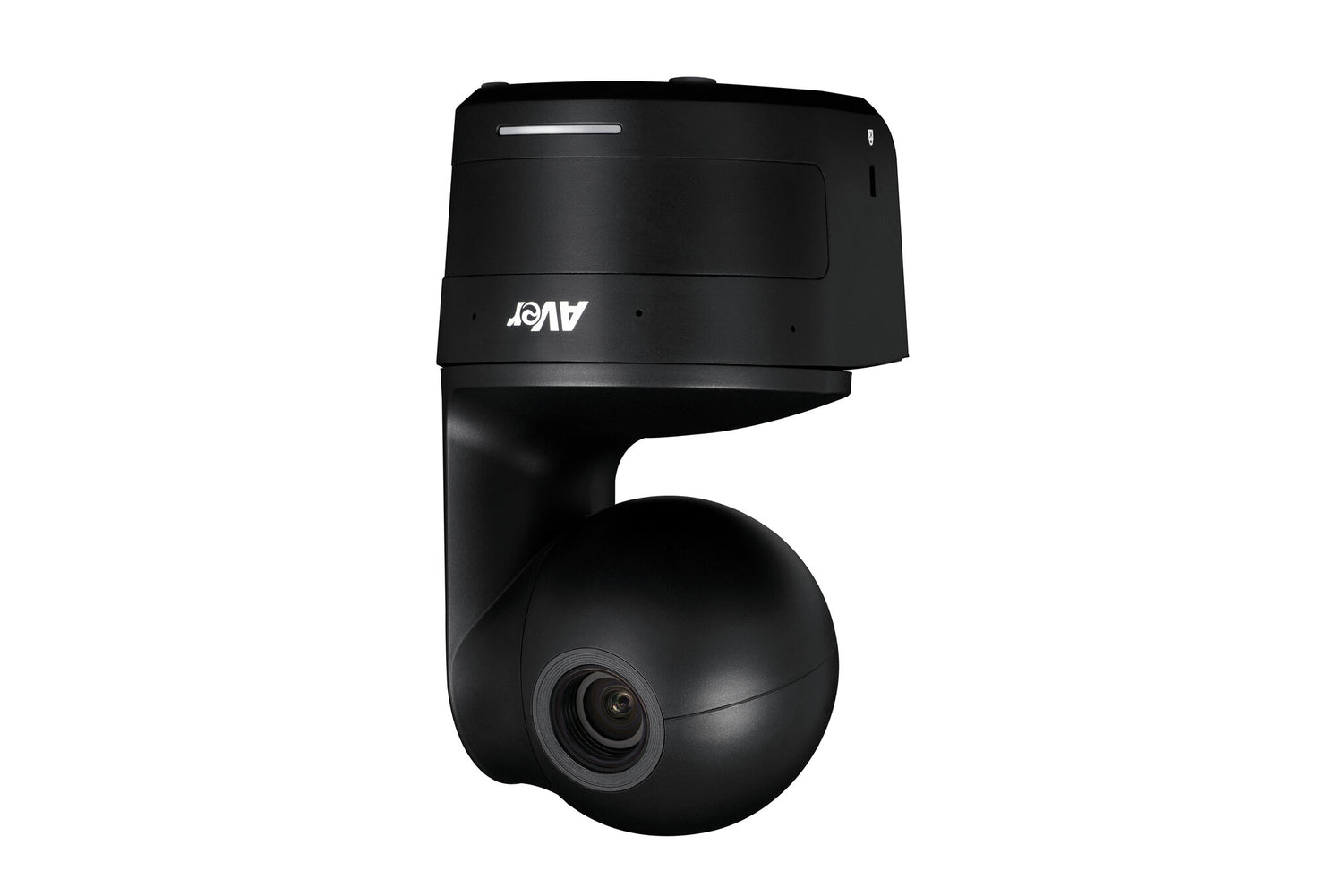

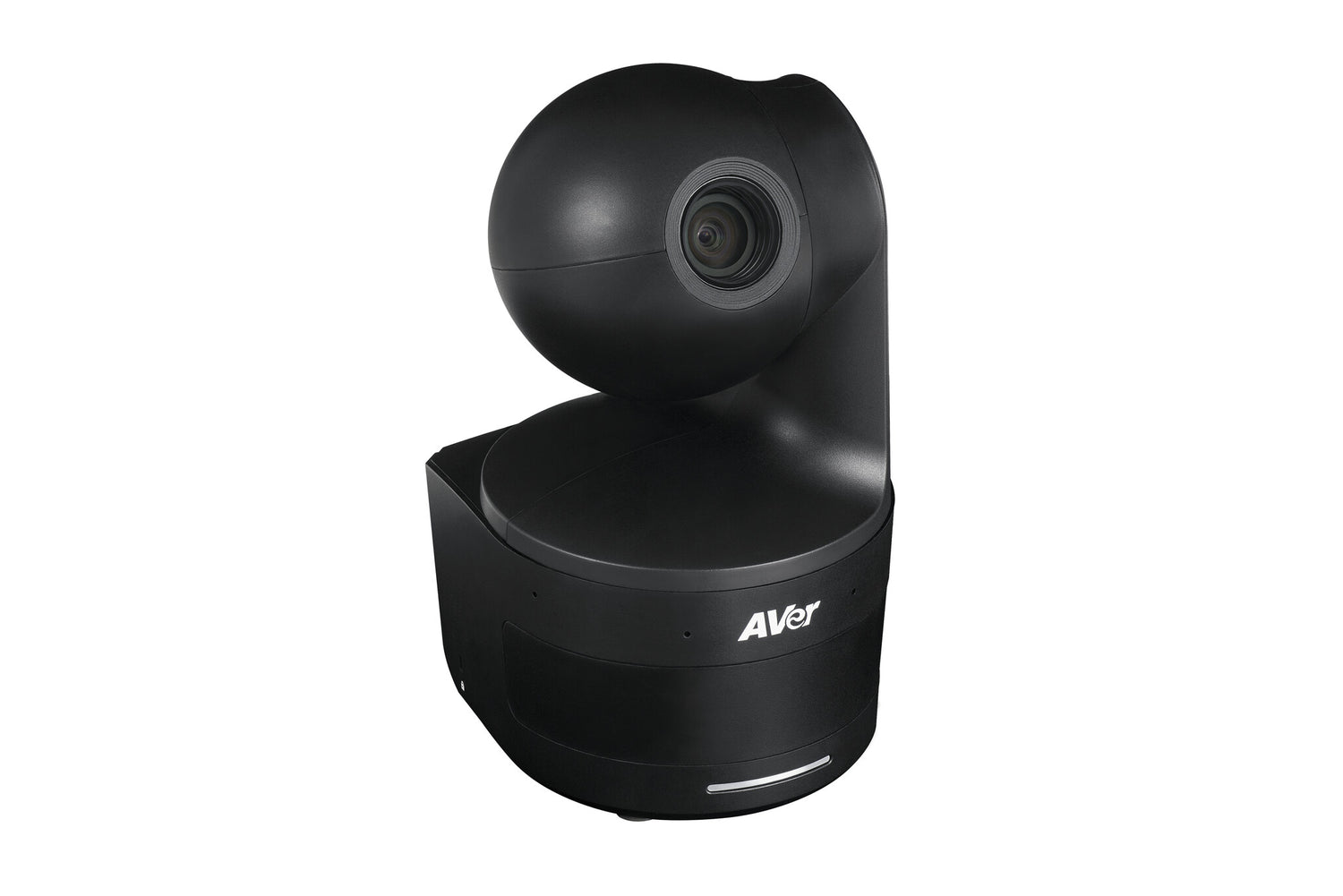

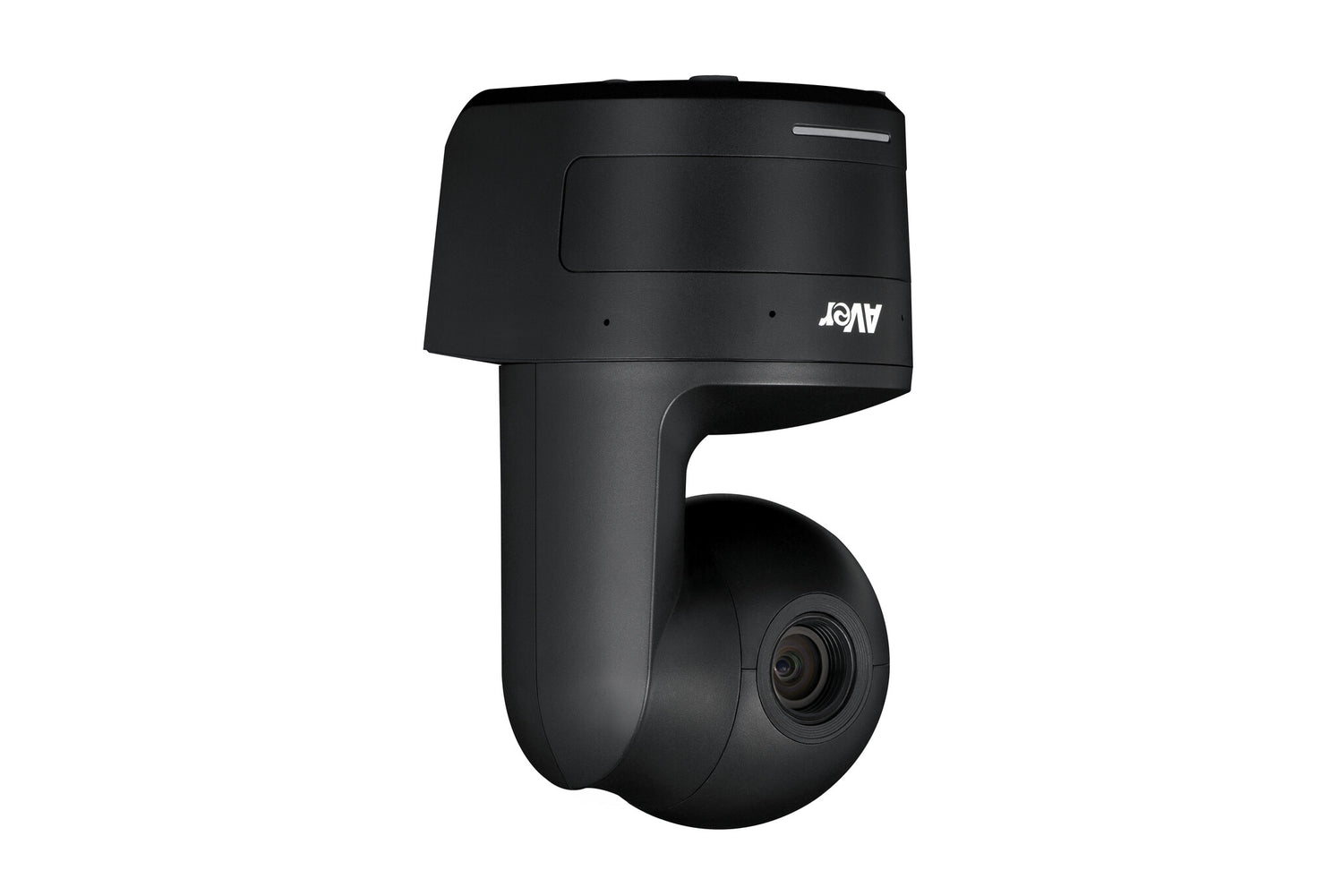

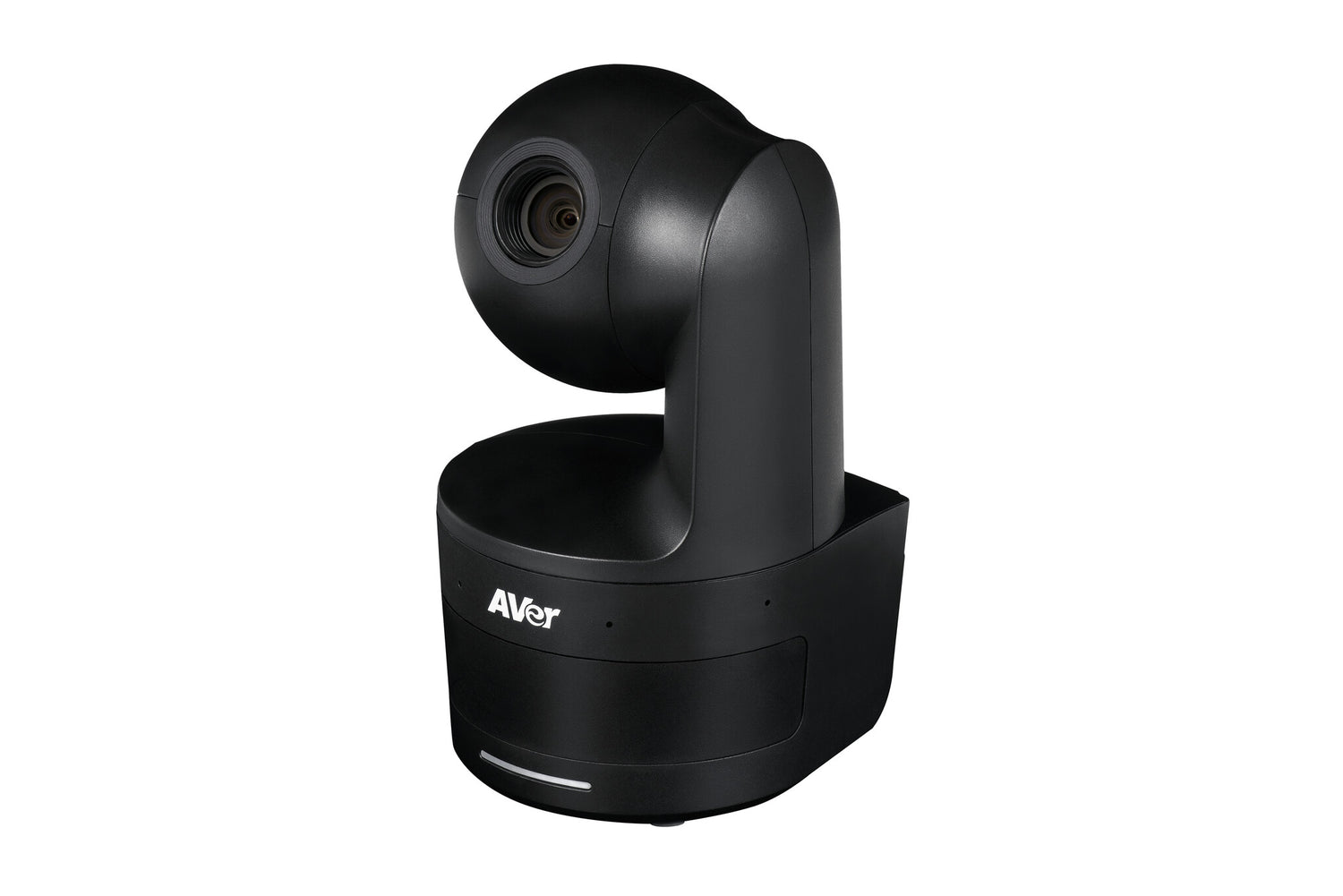

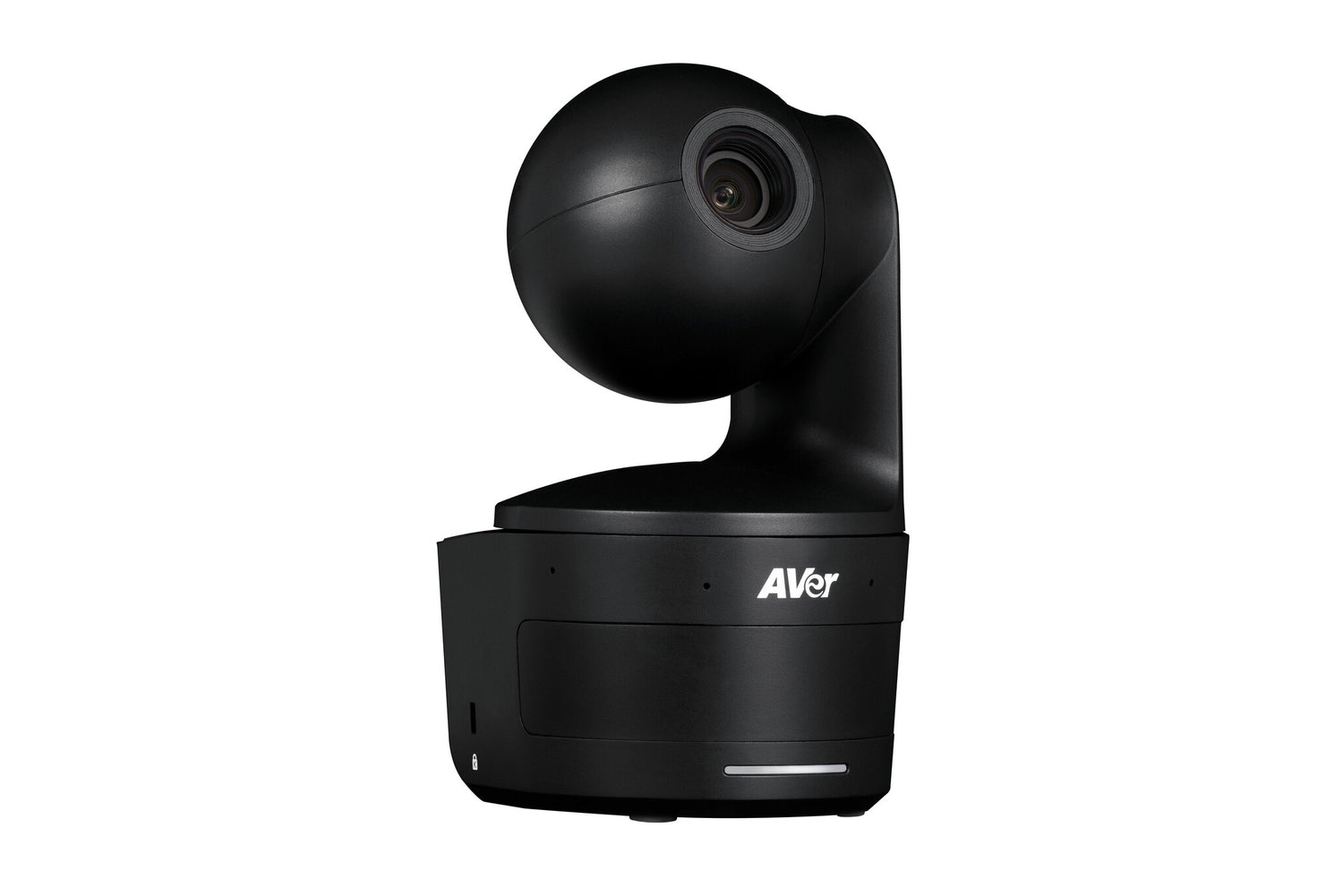

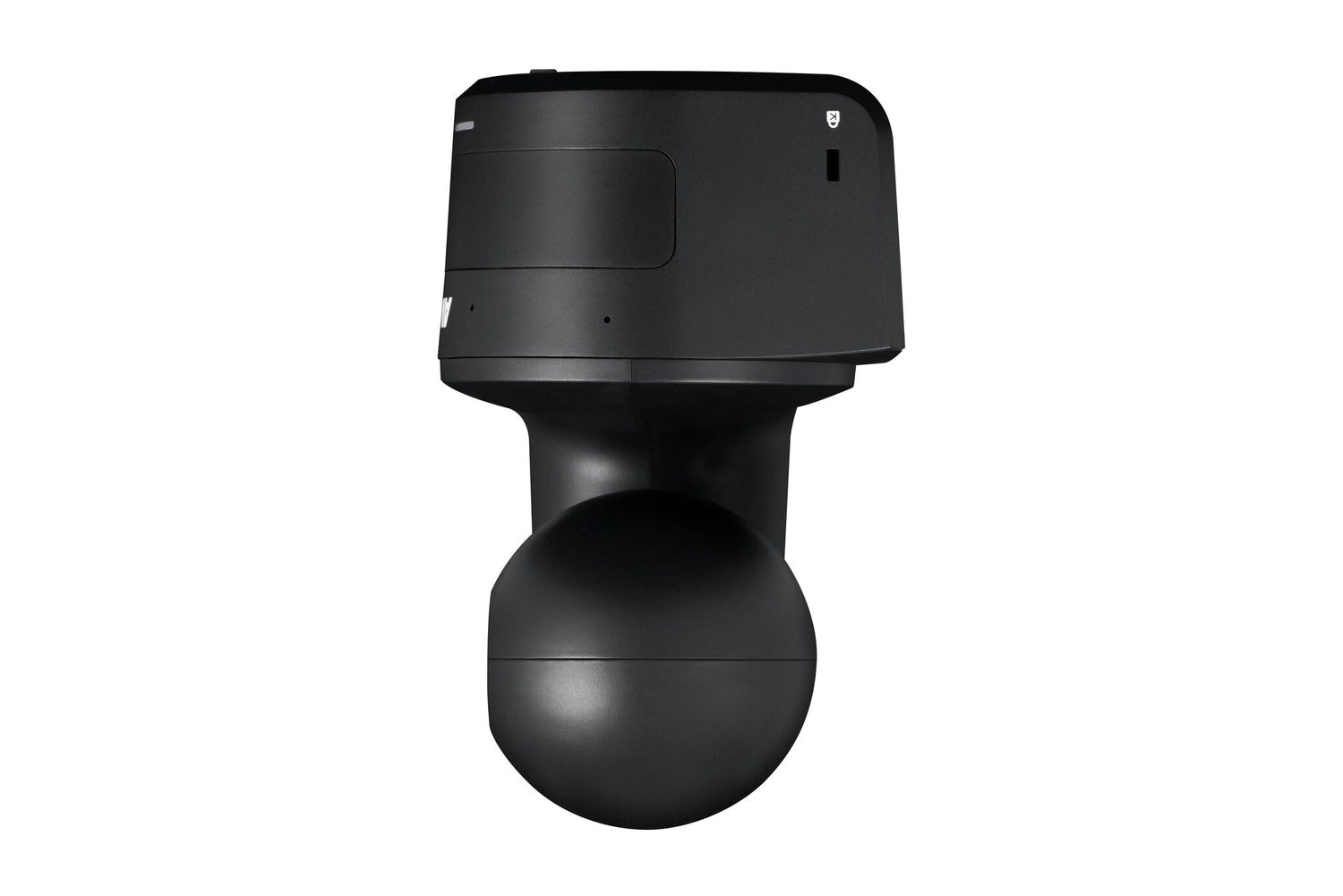

AVer DL10 2 MP Black 1920 x 1080 pixels 60 fps CMOS 25.4 / 2.8 mm (1 / 2.8")

AVerMedia  |  Varenummer: 61S9000000AD
Stregkode: 4719552127016

Beskrivelse

2 MPix, 1/2.8" 1080p Low Lux CMOS, 1080p/60, 0.5 Lux (IRE50, F2.0, 30fps), USB 3.1 Gen 1 Type-B, 92.4x164x94.4 mm

DL10
Distance Learning Tracking Camera
Track Further, Learn Bigger


Distance Learning Tracking Camera
Equipped with high portability and a lightweight design, any educator can use the DL10 to directly connect to his/her laptop via USB port to start distance teaching anywhere. Featuring a Full HD 1080p resolution and a 2 megapixels camera, the DL10 delivers premium image quality. Through the DL10’s three AI auto tracking modes and intuitive gesture control, teachers can easily setup different modes to create perfect classes. Thanks to the built-in noise suppression microphones, the DL10 actively detects the teacher’s speech and eliminates intrusive background noises. After class, teachers can truly switch off with DL10 Sleep Mode functionality, where it automatically turns itself off when online class is dismissed.

Light-Weight & Portable
The DL10 weighs only 745g, giving teachers freedom to take work anywhere - just place the DL10 directly on the desk or on the included tripod. USB plug-and-play functionality allows teachers to start distance teaching anytime, anywhere.

AI Auto Tracking
Equipped with industry leading AI auto-tracking algorithms, the DL10 can share the teacher’s every move with the students. The DL10’s AI does all the tracking work, without requiring any annoying add-on sensors or devices. Never worry about walking out of the frame or going out of focus again, remote students can see you on the screen wherever you go.

Balanced Zoom Ratio
With budget in mind for schools, the DL10 is the perfect solution: 3X optical zoom delivers clear details, and 6X total zoom ratio is perfect for online or hybrid teaching in any standard K-12 classroom or at home.

Noise Suppression Microphones
The DL10’s built in advanced noise suppression technology detects the teacher’s speech while decreasing environmental noises such as keyboards, mouses, and books, delivers clearer sound quality for an excellent audio visual experience.

Sleep Mode for Privacy
Simply turn off your laptop or the software when you finish teaching, and the DL10 will go to Sleep Mode and switch off all functionality within 10 seconds. When it’s time to start teaching again, the DL10 will resume right where you left off with tracking and other settings unchanged. The DL10 makes privacy protection the way it should be: easy.

Innovative Gesture Controls
Gesture control allows the teacher to use intuitive gestures to turn on and off tracking, adjust shooting angles for bodies, etc. without touching the screen or using the keyboard, mouse, or remote control.

Specifikationer

Camera
PTZ control Yes
Closest focusing distance 0.5 m
Aperture range (F-F) 2 - 3.7
Minimum illumination 0.5 lx
Field of view (wide) 82°
Field of view (tele) 51°
Focal length range 3.3 - 9.7 mm
Field of view (FOV) angle 90°
Combined zoom 6x
Digital zoom 2x
Optical zoom 3x
Optical sensor size 25.4 / 2.8 mm (1 / 2.8")
Sensor type CMOS
Camera type Single camera
Megapixel (approx.) 2 MP
Video
Supported graphics resolutions 1920 x 1080 (HD 1080)
Video formats supported H.264, M-JPEG
Supported video modes 1080p
Resolution at capture speed 1920x1080@60fps
HD type Full HD
Maximum frame rate 60 fps
Maximum video resolution 1920 x 1080 pixels
Design
Country of origin Taiwan
Pan preset speed 200 °/sec
Tilt preset speed 200 °/sec
Pan range -170 - 170°
Tilt angle range -90 - 90°
Mounting type Stand
Product colour Black

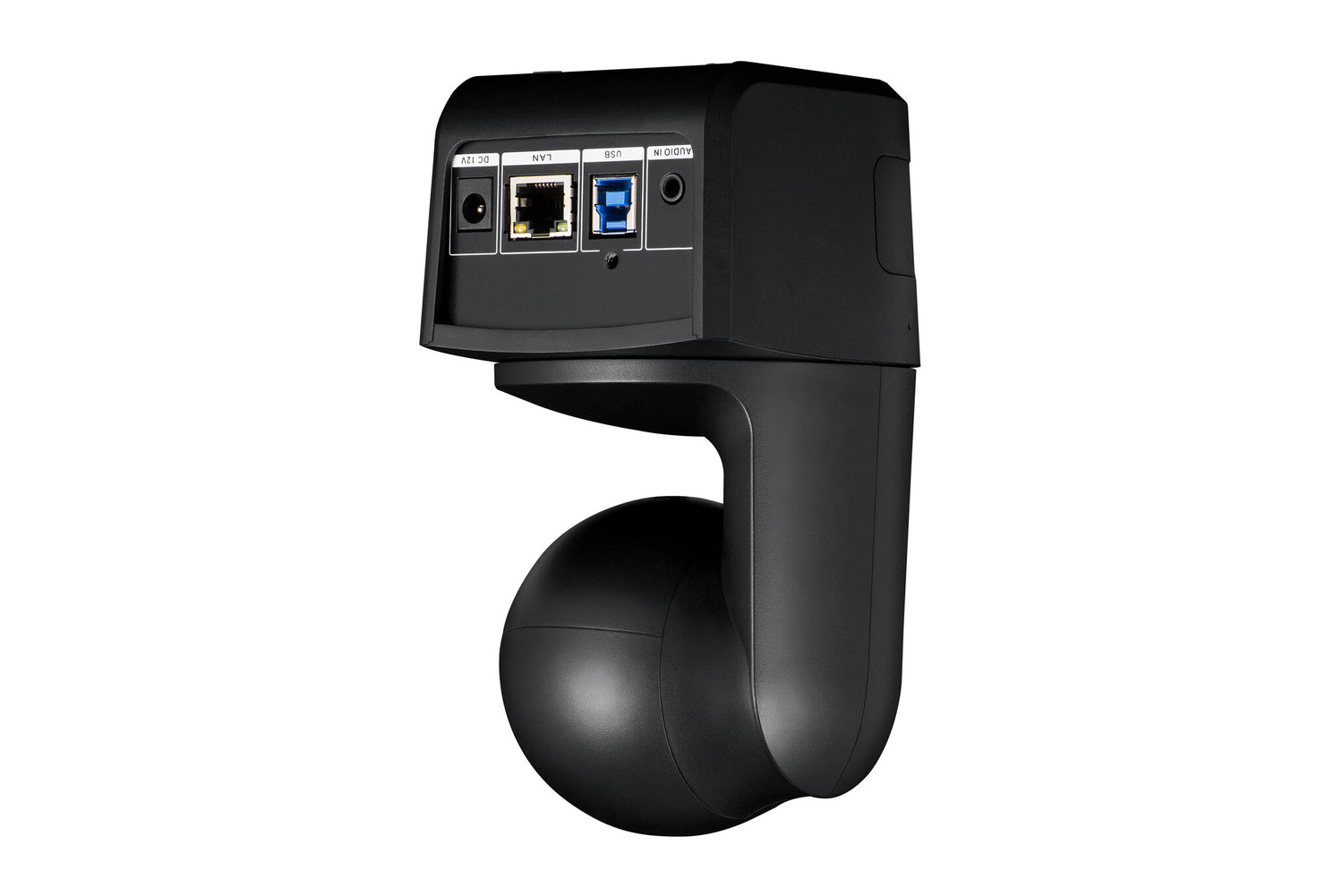

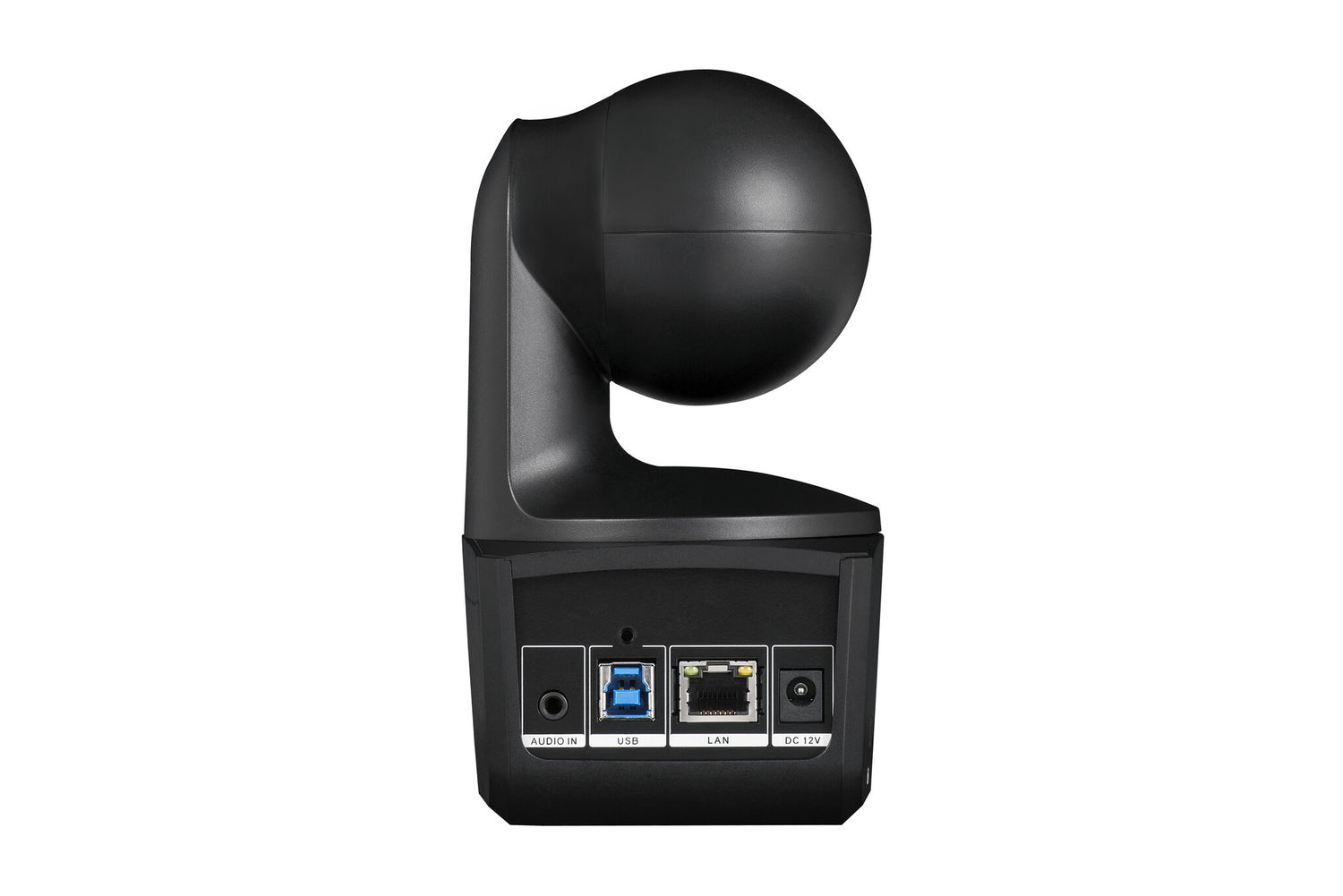

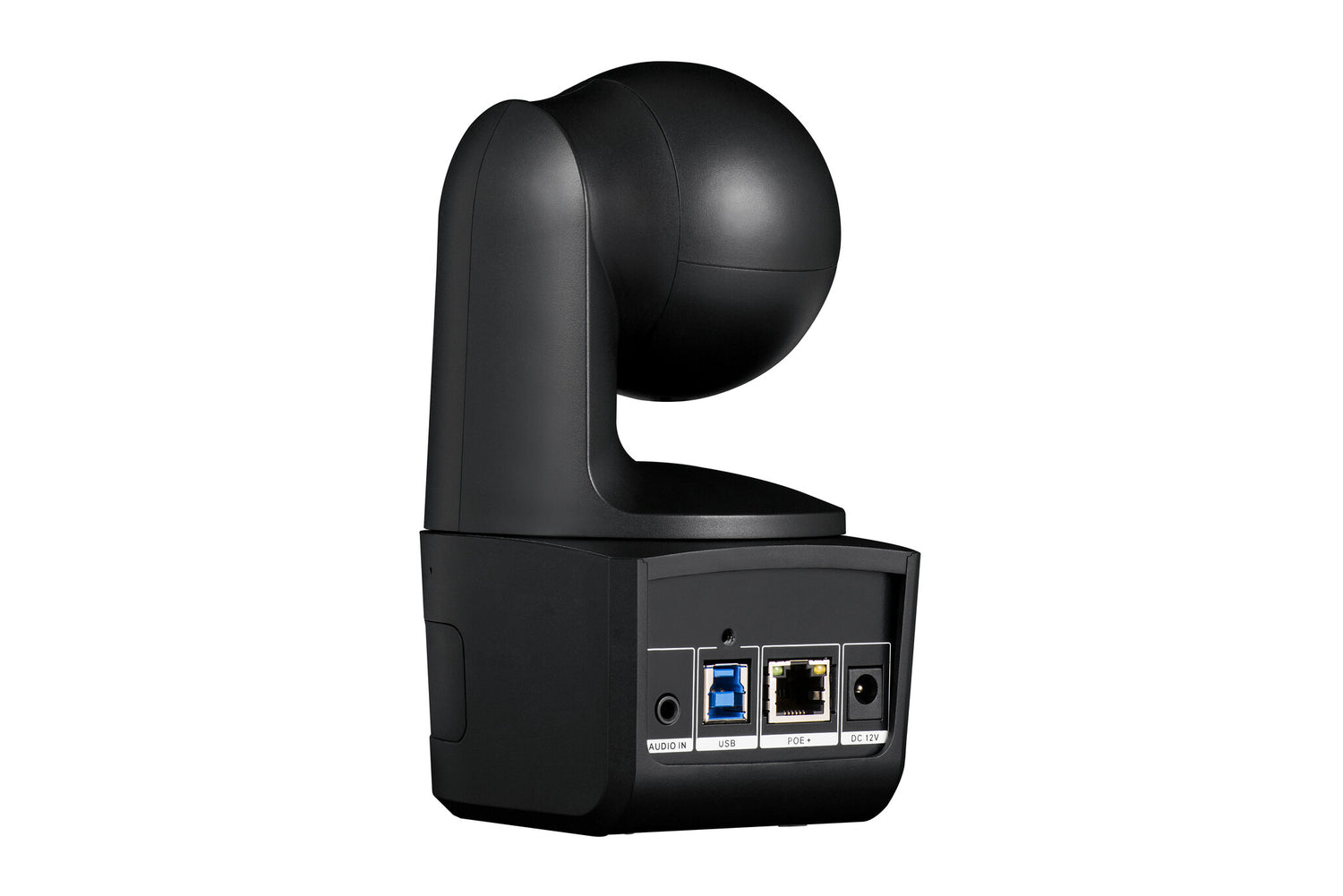

Ports & interfaces
Line-in Yes
DC-in jack Yes
Ethernet LAN (RJ-45) ports 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity 1
Power
Power consumption (typical) 11 W
Input current 2 A
DC input voltage 12 V
AC input frequency 100 - 240 Hz
Power source type DC
Operational conditions
Storage relative humidity (H-H) 20 - 95%
Operating relative humidity (H-H) 20 - 80%
Storage temperature (T-T) -20 - 60 °C
Operating temperature (T-T) 0 - 40 °C
Logistics data
Products per master (outer) case 2 pc(s)
Products per pallet 84 pc(s)
Harmonized System (HS) code 8517691000
Network
Network configuration DHCP, IP Address, Gateway, Subnet Mask, DNS
Audio
Audio channels 2
Audio codecs AAC-LC (48, 32, 16, 8K), PCM (48K)
Supported sample rates 48 kHz
Microphone pick-up range 5 m
Microphone sensitivity -33 dB
Number of microphones 2
Built-in microphone Yes
Packaging content
Mounting kit Yes
Cable ties included Yes
Number of cable ties 4
AC adapter included Yes
Quick start guide Yes
Number of screws 3
Screws included Yes
Cables included USB
Remote control included Yes
Weight & dimensions
Weight 745 g
Height 241 mm
Depth 231 mm
Width 238 mm
Packaging data
Package weight 2.57 kg
Package height 280 mm
Package depth 263 mm
Package width 485 mm
