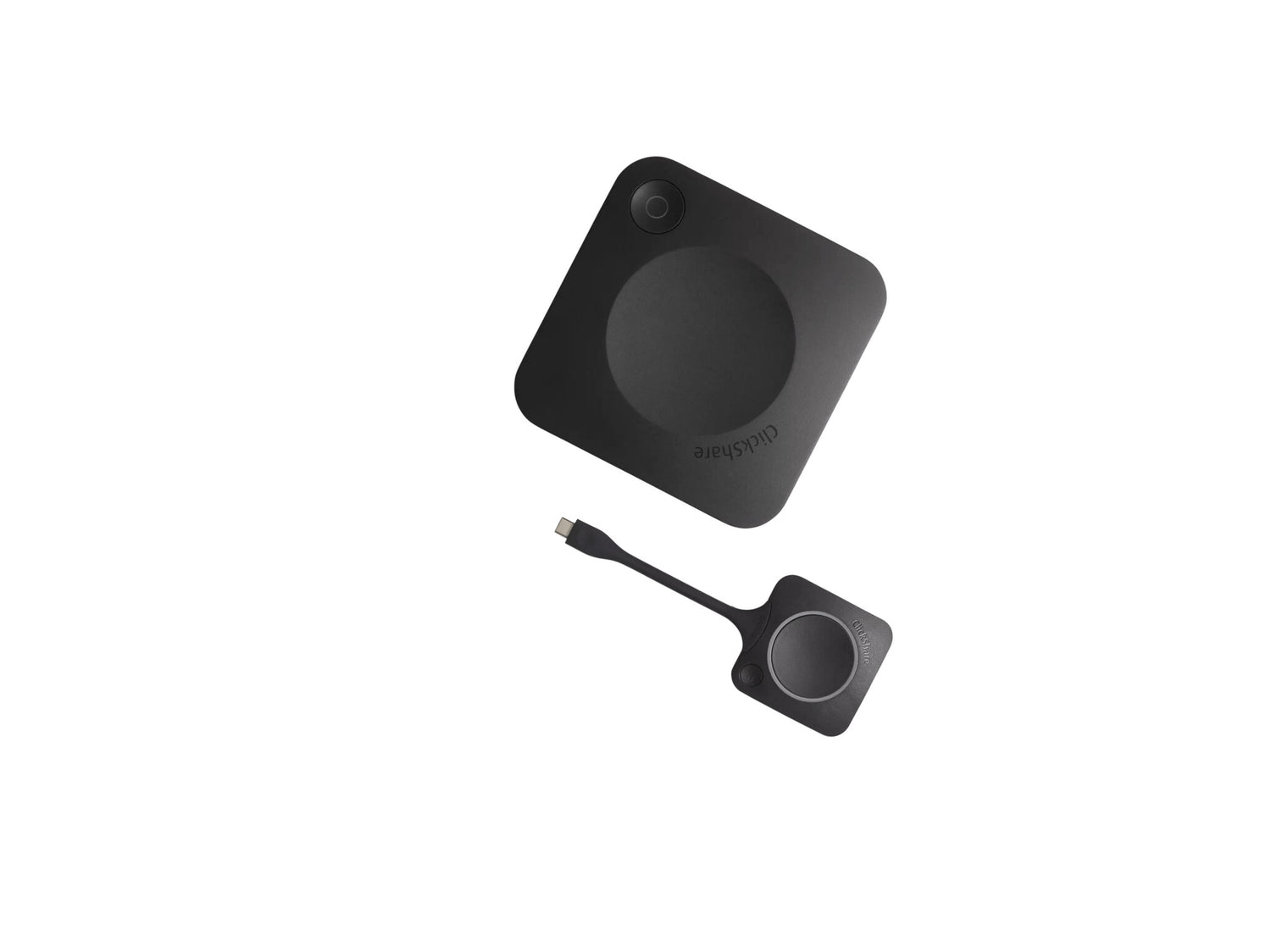

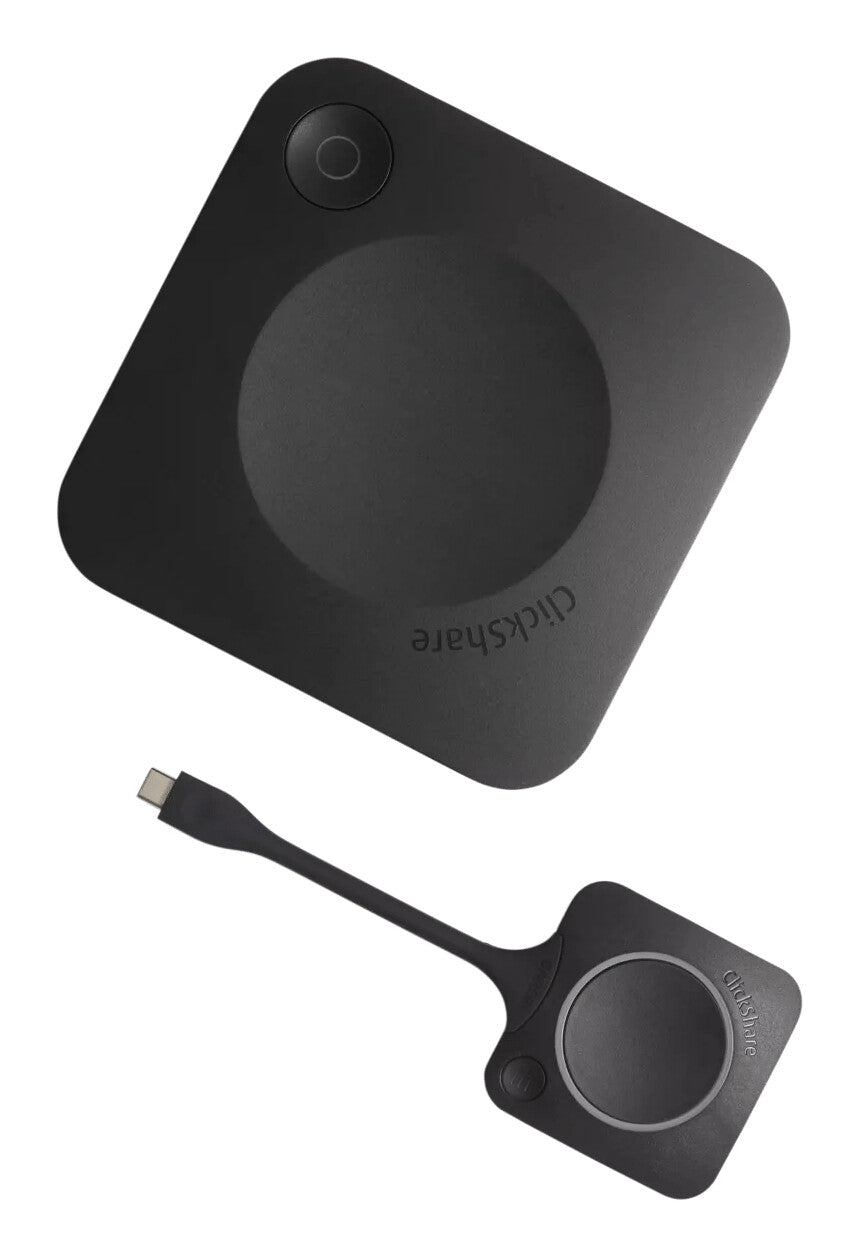

ClickShare C‑10, 1x USB-A, 1x USB-C, HDMI, WPA2-PSK or IEEE 802.1X, LAN, 24W, 110 - 220 V
Interactive wireless presentation for any meeting space
ClickShare C-10 brings interactive wireless presentation to any meeting space. Content sharing is simple, with just one click on the ClickShare Button (Windows or Mac) or the ClickShare App (laptop, mobile or tablet). Start presenting within seconds: no cables, no software to download, no training needed.
| Design |
|---|
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| LED indicators |
Yes |
| Product colour |
Black |
| Form factor |
Desktop |
| Features |
|---|
| Smartphone/tablet remote support |
Yes |
| Number of users |
32 user(s) |
| Miracast |
Yes |
| Google Cast |
Yes |
| Maximum frame rate |
30 fps |
| AirPlay mirroring |
Yes |
| Supported video modes |
2160p |
| Supported graphics resolutions |
3840 x 2160 |
| Management features |
|---|
| On/off switch |
Yes |
| Web-based management |
Yes |
| Network |
|---|
| Maximum operating distance |
30 m |
| Security algorithms |
802.1x RADIUS, WPA2-PSK |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11g, IEEE 802.11n, IEEE 802.15.1 |
| Ethernet LAN |
Yes |
| Dual-band |
Yes |
| Frequency band |
2.4, 5 GHz |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| Wi-Fi standards |
802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |

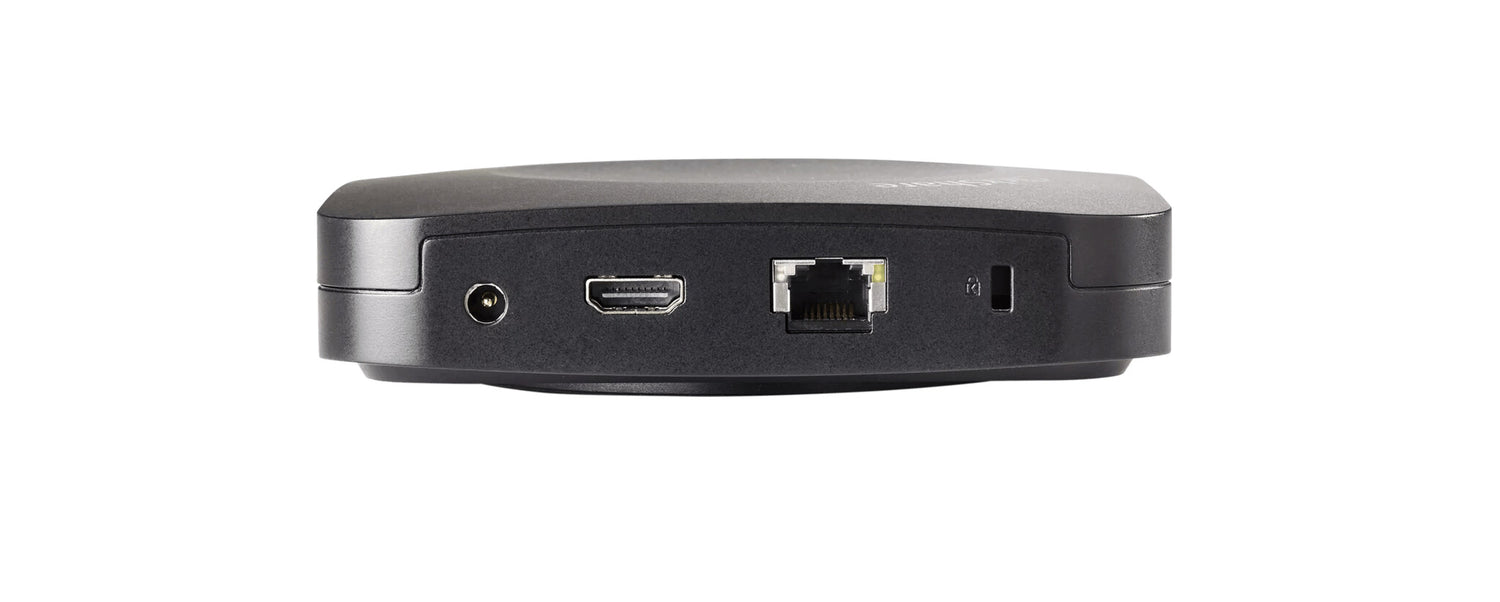

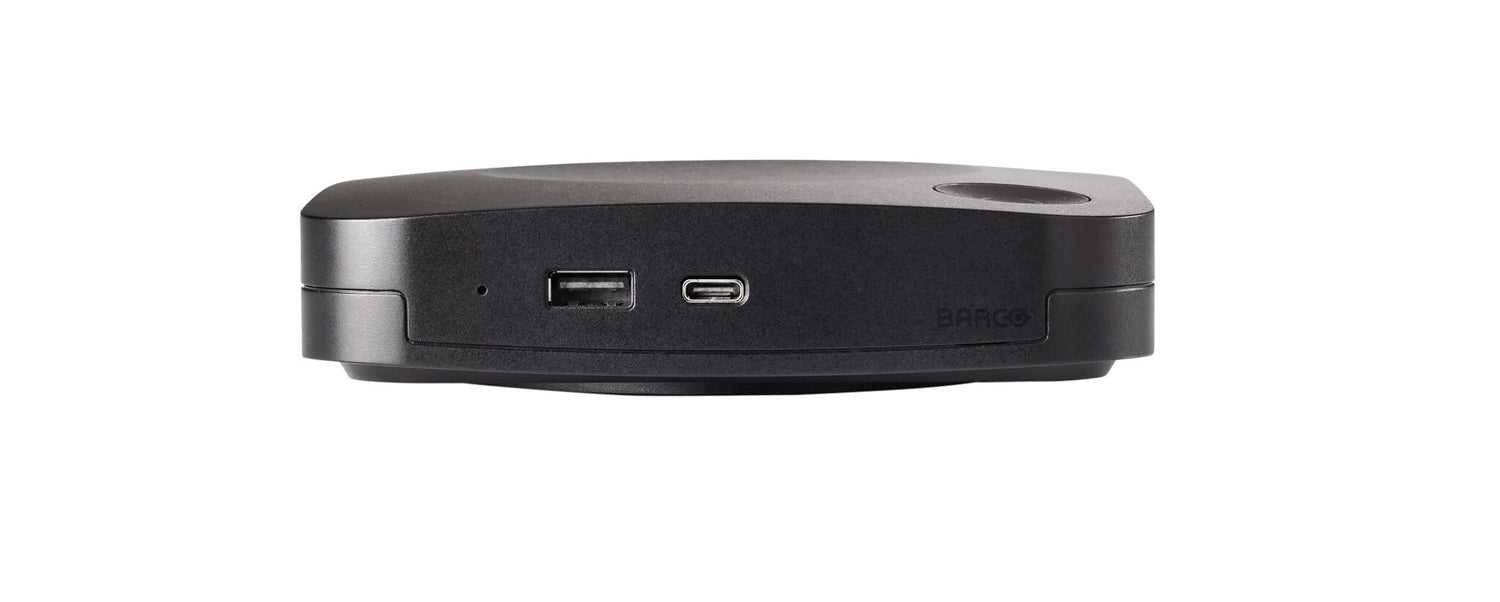

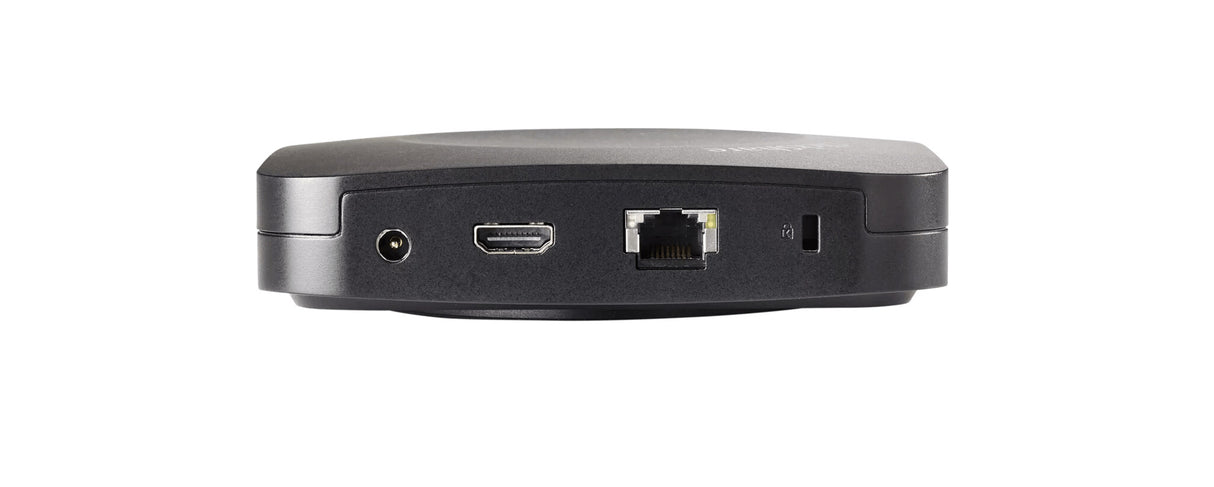

| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI version |
1.4b |
| Number of HDMI outputs |
1 |
| Interface |
HDMI |
| Power |
|---|
| Power consumption (max) |
24 W |
| Input voltage |
110 - 220 V |
| Power source type |
DC |
| System requirements |
|---|
| Mobile operating systems supported |
Android 10.0, Android 11.0, Android 12.0, Android 13.0, Android 14.0, Android 9.0, iOS 12, iOS 13, iOS 13.4, iOS 14, iOS 14.5, iOS 15, iOS 16 |
| Mac operating systems supported |
Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia |
| Mac compatibility |
Yes |
| Windows operating systems supported |
Windows 11 Enterprise x64, Windows 10, Windows 11 Home, Windows 10 Education, Windows 11 Pro, Windows 10 Education x64, Windows 11 x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
0 - 90% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 85% |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
900 g |
| Height |
34 mm |
| Depth |
135 mm |
| Width |
135 mm |
| Packaging content |
|---|
| Remote control included |
Yes |
| Technical details |
|---|
| Warranty period |
1 year(s) |
