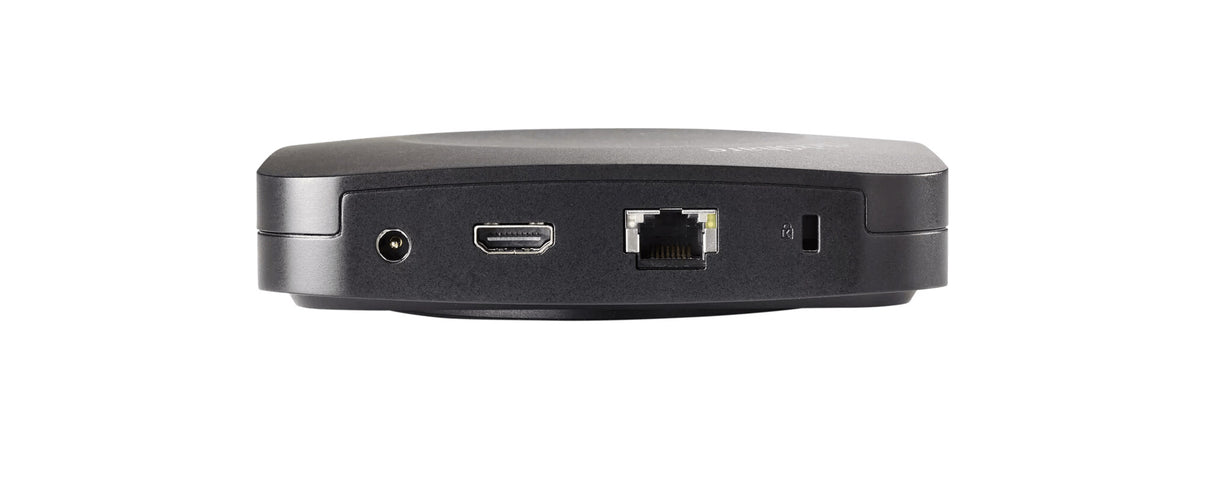

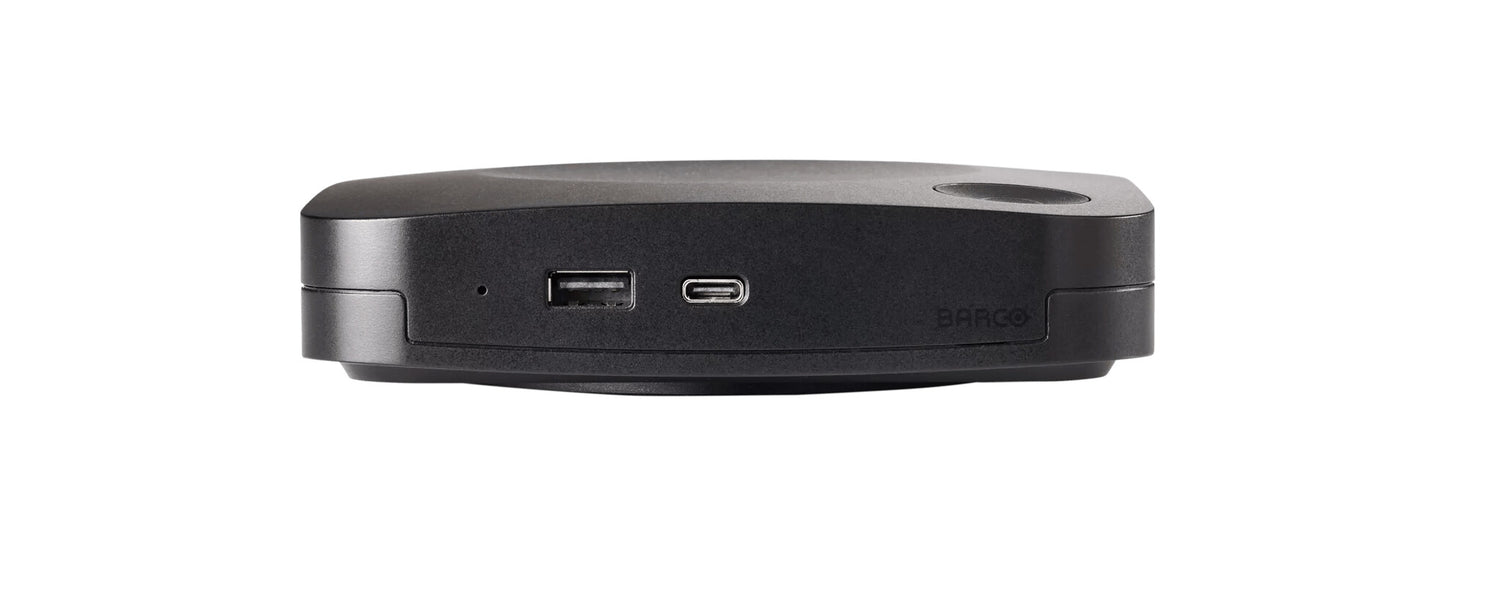

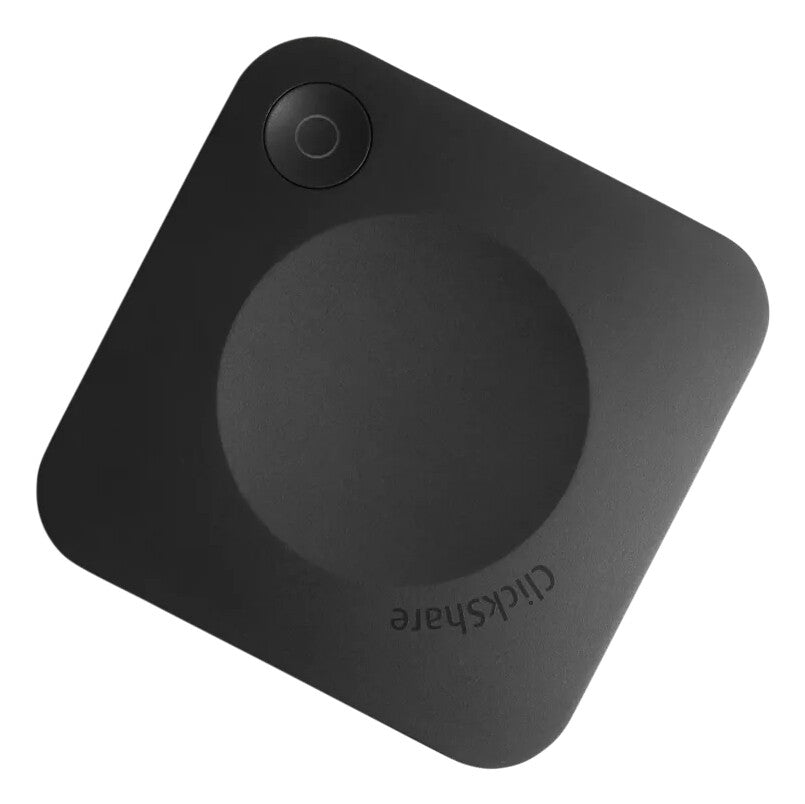

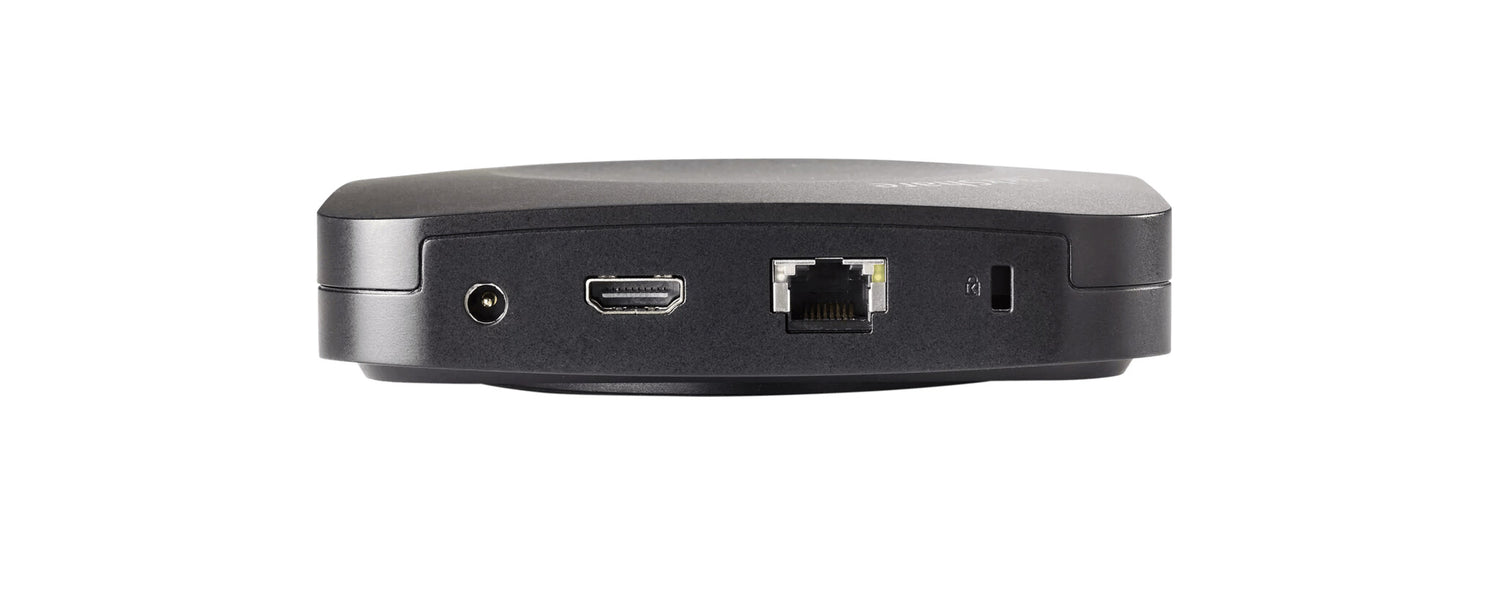

ClickShare C-5 Gen2 - EU version, 4K, UHD, 30 fps, Wi-Fi, 2.4 / 5 Ghz, LAN, HDMI, Windows, Android, iOS
Simple, one-click wireless presentation for huddle spaces
The ClickShare C-5 brings simple, wireless collaboration to small meeting rooms and huddle spaces. You and your guests can easily share content to the room display, with just one click in the ClickShare App, from any laptop or mobile device. It offers a full BYOD experience, including screen mirroring with Airplay, GoogleCast and Miracast.
| Design |
|---|
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| LED indicators |
Yes |
| Product colour |
Black |
| Form factor |
Dongle |
| Features |
|---|
| Smartphone/tablet remote support |
Yes |
| Number of simultaneously connected devices (max) |
32 |
| Miracast |
Yes |
| Google Cast |
Yes |
| Maximum frame rate |
30 fps |
| AirPlay mirroring |
Yes |
| Supported video modes |
2160p |
| Maximum resolution (HDMI) |
3840 x 2160 pixels |
| Management features |
|---|
| On/off switch |
Yes |
| Web-based management |
Yes |
| Network |
|---|
| Maximum operating distance |
30 m |
| Security algorithms |
802.1x RADIUS, WPA2-PSK |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11g, IEEE 802.11n, IEEE 802.15.1 |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet LAN |
Yes |
| Dual-band |
Yes |
| Frequency band |
2.4, 5 GHz |
| Top Wi-Fi standard |
Wi-Fi 5 (802.11ac) |
| Wi-Fi standards |
802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Ports & interfaces |
|---|
| DC-in jack |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI version |
1.4b |
| Number of HDMI outputs |
1 |
| Interface |
HDMI |
| Power |
|---|
| Power consumption (typical) |
10 W |
| Power consumption (max) |
24 W |
| Input voltage |
110 - 220 V |
| Power source type |
AC, USB |
| System requirements |
|---|
| Mobile operating systems supported |
Android 10.0, Android 11.0, Android 12.0, Android 13.0, Android 14.0, Android 9.0, iOS 12, iOS 13, iOS 13.4, iOS 14, iOS 14.5, iOS 15, iOS 16 |
| Mac operating systems supported |
Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia |
| Mac compatibility |
Yes |
| Windows operating systems supported |
Windows 11 Enterprise x64, Windows 10, Windows 11 Home, Windows 10 Education, Windows 11 Pro, Windows 10 Education x64, Windows 11 x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise |
| Operational conditions |
|---|
| Storage relative humidity (H-H) |
0 - 90% |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 85% |
| Operating temperature (T-T) |
0 - 40 °C |
| Weight & dimensions |
|---|
| Weight |
900 g |
| Height |
34 mm |
| Depth |
135 mm |
| Width |
135 mm |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Technical details |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC) |
