Barco ClickShare CX-50 wireless presentation system HDMI Desktop
Barco | Varenummer:
R9861522EU
Beskrivelse
Beskrivelse

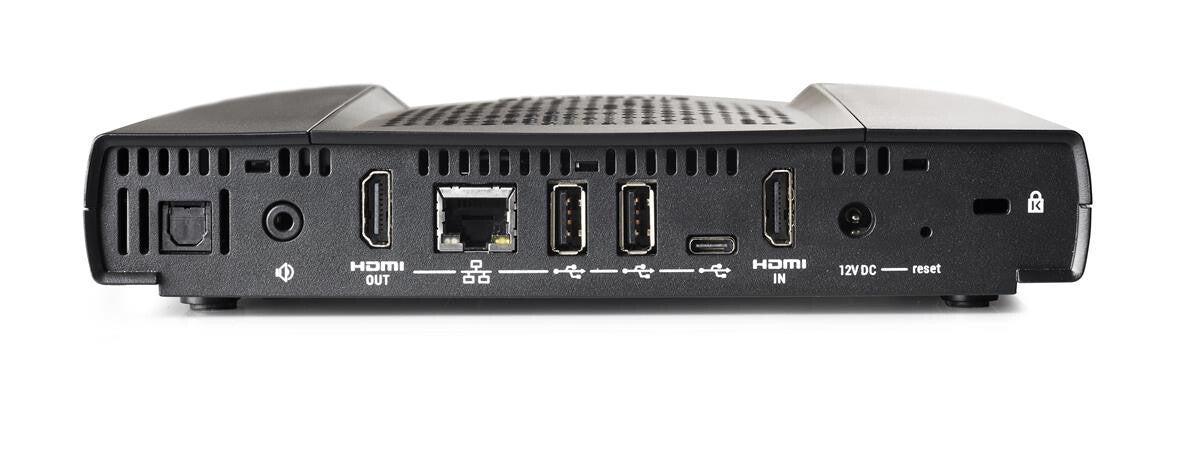

ClickShare CX-50, HDMI in, HDMI out, 3x USB-A, USB-C, S/PDIF, 3.5mm, Ethernet LAN 1Gbit, 802.11 a/g/n/ac, 900 g
High-end wireless conferencing for large meeting spaces and boardrooms
ClickShare CX-50 enables wireless conferencing in large meeting spaces and board rooms. When you walk into the meeting room, ClickShare automatically connects you to room devices like cameras, mics, speakers, sound bars and displays.
Start a meeting from your laptop within seconds, using your preferred video conferencing platform. Make hybrid meetings easy, with just one click on the ClickShare Button or the ClickShare App, both for employees and guests.
Specifikationer
Specifikationer
| Design | |
|---|---|
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Product colour | Black |
| Form factor | Desktop |
| Features | |
|---|---|
| Miracast | Yes |
| Google Cast | Yes |
| AirPlay mirroring | Yes |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 3840 x 2160 |
| Maximum resolution (HDMI) | 3840 x 2160 pixels |
| Network | |
|---|---|
| Maximum operating distance | 30 m |
| Security algorithms | WPA2-PSK |
| Networking standards | IEEE 802.1x |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Dual-band | Yes |
| Frequency band | 2.4, 5 GHz |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| 3.5 mm (1/8-inch) out | Yes |
| S/PDIF out port | Yes |
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 1.4b |
| Number of HDMI outputs | 1 |
| HDMI input ports quantity | 1 |
| Interface | HDMI |
| Power | |
|---|---|
| Suitable for use in country/location | Europe |
| Power consumption (standby) | 0.5 W |
| Power consumption (max) | 50 W |
| Input voltage | 110 - 220 V |
| Power source type | AC |
| System requirements | |
|---|---|
| Mobile operating systems supported | Android 11.0, Android 12.0, Android 13.0, Android 14.0, iOS 14, iOS 14.5, iOS 15, iOS 16 |
| Mac operating systems supported | Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia |
| Mac compatibility | Yes |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64 |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 900 g |
| Height | 39 mm |
| Depth | 202 mm |
| Width | 200 mm |
| Packaging content | |
|---|---|
| Quick start guide | Yes |
| Remote control included | Yes |
| Technical details | |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC) |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
