Apprimo TEC-X 1000

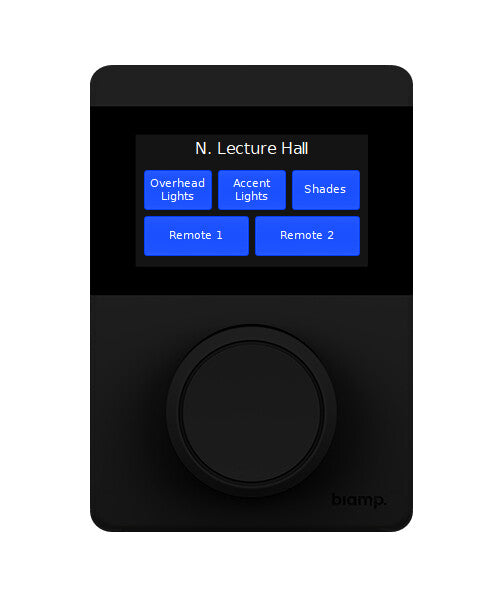

Distinguished by its modern design aesthetic, the Apprimo TEC-X family of AV control pads provide simple, intuitive interfaces for presentation spaces and conference rooms via highly intuitive capacitive touch capabilities, delivered at the price of a keypad controller. Equipped with an LCD and rotary knob, the TEC-X 1000 is PoE powered (IEEE 802.3at Class 3, 15W), wall-mountable, and daisy chainable, which greatly reduces cabling requirements and installation time. In addition, the TEC-X 1000 supports all TTP commands and can be quickly programmed and customized within Tesira software as the needs of the room change over time, making TEC-X a very flexible and cost effective control solution.
Specifikationer
Specifikationer
| Display | |
|---|---|
| Touchscreen technology | Capacitive |
| Display technology | LCD |
| Display diagonal | 7.37 cm (2.9") |
| Performance | |
|---|---|
| Product colour | Black |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Mounting type | Wall/Tabletop |
| Ports & interfaces | |
|---|---|
| RJ-45 ports quantity | 2 |
| Power | |
|---|---|
| Power consumption (max) | 2 W |
| Power source type | PoE |
| Weight & dimensions | |
|---|---|
| Weight | 159 g |
| Height | 130 mm |
| Depth | 13 mm |
| Width | 90 mm |
| Packaging data | |
|---|---|
| Package weight | 160 g |
| Package depth | 254 mm |
| Package width | 304.8 mm |
| Package height | 101.6 mm |
| Quantity per pack | 1 pc(s) |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| General | |
|---|---|
| Product family | Apprimo |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Other features | |
|---|---|
| Certification | UL, C-UL |
| Compliance certificates | RoHS, Federal Communications Commission (FCC), CE |
| Logistics data | |
|---|---|
| Country of origin | United States |
| Export Control Classification Number (ECCN) | EAR99 |
