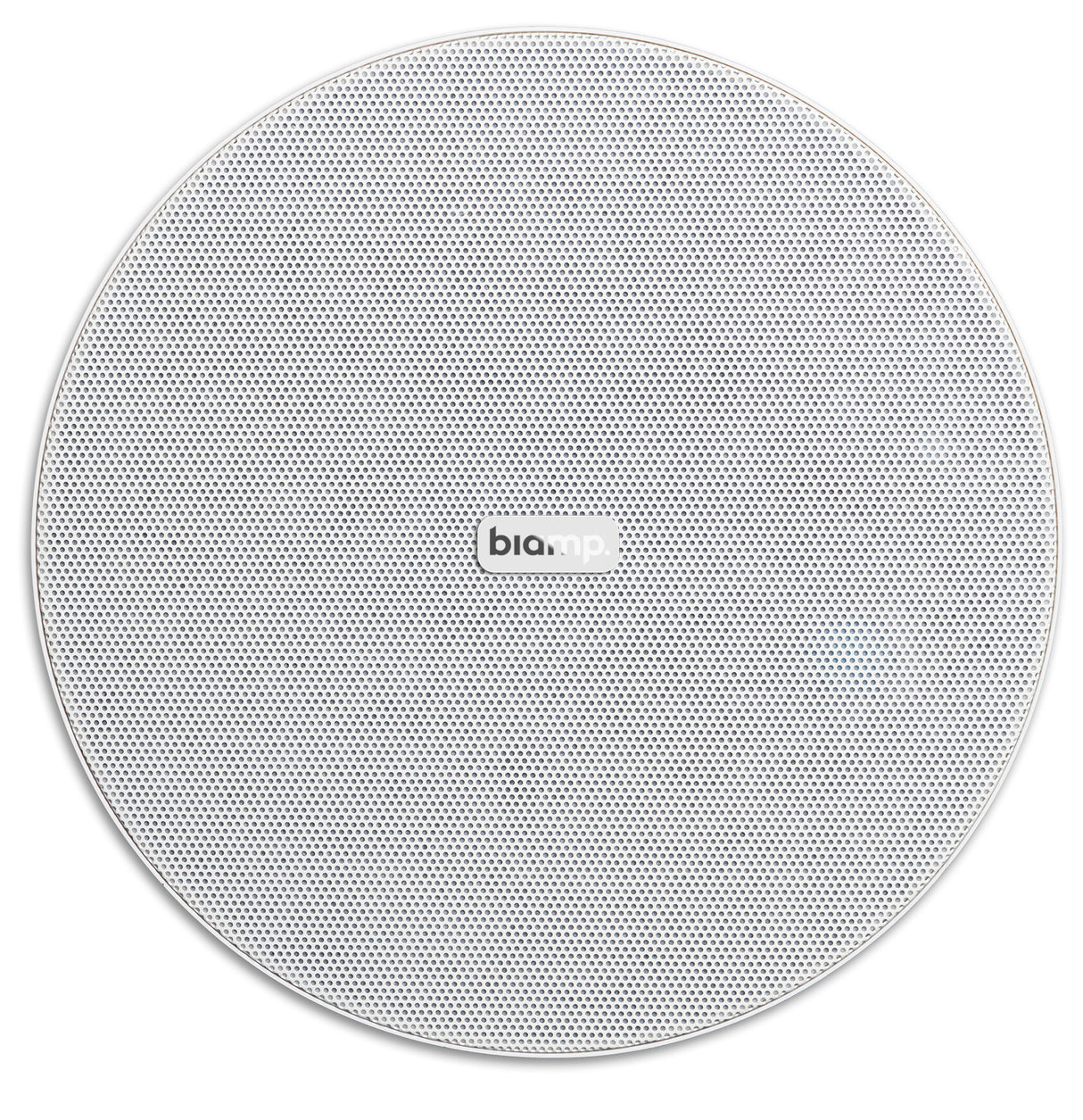

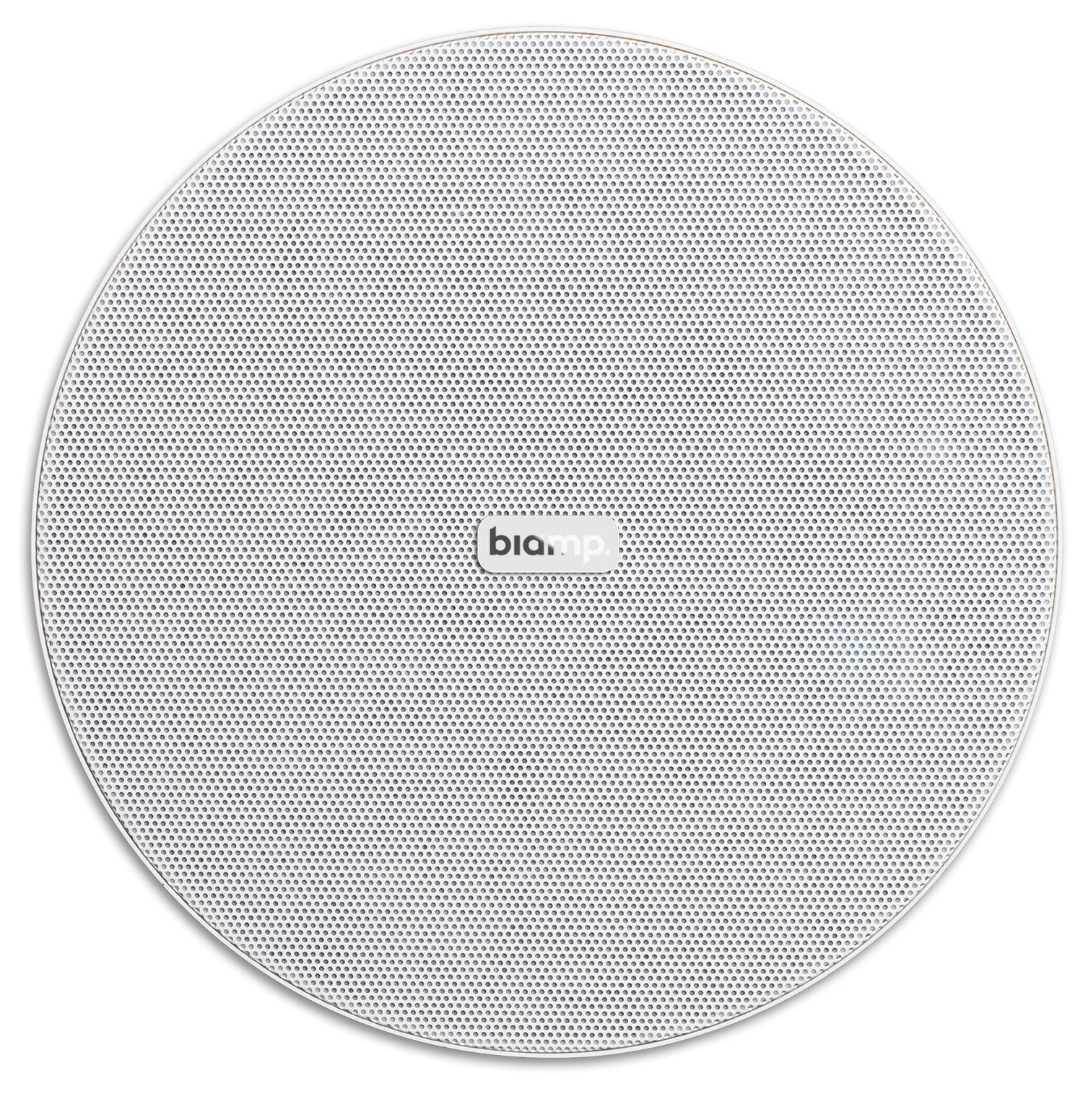

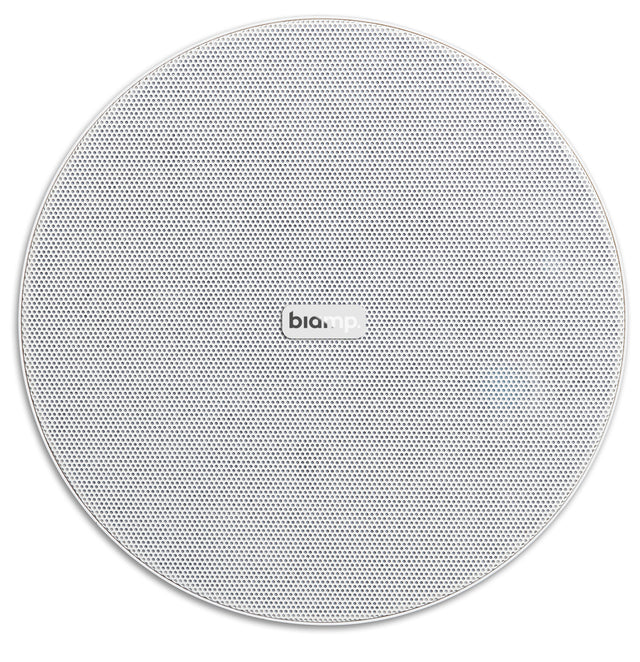

Biamp CM20DT 2-way White Wired 30 W
Biamp | Varenummer:
911.1541.900
Beskrivelse
Beskrivelse
Ceiling mount, 60 Hz - 20 kHz, 180°, 6.5", 1", Quick Fix, 205 x 80 mm, White
The CM20DT 6.5” two-way built-in loudspeaker can be used in 16 ohms or 70/100-volt modes. The high-quality 70/100-volt transformer is equipped with an easy tapping sticker with clear color indication. The transformer colors are aligned with the cables connecting the Quick Fit connector, a handy installer connector via push terminal. In 16 ohms use, you can connect up to 4 loudspeakers in parallel on each channel of a standard 4 ohms amplifier. The paintable thin edge grill makes CM20DT the ultimate loudspeaker for design interior integration.
Specifikationer
Specifikationer
| Loudspeakers | |
|---|---|
| Woofer diameter (imperial) | 16.5 cm (6.5") |
| Number of woofer drivers | 1 |
| Woofer | Yes |
| Tweeter diameter | 1 mm |
| Number of tweeter drivers | 1 |
| Tweeter | Yes |
| Driver diaphragm material | Polypropylene |
| Number of drivers | 2 |
| Speaker placement | Ceiling-mountable |
| Speaker type | 2-way |
| Audio | |
|---|---|
| Sound pressure level (max) | 104 dB |
| Sensitivity | 86 dB |
| Impedance | 16 Ω |
| Frequency range | 60 - 20000 Hz |
| Peak Music Power Output (PMPO) | 120 W |
| RMS rated power | 30 W |
| Performance | |
|---|---|
| International Protection (IP) code | IP50 |
| Housing material | Acrylonitrile butadiene styrene (ABS), Aluminium |
| Recommended usage | Conferencing system |
| Product colour | White |
| Amplifier | |
|---|---|
| Amplifier | No |
| Ports & interfaces | |
|---|---|
| Bluetooth | No |
| Connectivity technology | Wired |
| Power | |
|---|---|
| Power source type | DC |
| Packaging data | |
|---|---|
| Package weight | 1.81 kg |
| Package height | 238 mm |
| Package depth | 109 mm |
| Package width | 238 mm |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Logistics data | |
|---|---|
| Export Control Classification Number (ECCN) | EAR99 |
| Harmonized System (HS) code | 8518220000 |
| Other features | |
|---|---|
| Country of origin | China |
