Biamp Commercial Audio ALINP Rotary volume control

Biamp  |  Varenummer: 911.1521.900
Stregkode: 5420035203880

Beskrivelse

Active local input panel, White

In lots of applications a local input control can be a useful and above all a timesaving product. No complex devices with multiple buttons to control -- just plug in and control the volume, nothing more, nothing less!

Especially in rooms where very often a music source or microphone is used, the ALINP plays its role. Think of classrooms where each hour a different teacher uses the classroom and wants to plug in his laptop or meeting rooms where presentations are given on a regular basis. What about multi-function rooms, bars, restaurants or banquet rooms? With the ALINP you can connect your device in a blink of an eye!

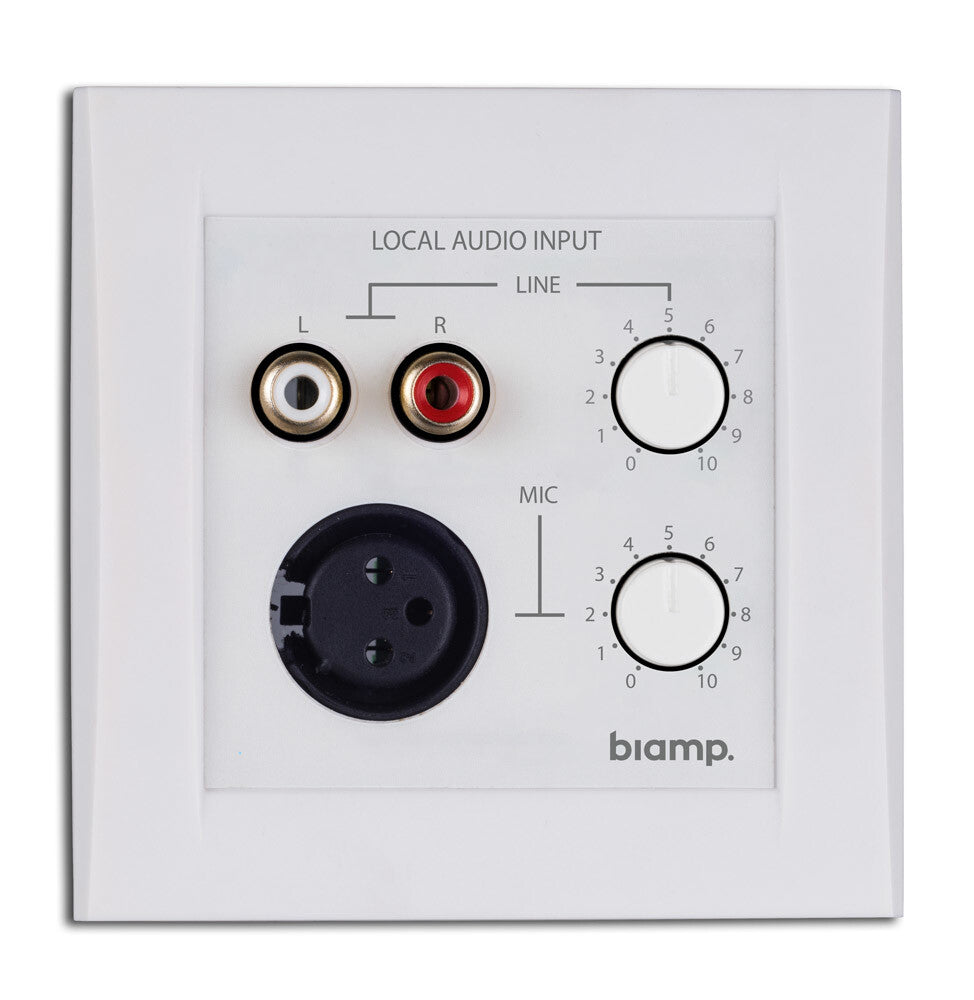

The ALINP is a local input wall control panel that makes it possible to connect a music source and/or dynamic microphone. The connected music source (via stereo line-in summed to mono internally) and microphone (via XLR-input) have individual volume control. The built-in mic pre-amplifier and high-quality input transformer (to avoid ground loops) guarantees an exceptional audio quality. The line and microphone input are automatically mixed together so that only one input at your pre-amplifier or mixing amplifier is used. The XLR microphone input is not providing phantom power.

Specifikationer

Features
Country of origin China
Product colour White
Mounting type Wall-mounted
Type Rotary volume control
Performance
Signal-to-Noise Ratio (SNR) 86 dB
Input impedance 8500 Ω
Frequency range 50 - 20000 Hz
Display
Built-in display No
Ports & interfaces
3.5 mm (1/8-inch) in Yes
General
Product family Commercial Audio
Logistics data
Export Control Classification Number (ECCN) EAR99
Weight & dimensions
Weight 110 g
Height 83 mm
Depth 45 mm
Width 93 mm
Packaging data
Package weight 150 g
Package height 97 mm
Package depth 86.1 mm
Package width 75.9 mm
Packaging content
Quantity per pack 1 pc(s)

Download

PDF download:
