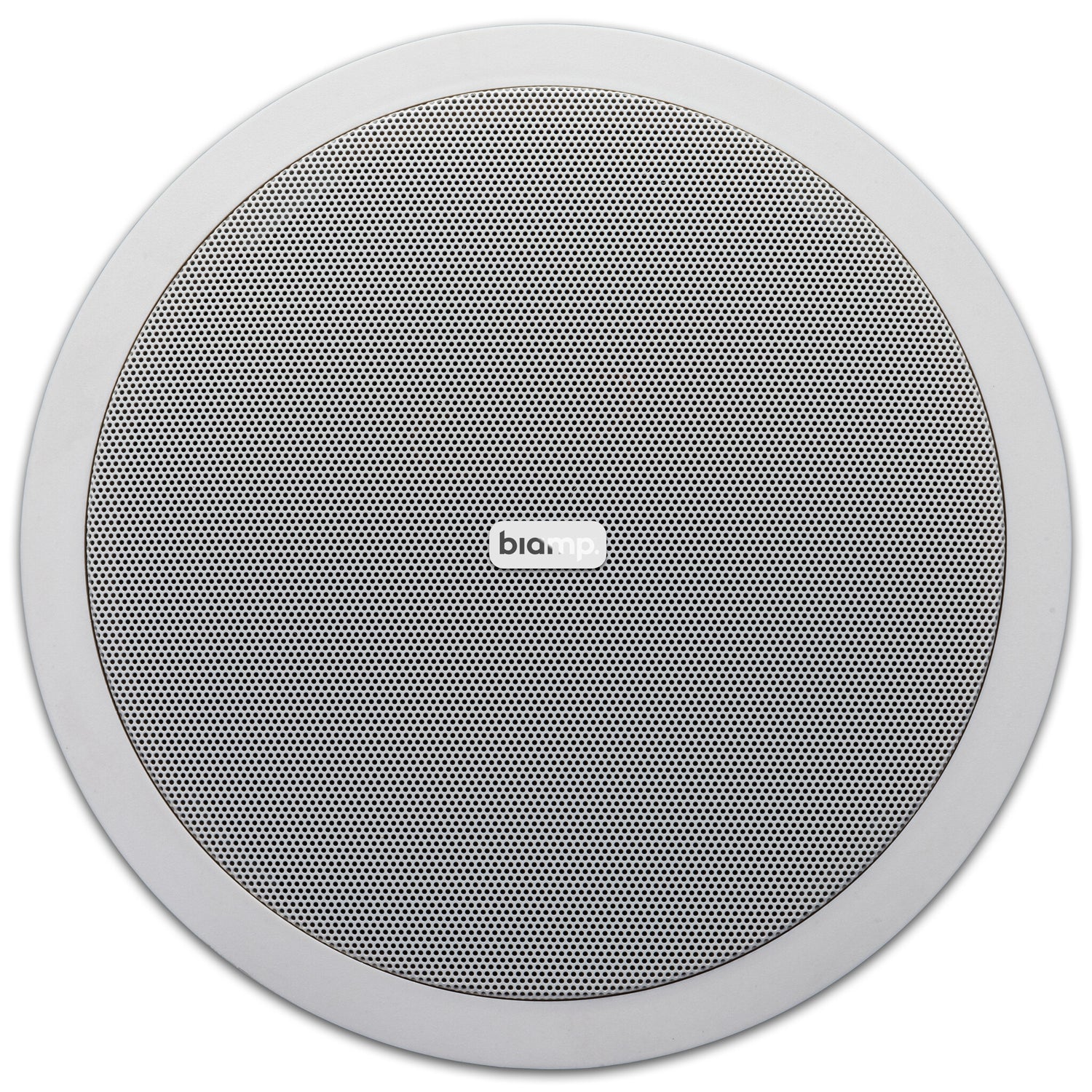

Biamp Commercial Audio CMX20T 2-way White Wired 50 W

Biamp  |  Varenummer: 911.1585.900
Stregkode: 5420035210222

Beskrivelse

50 W, 2-Way, 8", 50 - 20000 Hz, IP54

CMX20T two-way built-in loudspeaker produces a warm and deep sound ideal for speech and music. The CMX20T loudspeaker has an 8” enforced polypropylene woofer and 1” tweeter. Due to this enforced woofer, the loudspeaker has a very low distortion. It makes the CMX20T very suitable for the distribution of microphone calls and background music at a higher volume level.

The housing is made of high-quality ABS. The woofer is made of enforced polypropylene with a rubber edge, making it moisture-proof. The aluminum grill makes CMX20T humidity proof and suitable for use in bathrooms and kitchens.

In 16 ohms use, you can connect up to 4 loudspeakers in parallel on each channel of a standard 4 ohms amplifier. For 100-volt use, the CMX20T is equipped with a high-quality 20 watts 100 volt transformer with several power tappings (20 – 10 – 5 – 2.5 watts).

This loudspeaker is easy to install, due to its simple, quick mounting system with only 3 screws. These screws are hidden behind the loudspeaker grill, what gives the loudspeaker a modern and striking design. The CMX20T loudspeakers can be painted any color.

Specifikationer

Loudspeakers
Speaker type 2-way
Speaker placement Wall-mountable
Tweeter Yes
Tweeter diameter (imperial) 2.54 cm (1")
Woofer Yes
Woofer diameter (imperial) 20.3 cm (8")
Audio
RMS rated power 50 W
Impedance 16 Ω
Sensitivity 88 dB
Sound pressure level (max) 108 dB
Performance
Product colour White
Recommended usage Conferencing system
Housing material Acrylonitrile butadiene styrene (ABS), Plastic
International Protection (IP) code IP54
Ports & interfaces
Connectivity technology Wired
Weight & dimensions
Depth 87 mm
Diameter 24.4 cm
Cord length 1400 m
Packaging data
Package width 279.9 mm
Package depth 279.9 mm
Package height 130 mm
Package weight 1.7 kg
Packaging content
Quantity per pack 1 pc(s)
General
Product family Commercial Audio
Logistics data
Export Control Classification Number (ECCN) EAR99
Harmonized System (HS) code 8518220000
Other features
Country of origin China
