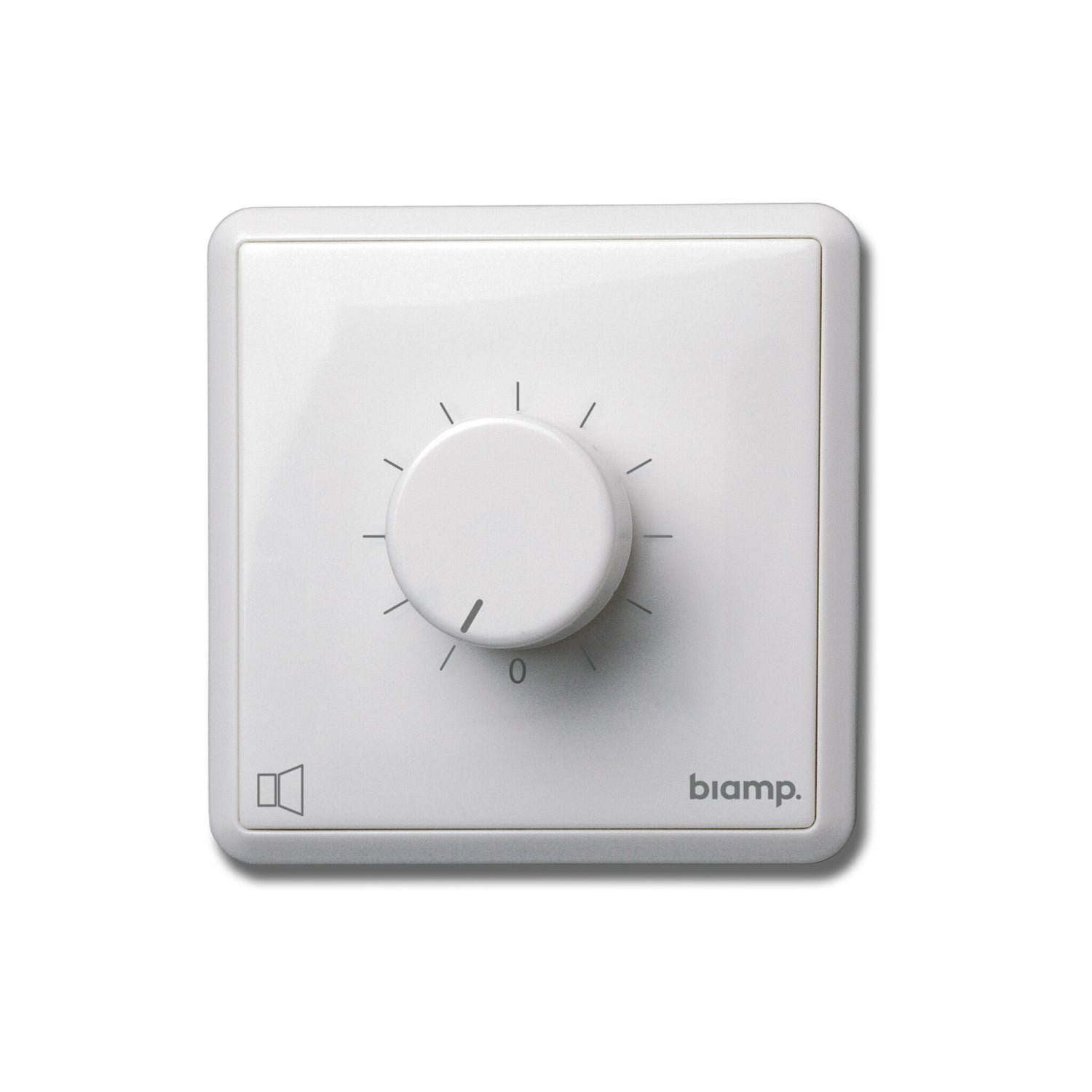

Biamp Commercial Audio E-VOL60 60 W Rotary volume control
Beskrivelse
Beskrivelse
The E-VOL60 is a 100-volt volume control. It can handle up to 60 watts of power. It is very versatile thanks to the step-by-step attenuation in 11 steps + zero position. The E-VOL60 is designed to handle 24V priority signals. This means that you can always get an announcement out, even to zones where the local volume control is in the ‘OFF’ position!
If your amplifier has a 24V priority output, it will send a 24V signal when you push the talk button on the microphone. The 24V signal will close a relay on the E-VOL60 volume control, and the signal will pass, even when the volume control is in the ‘OFF’ position. This can be very useful for emergency or evacuation messages. The E-VOL60 is built on a universal chassis that easily can be integrated with Jung and Euro.
Specifikationer
Specifikationer
| Features | |
|---|---|
| Country of origin | China |
| Product colour | White |
| Mounting type | Wall-mounted |
| Type | Rotary volume control |
| Power | |
|---|---|
| Input operation voltage (max) | 100 V |
| Power handling | 60 W |
| General | |
|---|---|
| Product family | Commercial Audio |
| Logistics data | |
|---|---|
| Export Control Classification Number (ECCN) | EAR99 |
| Weight & dimensions | |
|---|---|
| Weight | 350 g |
| Height | 80 mm |
| Depth | 50 mm |
| Width | 80 mm |
| Packaging data | |
|---|---|
| Package weight | 300 g |
| Package height | 85.1 mm |
| Package depth | 89.9 mm |
| Package width | 89.9 mm |
| Packaging content | |
|---|---|
| Quantity per pack | 1 pc(s) |
