Biamp Commercial Audio MA240 Performance/stage Black
Biamp | Varenummer:
912.0660.900
Beskrivelse
Beskrivelse
120W, Class D, 483 x 300 x 89 mm, 5 kg
MA240

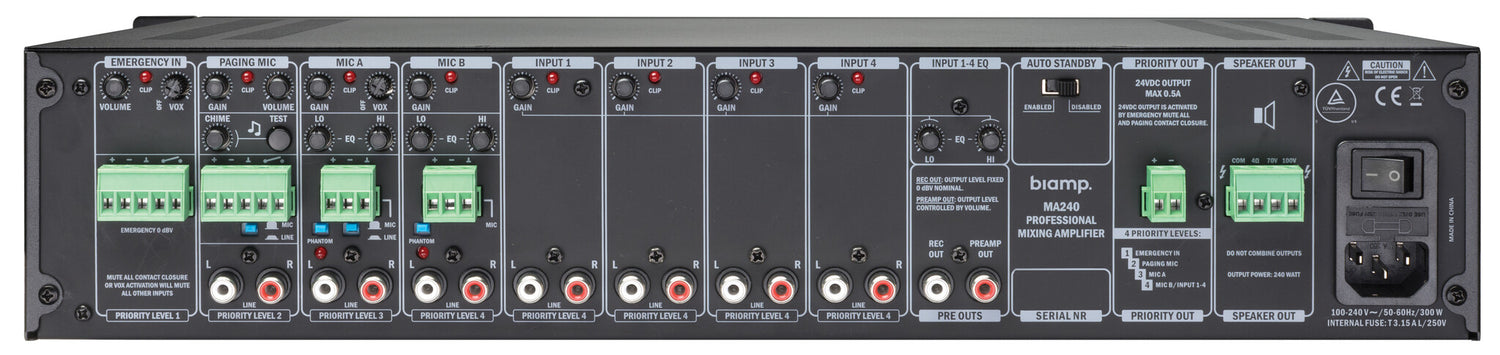

The revolutionary 19” MA240 mixing amplifier offers 240 watts in 70- or 100-volt mode and comes with 2 mic/line input and 4 stereo line, mono summed inputs. On the rear you can find smart left-to-right 4 level priority system for audio routing, an emergency input, paging mic with chime and a 24VDC override output
Specifikationer
Specifikationer
| Audio | |
|---|---|
| Amplifier class | D |
| Total Harmonic Distortion (THD) | 0.5% |
| Signal-to-Noise Ratio (SNR) | 90 dB |
| RMS rated power | 240 W |
| Ports & interfaces | |
|---|---|
| Speakers connectivity type | Euroblock |
| Pre out port | Yes |
| AC (power) in | Yes |
| Microphone in | Yes |
| Line inputs (RCA) | 4 |
| Technical details | |
|---|---|
| Purpose | Performance/stage |
| Connectivity technology | Wired |
| Product colour | Black |
| Country of origin | China |
| Power | |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| DC input voltage | 24 V |
| Power consumption (typical) | 320 W |
| Power consumption (standby) | 0.5 W |
| Maximum current | 0.5 A |
| Weight & dimensions | |
|---|---|
| Width | 483 mm |
| Depth | 300 mm |
| Height | 89 mm |
| Weight | 6 kg |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 2000 m |
| Indication | |
|---|---|
| LED indicators | Yes |
| General | |
|---|---|
| Product family | Commercial Audio |
| Logistics data | |
|---|---|
| Export Control Classification Number (ECCN) | EAR99 |
| Harmonized System (HS) code | 8518402000 |
| Packaging content | |
|---|---|
| Manual | Yes |
| Packaging data | |
|---|---|
| Package width | 411.7 mm |
| Package depth | 516.9 mm |
| Package height | 190 mm |
| Package weight | 7.9 kg |
