Biamp Commercial Audio PM4100 2.0 channels Performance/stage Black
Biamp | Varenummer:
912.1888.900
Beskrivelse
Beskrivelse

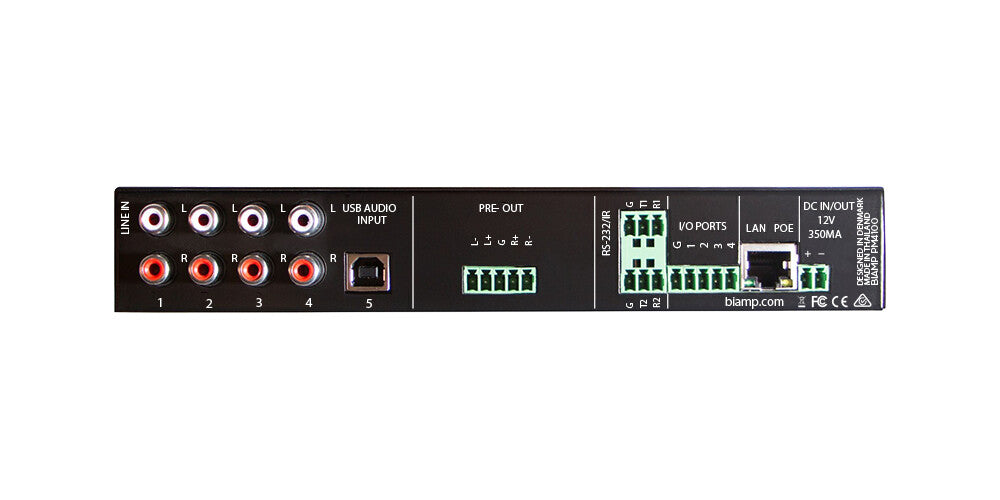

2x 35 W (4 Ohms), 4x unbalanced stereo in RCA, 1x balanced stereo out Euroblock, 4x GPIO Euroblock, 2x bi-directional RS-232, EQ, USB 2.0 Type-B, RJ-45, PoE

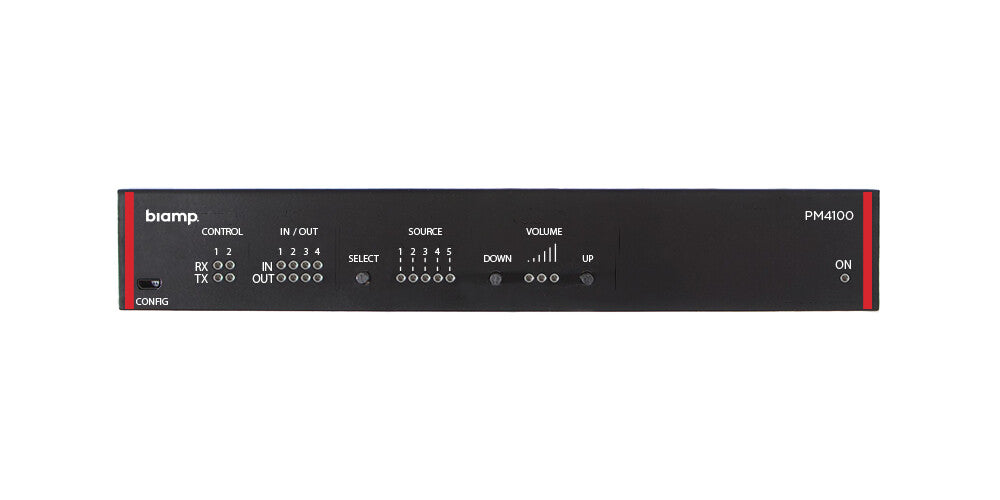

The PM4100 is a multi-functional stereo preamplifier controlled via the network or RS-232 connection. The PM4100 is equipped with four stereo inputs, 4 GPIO, and one stereo output. It integrates easily with a variety of control systems and the USB input enables direct audio connection and volume control from a computer. The PM4100 can be powered by either PoE or 12V DC. It’s audio performance, ease-of-use, and versatile feature set makes the PM4100 ideal for a variety of professional audio applications.
Specifikationer
Specifikationer
| Audio | |
|---|---|
| Audio quality | 16 bit |
| Output impedance | 100 Ω |
| Input impedance | 100000 Ω |
| Bridge-mode power output per channel (4 Ohm) | 56 W |
| Bridge-mode power output per channel (8 Ohm) | 34 W |
| Gain | 12 dB |
| RMS power output per channel (8 Ohm) | 25 W |
| RMS power output per channel (4 Ohm) | 35 W |
| Amplifier class | D |
| Audio output channels | 2.0 channels |
| Ports & interfaces | |
|---|---|
| GPIO ports quantity | 1 |
| GPIO connector type | 5-pin Euroblock |
| RS-232 ports | 2 |
| RS-232 connector type | 3-pin Euroblock |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of Euroblock output connectors | 1 |
| Line inputs (RCA) | 8 |
| Ethernet LAN data rates | 10,100 Mbit/s |
| DC-in jack | Yes |
| USB version | 2.0 |
| USB 2.0 ports quantity | 1 |
| USB port type | USB Type-B |
| Speakers connectivity type | RCA/Euroblock |
| Technical details | |
|---|---|
| Sustainability compliance | Yes |
| Warranty period | 5 year(s) |
| Equalizer | Yes |
| Bridge function | Yes |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Treble adjustment | Yes |
| Bass adjustment | Yes |
| Product colour | Black |
| Connectivity technology | Wired |
| Purpose | Performance/stage |
| Power | |
|---|---|
| Power consumption (Power over Ethernet (PoE)) | 7 W |
| Power consumption (typical) | 5 W |
| DC input voltage | 12 V |
| Power source type | DC, PoE |
| Weight & dimensions | |
|---|---|
| Weight | 500 g |
| Height | 37 mm |
| Depth | 70 mm |
| Width | 218 mm |
| Operational conditions | |
|---|---|
| Operating altitude | 0 - 2000 m |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 30 °C |
| Indication | |
|---|---|
| LED indicators | Yes |
| General | |
|---|---|
| Product family | Commercial Audio |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 8518402000 |
| Export Control Classification Number (ECCN) | EAR99 |
| Packaging data | |
|---|---|
| Package weight | 860 g |
| Package height | 55.1 mm |
| Package depth | 190 mm |
| Package width | 285 mm |
