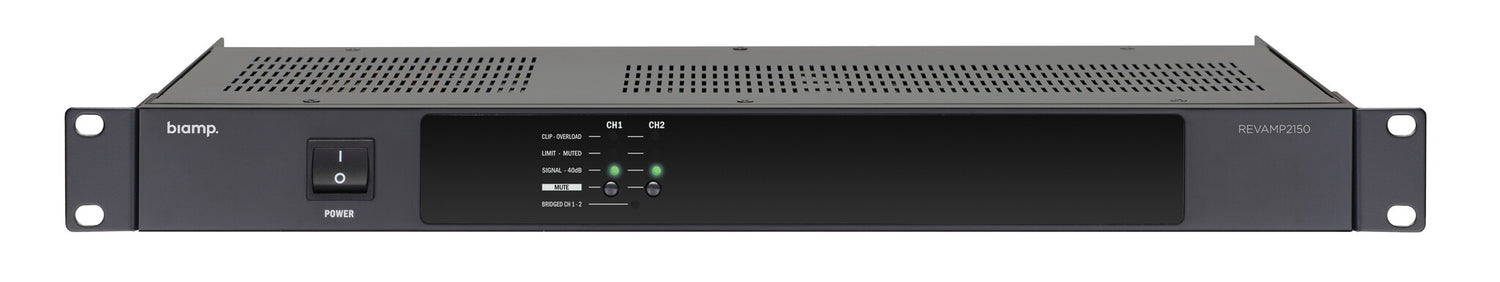

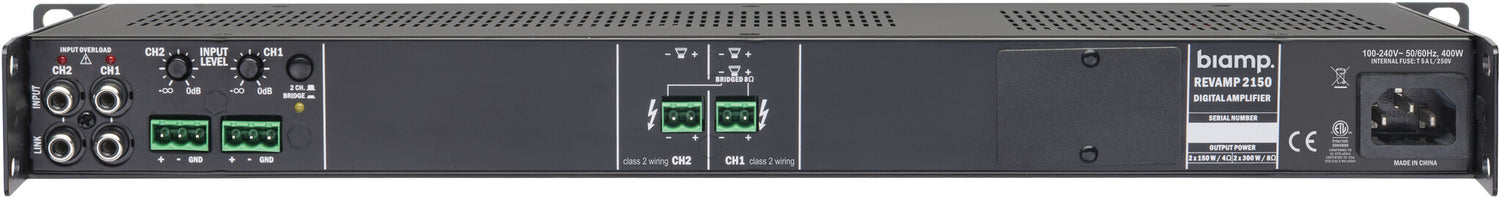

Biamp Commercial Audio REVAMP2150 Performance/stage Black
Beskrivelse
Beskrivelse
The new all-purpose REVAMP2150 is a professional 2-channel digital power amplifier with 2 x 165 watts dynamic output power @ 4 ohms, that can easily be bridged into a powerful 330 watts @ 8 ohms single amplifier. This class-D amplifier is convection cooled without built-in fans which implies that the amplifier is completely noiseless and dust-free. The unit has multiple speaker and amp protection circuits built inside for DC protect, over current protect, over temperature protect and protection against input overload. During the configuration of the input gain, the rear clip LED indicator is very useful and handy for a fast and easy installation. Versatile connectivity due to balanced and unbalanced inputs on euroblock or cinch, pass-through outputs on cinch and loudspeaker outputs on euroblock. Housed in a straightforward 1U slim and lightweight design without front control our REVAMP2150 is an amplifier unlike any other in the small and mid-sized fixed install audio market.
Specifikationer
Specifikationer
| Audio | |
|---|---|
| Peak power per channel | 150 W |
| Amplifier class | D |
| Signal-to-Noise Ratio (SNR) | 98 dB |
| RMS power output per channel (4 Ohm) | 150 W |
| RMS power output per channel (8 Ohm) | 80 W |
| Dynamic power per channel (4 Ohm) | 95 W |
| Dynamic power per channel (8 Ohm) | 165 W |
| Input impedance | 22000 Ω |
| Frequency range | 20 - 22000 Hz |
| Ports & interfaces | |
|---|---|
| Speakers connectivity type | Euroblock |
| AC (power) in | Yes |
| Technical details | |
|---|---|
| Purpose | Performance/stage |
| Connectivity technology | Wired |
| Product colour | Black |
| Channels quantity | 2 channels |
| Cooling type | Passive |
| Rack capacity | 1U |
| Country of origin | China |
| Power | |
|---|---|
| AC input voltage | 115 - 230 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 400 W |
| Weight & dimensions | |
|---|---|
| Width | 483 mm |
| Depth | 239 mm |
| Height | 44 mm |
| Weight | 3.2 kg |
| Indication | |
|---|---|
| LED indicators | Yes |
| General | |
|---|---|
| Product family | Commercial Audio |
| Logistics data | |
|---|---|
| Export Control Classification Number (ECCN) | EAR99 |
| Harmonized System (HS) code | 8518402000 |
| Packaging content | |
|---|---|
| Manual | Yes |
| Packaging data | |
|---|---|
| Package width | 519.7 mm |
| Package depth | 334.8 mm |
| Package height | 145 mm |
| Package weight | 5.15 kg |
