Biamp Commercial Audio REVAMP2600 2.0 channels Performance/stage Black

Biamp  |  Varenummer: 912.1470.900
Stregkode: 5420035206102

Beskrivelse

2-ch, 2 x 600W, 483 x 340 x 88 mm, 12.1 kg

REVAMP2600 is a professional 2-channel power amplifier with 2 x 840 watts output power @ 4 ohms. The digital signal processor inside operates with one simple push button at the back of the unit to select an operating mode (10 presets) what makes this amplifier the ideal multipurpose tool for applications where you need a lot of power in two different zones like fitness centers or stereo applications.

The amplifier contains an intelligent variable speed cooling fan. The REVAMP2600 also temporally decreases the output power to a safe limit whenever a thermal overload occurs (indicated by a LED light on the front panel). The very intuitive front display shows what is going on with one blink of an eye. Thanks to our own designed automatic protection system (patent pending) with smart use of a compressor/limiter topology we bring our power supply to an unexpected high level! This manifests itself in a great dynamic power with an unseen musicality and exceptional dynamic sound.

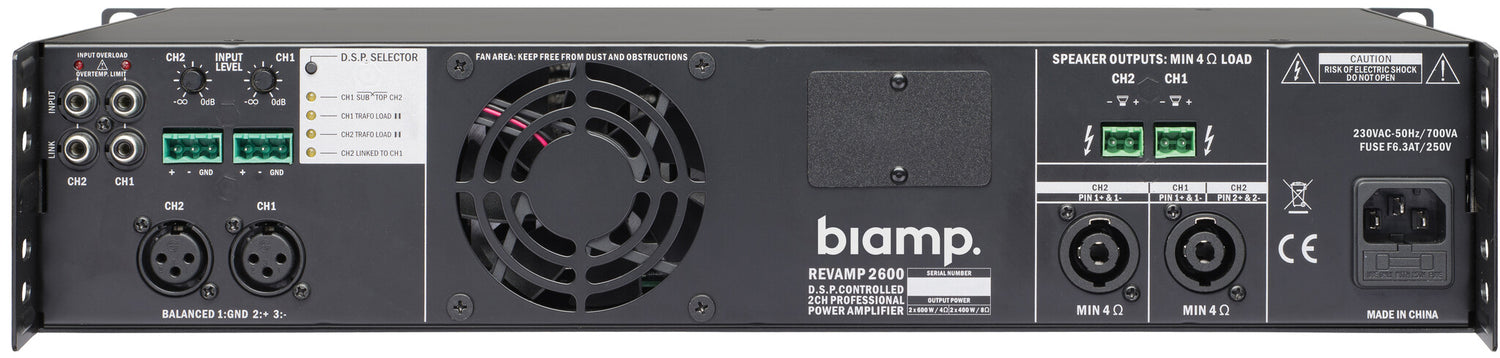

There are 9 presets available which can be selected by the button at the back of the unit. An example of a preset is the combination CH1 subwoofer and CH2 trafo load. In this example you have a low-pass filter for increased stability when using 100-volt transformers on the output, allowing you to use 100-volt speakers as top speakers combined with a standard low impedance subwoofer. With the other preset channels can be linked and high pass filters can be applied to a channel.

Specifikationer

Audio
Frequency range 10 - 24000 Hz
Input impedance 22000 Ω
Dynamic power per channel (8 Ohm) 420 W
Dynamic power per channel (4 Ohm) 840 W
RMS power output per channel (8 Ohm) 300 W
RMS power output per channel (4 Ohm) 600 W
Signal-to-Noise Ratio (SNR) 98 dB
Amplifier class H
Peak power per channel 600 W
Audio output channels 2.0 channels
Ports & interfaces
AC (power) in Yes
Technical details
Country of origin China
Rack capacity 2U
Cooling type Active
Channels quantity 2 channels
Product colour Black
Connectivity technology Wired
Purpose Performance/stage
Power
Power consumption (max) 1840 W
AC input frequency 50 - 60 Hz
AC input voltage 230 V
Power source type AC
Weight & dimensions
Weight 12.1 kg
Height 88 mm
Depth 340 mm
Width 483 mm
Indication
LED indicators Yes
General
Product family Commercial Audio
Packaging content
Manual Yes
Logistics data
Harmonized System (HS) code 8518220000
Packaging data
Package weight 17.7 kg
Package height 194.8 mm
Package depth 419.9 mm
Package width 524.8 mm

Download

PDF download:
