4 x 120W, 4-Ch, Class-D, 483 x 338 x 88 mm, 12.1 kg

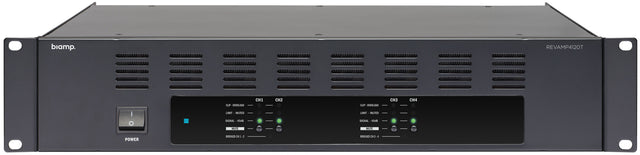

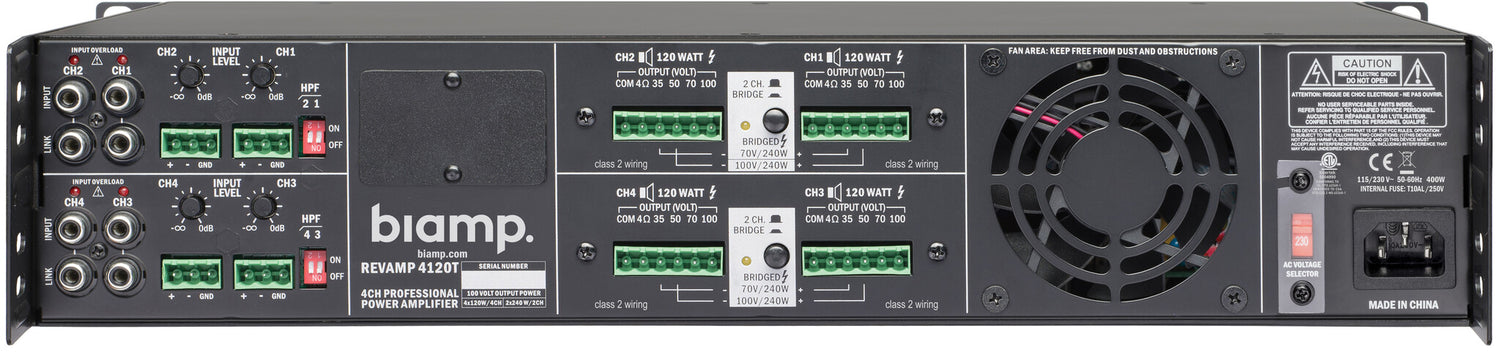

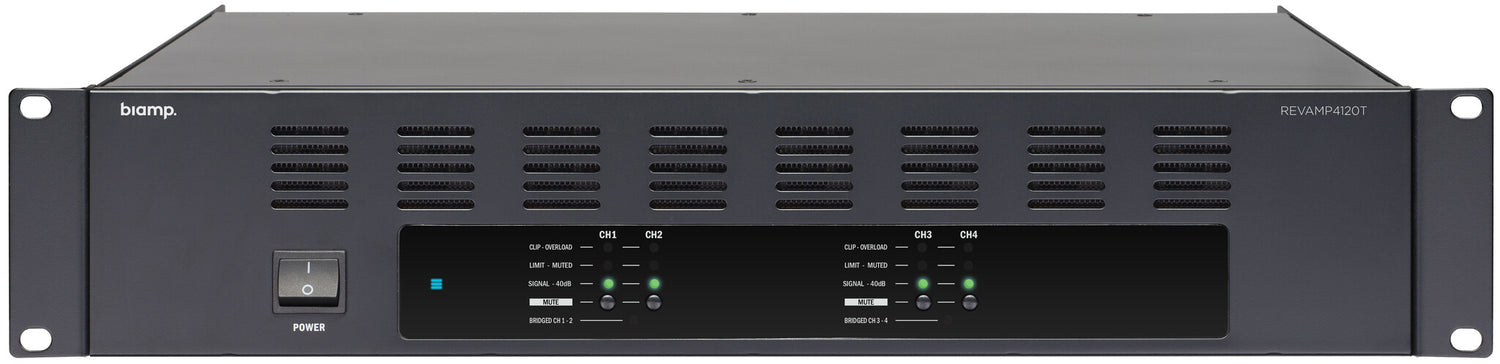

REVAMP4120T is a professional 4-channel digital power amplifier with 4 x 120 watts output power @ 100 volt (or @ 4 ohms), but the unit is also bridgeable to 2 x 240 watts @ 100 volt (or @ 4 ohms). The unit incorporates a highly efficient SMPS power supply, outputs with efficient Class D output topology and output transformers.
REVAMP4120T is the ideal amplifier for applications with 4 zones in mono, 2 zones in stereo or even bridged dual mono or bridged stereo systems. This amplifier contains an intelligent variable speed cooling fan that only will be activated in case of emergency.
In order to match each input to its respective source the input sensitivity can be adapted to your needs. The input stage also features a build-in 250 Hz HP-filter to optimize the system for use on horn speakers if needed. Each pair of outputs can be bridged to give you 2 x 240 watts of output power.
| Audio |
|---|
| Frequency range |
50 - 20000 Hz |
| Input impedance |
22000 Ω |
| Bridge-mode power output per channel (8 Ohm) |
240 W |
| Dynamic power per channel (8 Ohm) |
60 W |
| Dynamic power per channel (4 Ohm) |
120 W |
| RMS power output per channel (8 Ohm) |
60 W |
| RMS power output per channel (4 Ohm) |
120 W |
| Signal-to-Noise Ratio (SNR) |
101 dB |
| Total Harmonic Distortion (THD) |
0.05% |
| Amplifier class |
D |
| Peak power per channel |
120 W |
| Audio output channels |
4.0 channels |
| Ports & interfaces |
|---|
| AC (power) in |
Yes |
| Speakers connectivity type |
Euroblock |
| Technical details |
|---|
| Country of origin |
China |
| On/off switch |
Yes |
| Rack capacity |
2U |
| Cooling type |
Active |
| Channels quantity |
4 channels |
| Product colour |
Black |
| Connectivity technology |
Wired |
| Purpose |
Performance/stage |
| Power |
|---|
| Power consumption (max) |
525 W |
| AC input frequency |
50 - 60 Hz |
| AC input voltage |
115 - 230 V |
| Power source type |
AC |
| Weight & dimensions |
|---|
| Weight |
12.1 kg |
| Height |
88 mm |
| Depth |
338 mm |
| Width |
483 mm |
| Indication |
|---|
| LED indicators |
Yes |
| General |
|---|
| Product family |
Commercial Audio |
| Packaging content |
|---|
| Manual |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
8518402000 |
| Export Control Classification Number (ECCN) |
EAR99 |
| Packaging data |
|---|
| Package weight |
13.1 kg |
| Package height |
194.8 mm |
| Package depth |
419.9 mm |
| Package width |
524.8 mm |
