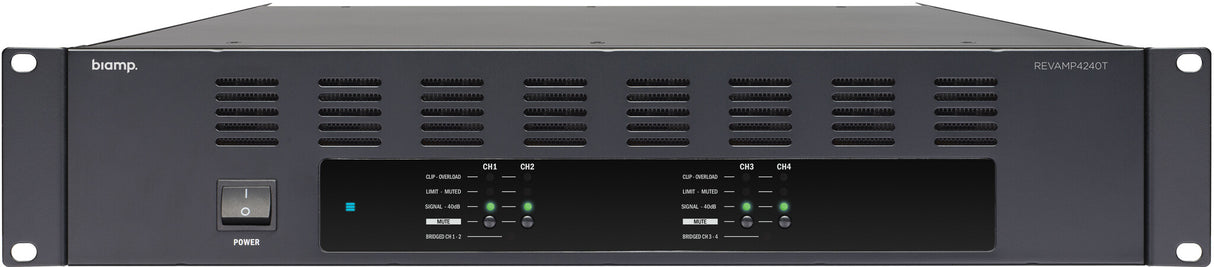

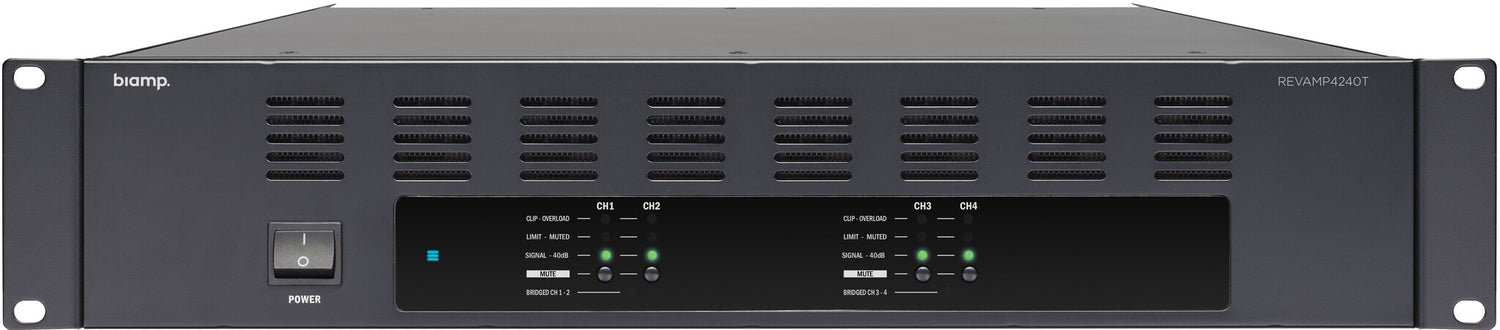

Biamp Commercial Audio REVAMP4240T 4.0 channels Performance/stage Black
Beskrivelse
Beskrivelse
REVAMP4240T is a professional 4-channel digital power amplifier with 4 x 240-watt output power @ 100 volt, but the unit is also bridgeable to 2 x 480 watts @ 100 volt. The unit incorporates a high efficiency SMPS power supply and outputs with efficient Class D output topology.
REVAMP4240T is the ideal amplifier for applications with 4 zones in mono, 2 zones in stereo or even bridged dual mono or bridged stereo systems. This amplifier contains an intelligent variable speed cooling fan that only will be activated in case of emergency.
In order to match each input to its respective source the input sensitivity can be adapted to your needs. The input stage also features a built-in 250 Hz HP-filter to optimize the system for use on horn speakers.
Specifikationer
Specifikationer
| Audio | |
|---|---|
| Audio output channels | 4.0 channels |
| Peak power per channel | 240 W |
| Amplifier class | D |
| Total Harmonic Distortion (THD) | 0.07% |
| Signal-to-Noise Ratio (SNR) | 101 dB |
| RMS power output per channel (4 Ohm) | 240 W |
| RMS power output per channel (8 Ohm) | 120 W |
| Dynamic power per channel (4 Ohm) | 240 W |
| Dynamic power per channel (8 Ohm) | 480 W |
| Bridge-mode power output per channel (8 Ohm) | 480 W |
| Input impedance | 22000 Ω |
| Frequency range | 50 - 20000 Hz |
| Ports & interfaces | |
|---|---|
| Speakers connectivity type | Euroblock |
| AC (power) in | Yes |
| Technical details | |
|---|---|
| Purpose | Performance/stage |
| Connectivity technology | Wired |
| Product colour | Black |
| Channels quantity | 4 channels |
| Cooling type | Active |
| Rack capacity | 2U |
| On/off switch | Yes |
| Country of origin | China |
| Power | |
|---|---|
| Power source type | AC |
| AC input voltage | 115 - 230 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 1050 W |
| Weight & dimensions | |
|---|---|
| Width | 483 mm |
| Depth | 338 mm |
| Height | 88 mm |
| Weight | 16.7 kg |
| Indication | |
|---|---|
| LED indicators | Yes |
| General | |
|---|---|
| Product family | Commercial Audio |
| Logistics data | |
|---|---|
| Export Control Classification Number (ECCN) | EAR99 |
| Harmonized System (HS) code | 8518402000 |
| Packaging content | |
|---|---|
| Manual | Yes |
| Packaging data | |
|---|---|
| Package width | 524.8 mm |
| Package depth | 419.9 mm |
| Package height | 194.8 mm |
| Package weight | 19.7 kg |
