Biamp Commercial OVO5T 2-way White Wired 40 W

Biamp  |  Varenummer: 911.1443.900
Stregkode: 5420035213988

Beskrivelse

40 W, 16 Ohms, 74 Hz - 20 kHz, 167 x 189 x 256 mm, 3.08 kg

OVO5T

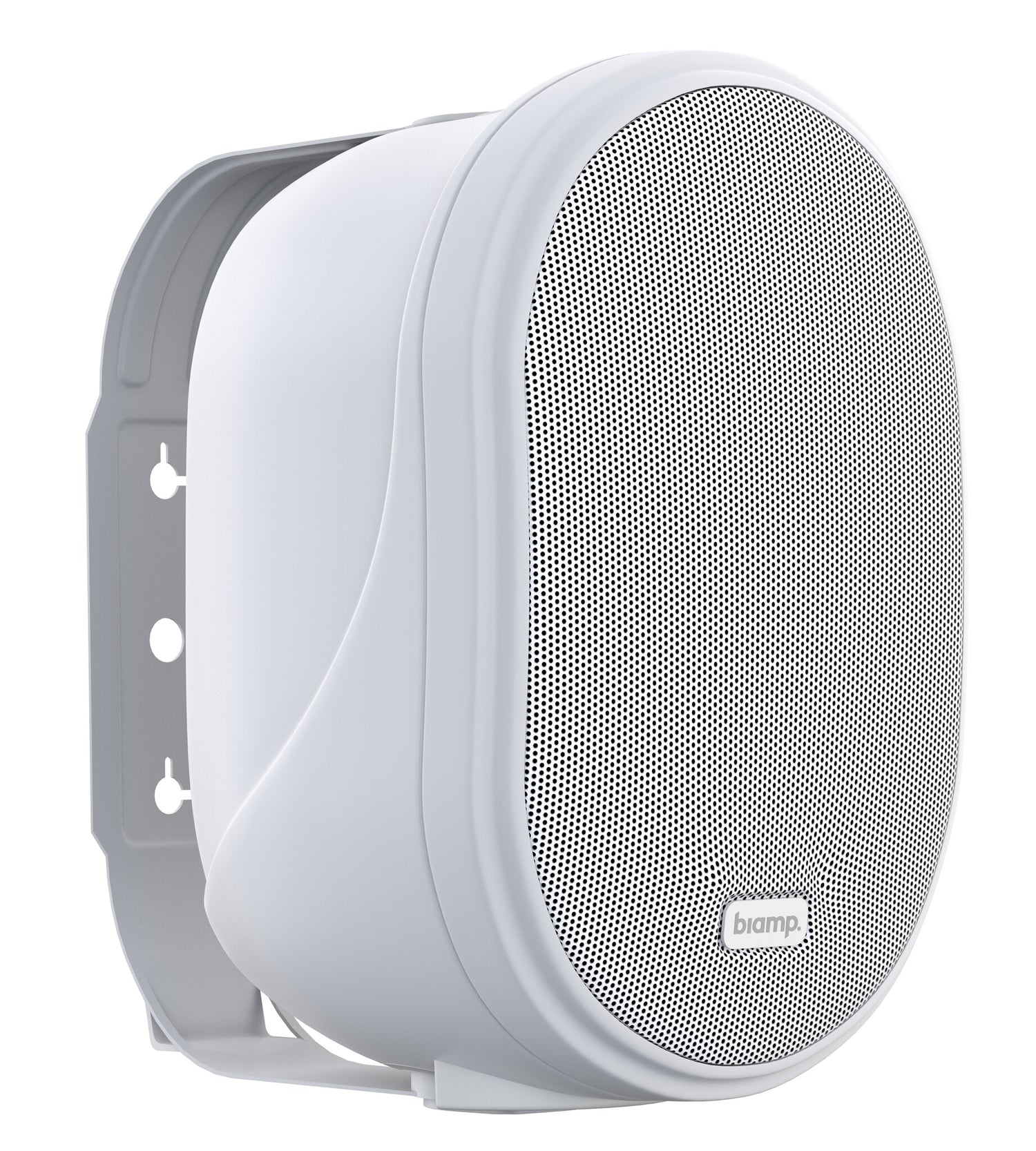

OVO5T is a 5.25-inch, two-way 70/100 volt or low impedance cabinet loudspeaker that can be used for background music and paging purposes both indoor and (covered) outdoor. This speaker produces 80 watts @ 16 ohms or when used in 100 volt you can select 30 – 15 – 6 – 3 watts and when used with 70 volt you can select 30 – 15 – 7.5 – 3 – 1.5 watts -- with an easily accessible selection switch at the back.

Install as many speakers as you want in large-surface projects like company buildings, neighborhood centers, commercial applications -- thanks to the fresh design this speaker fits into any area, whatever its décor or interior style.

The sturdy ABS plastic housing guarantees years of trouble-free musical enjoyment. OVO5T has a 5.25-inch paper cone woofer and 1-inch silk dome tweeter.

The OVO5T can be mounted with the included wall bracket while the Quick-Fit cable clamps ensure quick and easy mounting in a wide range of positioning. The speaker can also be placed freestanding on a shelf or desk. This loudspeaker can be painted in any color of choice.

Specifikationer

Loudspeakers
Speaker type 2-way
Speaker placement Wall-mountable
Number of drivers 2
Tweeter Yes
Number of tweeter drivers 1
Tweeter diameter 2.5 cm
Tweeter diameter (imperial) 2.54 cm (1")
Woofer Yes
Number of woofer drivers 1
Woofer diameter 13.3 cm
Woofer diameter (imperial) 13.3 cm (5.25")
Audio
RMS rated power 40 W
Frequency range 74 - 20000 Hz
Impedance 16 Ω
Sensitivity 102 dB
Performance
Product colour White
Recommended usage Conferencing system
Housing material Acrylonitrile butadiene styrene (ABS), Plastic
International Protection (IP) code IP40
Amplifier
Amplifier No
Ports & interfaces
Connectivity technology Wired
Bluetooth No
Power
Transformer taps 1.5,3,7.5,15,30 W
Weight & dimensions
Width 167 mm
Depth 189 mm
Height 256 mm
Weight 3.08 kg
Packaging data
Package width 211.1 mm
Package depth 513.1 mm
Package height 297.9 mm
Package weight 3.3 kg
General
Product family Commercial
Logistics data
Export Control Classification Number (ECCN) EAR99
Harmonized System (HS) code 8518220000
Other features
Country of origin China
