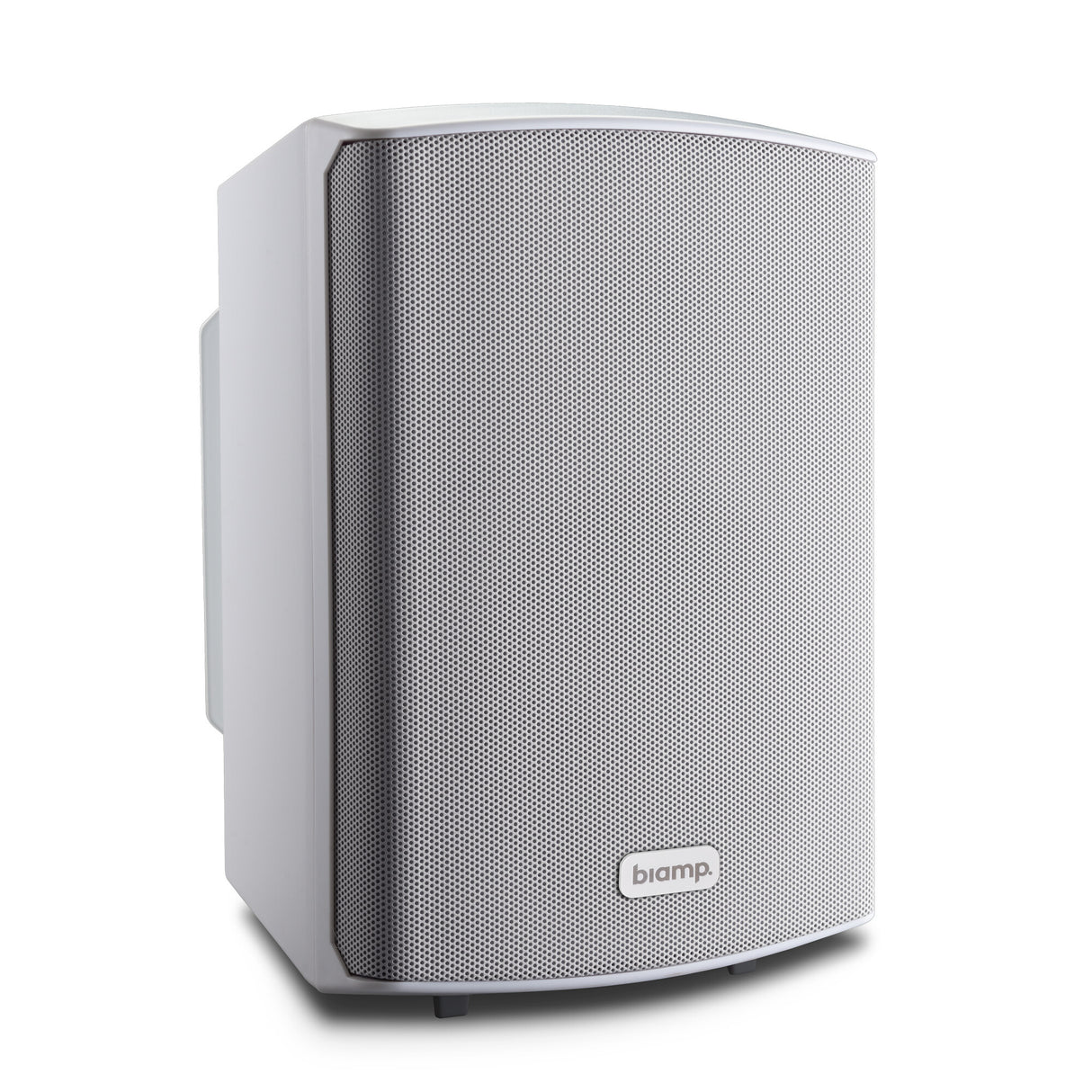

Biamp Commercial SDQ5PIR 5-inch Two-Way Active Loudspeaker Set RC White

Biamp  |  Varenummer: 912.1477.900

Beskrivelse

SDQ5PIR 5-inch Two-Way Active Loudspeaker Set RC White

SDQ5PIR-BL (and SDQ5PIR-W) is a 5 inch stereo loudspeaker set with 1 active and 1 passive loudspeaker that stands for reliability, affordability, dynamic music, and detailed voice reproduction. The active stereo amplifier loudspeaker has a low distortion high efficiency 5.25 inch woofer and one output is fed to the second linkable passive loudspeaker.

The SDQ5PIR set can be controlled from the included infrared remote control, via serial commands or via the Biamp wall control panels (ACP, ACPL or ACPR) which allow control of power and volume. ACPL and ACPR also allow the addition of external audio inputs. Teachers, lecturers, or anyone who is giving a presentation can stop worrying about audio system problems and stay focused on their presentation.

All inputs can be gain adjusted, used individually, or mixed together. The balanced input allows long signal line without interference. You will not hear any hum or buzz, because there will be no ground loop issues when connecting the SDQ5PIR with notoriously difficult laptops, LCD projectors, or interactive white boards.

These loudspeakers will give you a variety of sound possibilities when used in conjunction with a flat screen, projector or smart board. With their magnetic shielding these loudspeakers are the ideal and cost-effective audio solution for your classroom, boardrooms or meeting room.

Specifikationer

Loudspeakers
Woofer diameter 5.25 mm
Number of woofer drivers 1
Woofer Yes
Tweeter diameter (imperial) 2.54 cm (1")
Number of tweeter drivers 1
Tweeter Yes
Speaker placement Surface-mountable
Speaker type 2-way
Audio
Sound pressure level (max) 101 dB
Impedance 4 Ω
Frequency range 45 - 20000 Hz
RMS rated power 60 W
Performance
International Protection (IP) code IP40
Suitable for outdoor use No
Remote control type IR
Remotely operated Yes
Volume control Yes
Housing material Acrylonitrile butadiene styrene (ABS)
Recommended usage Universal
Product colour White
Amplifier
Amplifier Built-in
Ports & interfaces
Bluetooth No
Connectivity technology Wired
Power
AC input voltage 230 V
Weight & dimensions
Weight 5.6 kg
Height 253 mm
Depth 162 mm
Width 180 mm
Packaging content
Mounting brackets included Yes
Remote control included Yes
Quantity per pack 2 pc(s)
General
Product family Commercial
Logistics data
Export Control Classification Number (ECCN) EAR99
Harmonized System (HS) code 8518220000
Other features
Batteries included Yes
Country of origin China

Download

PDF download:
