Biamp Desono CM20DTS 2-way White Wired 40 W

Biamp  |  Varenummer: 911.0631.900
Stregkode: 0810039101193,810039101193

Beskrivelse

90 Hz - 22 kHz, 40 W, 16 Ohms, D223 x 84 mm, 2 kg

CM20DTS

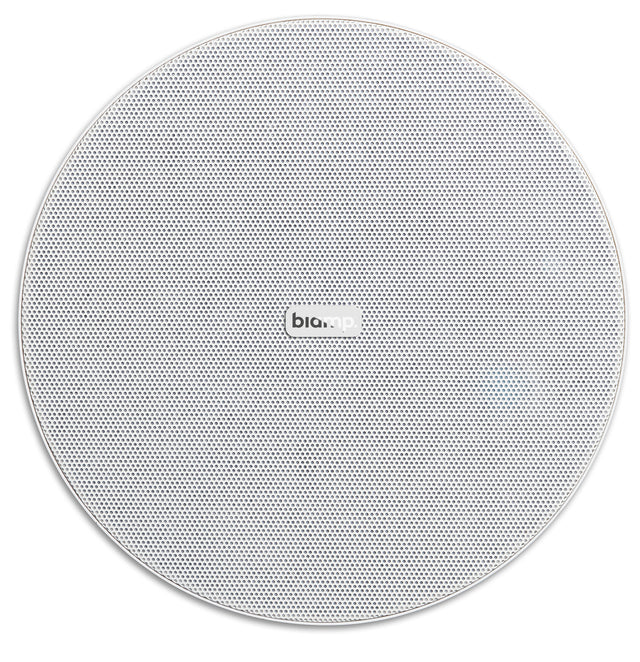

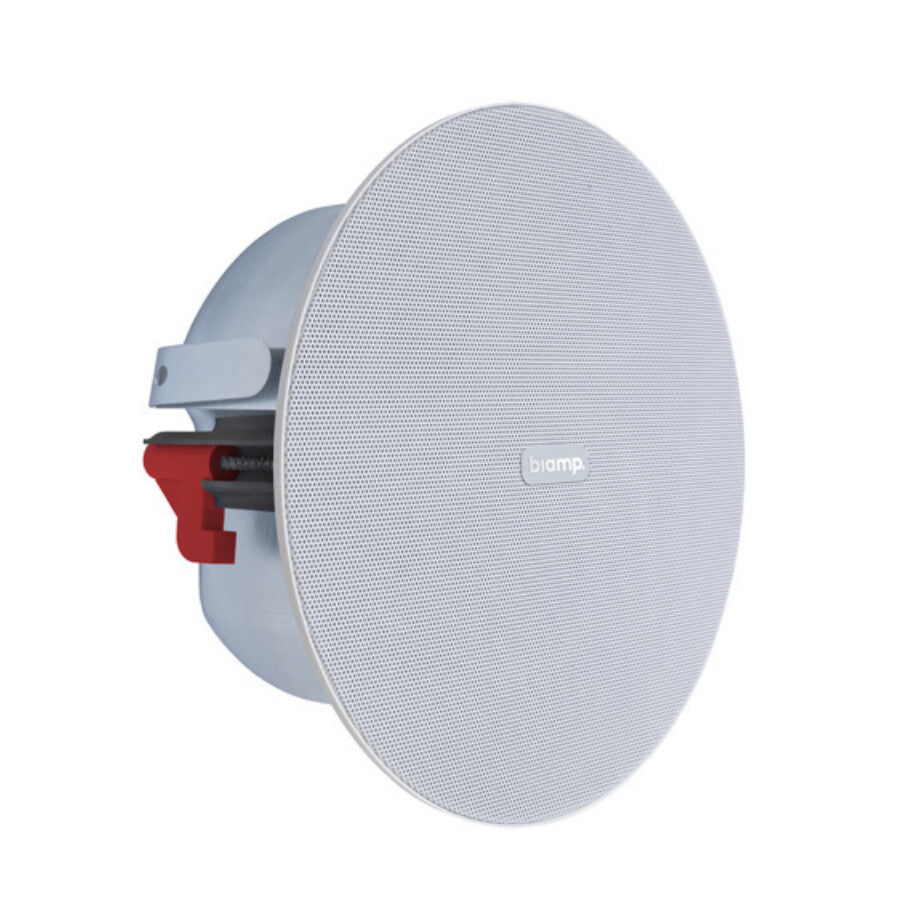

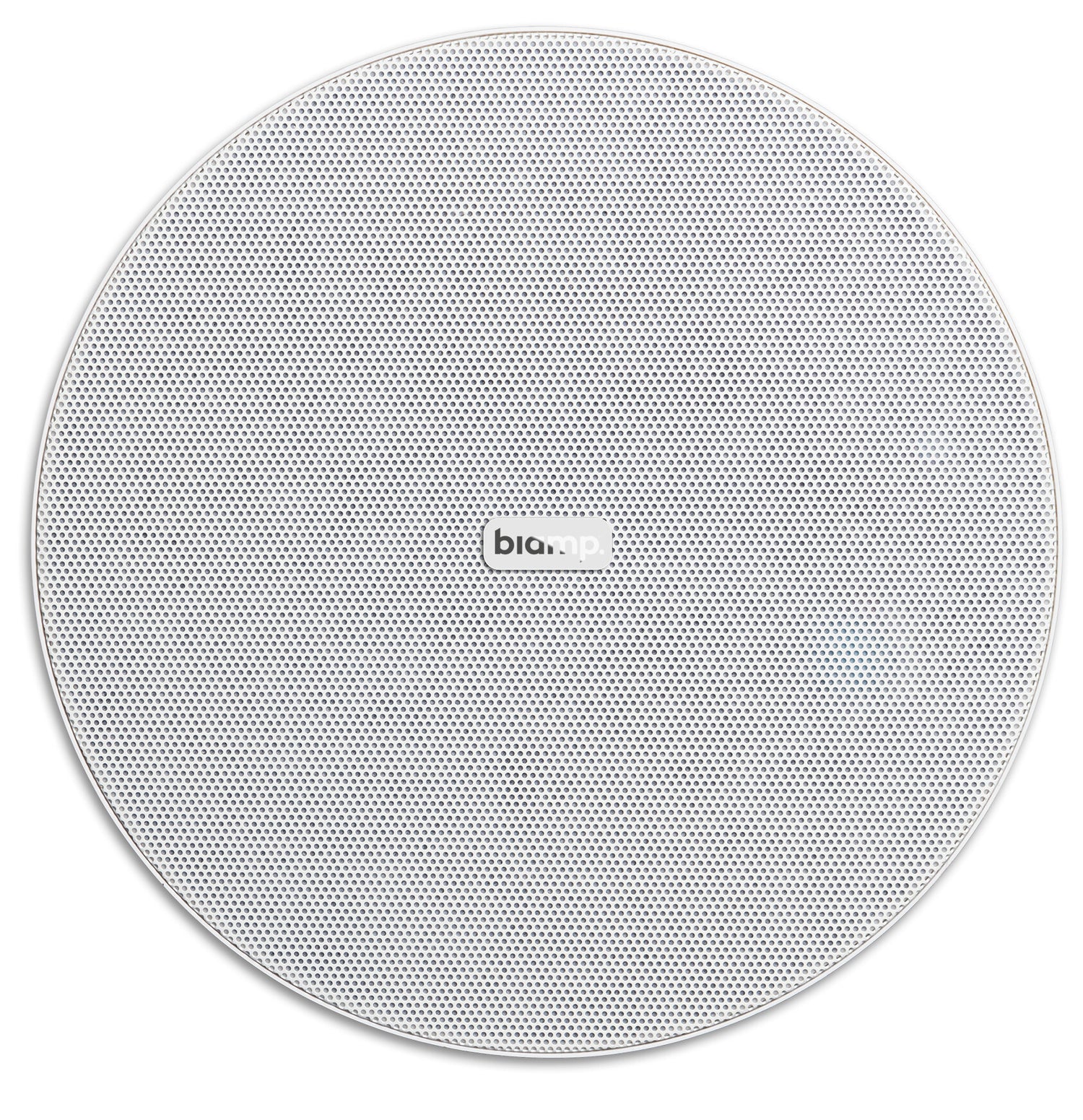

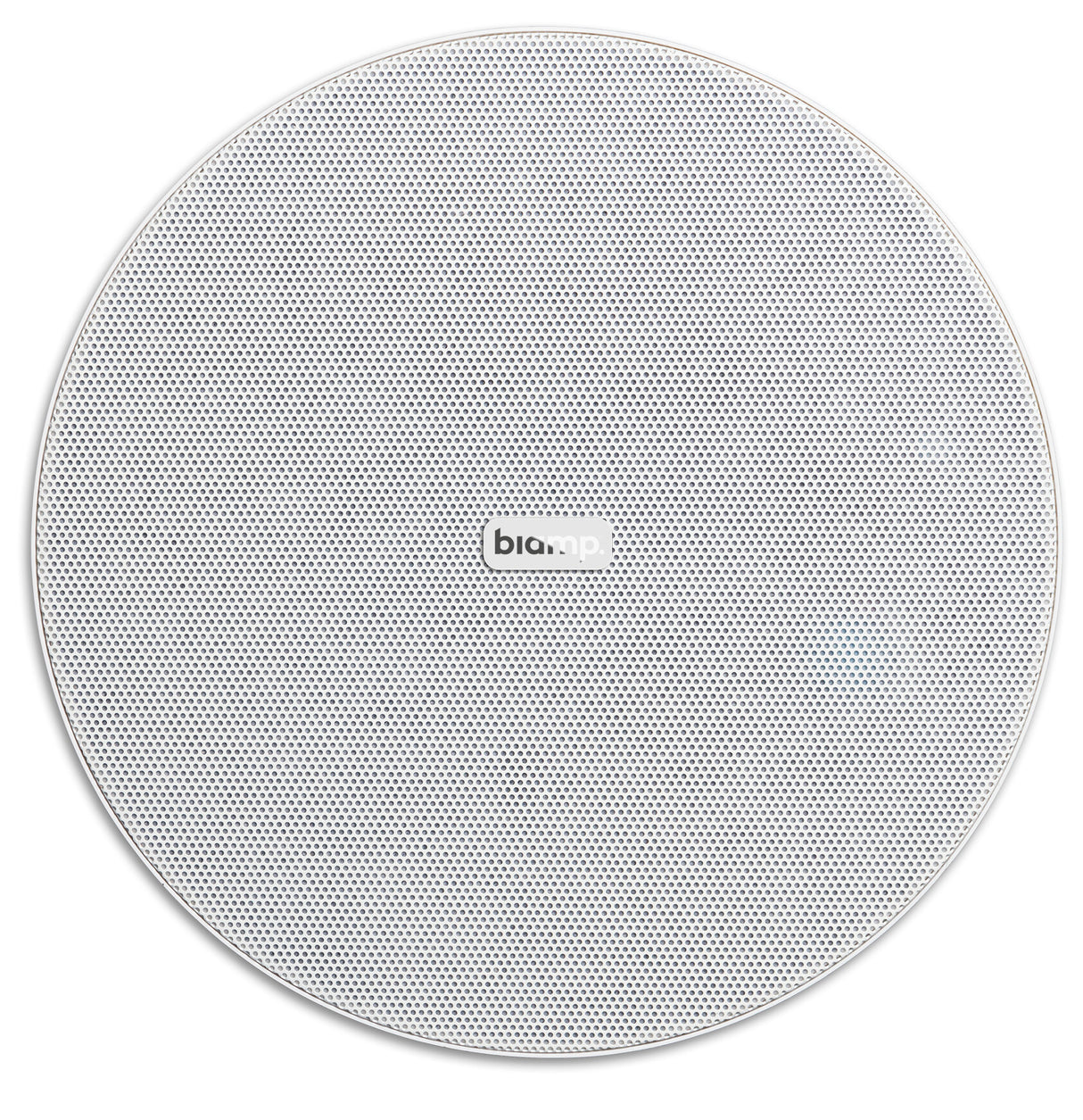

The versatile Desono CM20DTS 4.25” two-way design built-in ceiling loudspeaker produces a dynamic and warm sound ideal for high-quality background music and voice reproduction. The back can with only 83.5mm (3.287”) built-in depth is probably the shallowest in his kind. The uncompromised sound quality and controlled sound performance makes it suitable for any kind of ceiling structure. The CM20DTS has a rotatable 70/100-volt power tapping selector on the front and offers 16 ohms connectivity. The thin edge grill with integrated neodymium grill fixing magnets will blend this top-notch loudspeaker in any design environment.

Specifikationer

Loudspeakers
Woofer diameter (imperial) 10.8 cm (4.25")
Woofer diameter 10.8 cm
Number of woofer drivers 1
Woofer Yes
Tweeter diameter (imperial) 2.54 cm (1")
Tweeter diameter 2.5 cm
Number of tweeter drivers 1
Tweeter Yes
Number of drivers 2
Speaker placement Ceiling-mountable
Speaker type 2-way
Audio
Sensitivity 87 dB
Impedance 16 Ω
Frequency range 90 - 22000 Hz
Peak Music Power Output (PMPO) 160 W
RMS rated power 40 W
Performance
Recommended usage Conferencing system
Product colour White
Amplifier
Amplifier No
Ports & interfaces
Bluetooth No
Connectivity technology Wired
Power
Transformer taps 2.5,5,10,20 W
Weight & dimensions
Diameter 22.3 cm
Weight 2 kg
Height 84 mm
Packaging data
Package weight 2 kg
Package height 137.9 mm
Package depth 638 mm
Package width 276.1 mm
Packaging content
Quantity per pack 2 pc(s)
General
Product family Desono
Logistics data
Export Control Classification Number (ECCN) EAR99
Harmonized System (HS) code 8518220000
Other features
Country of origin China
