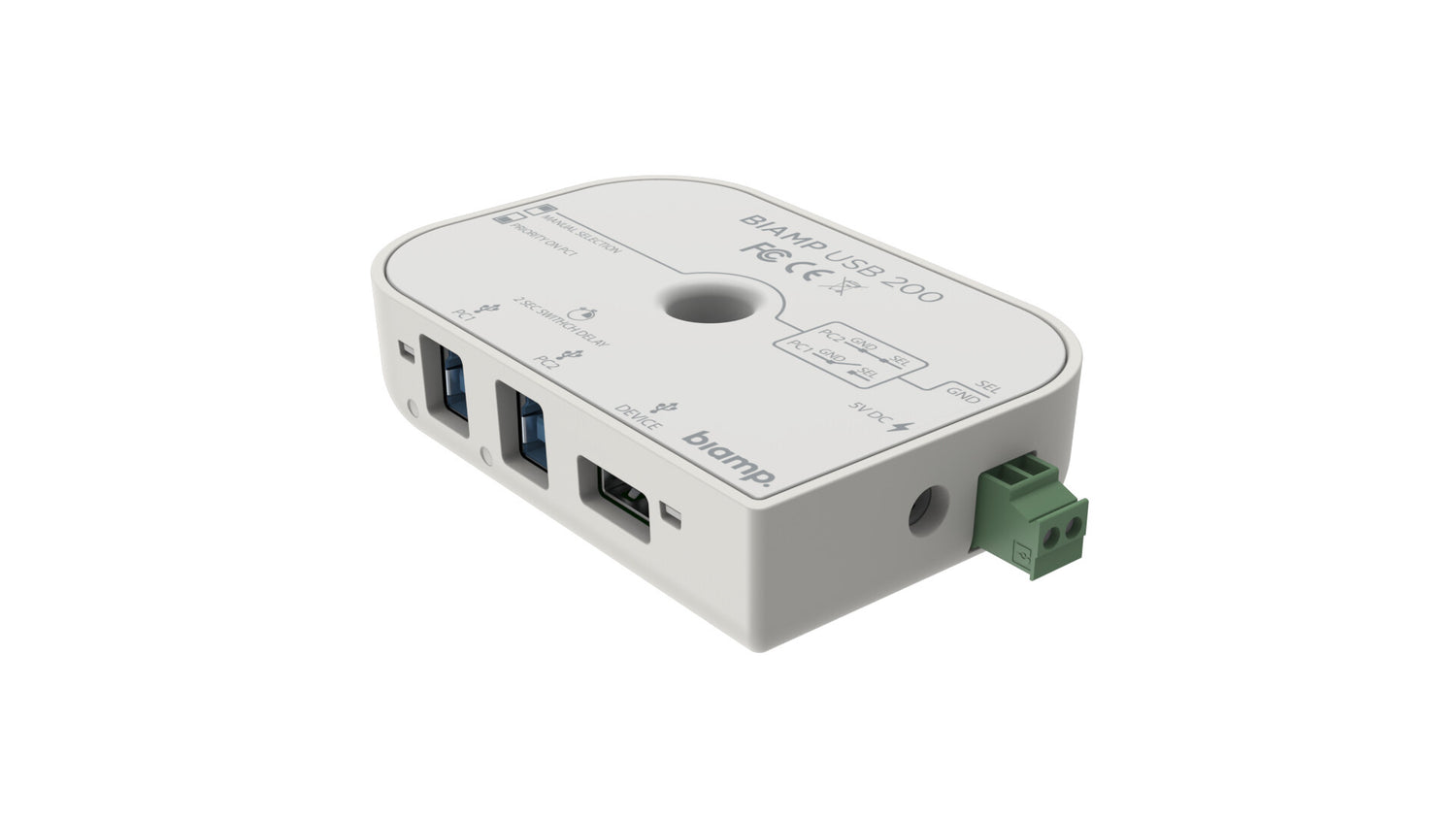

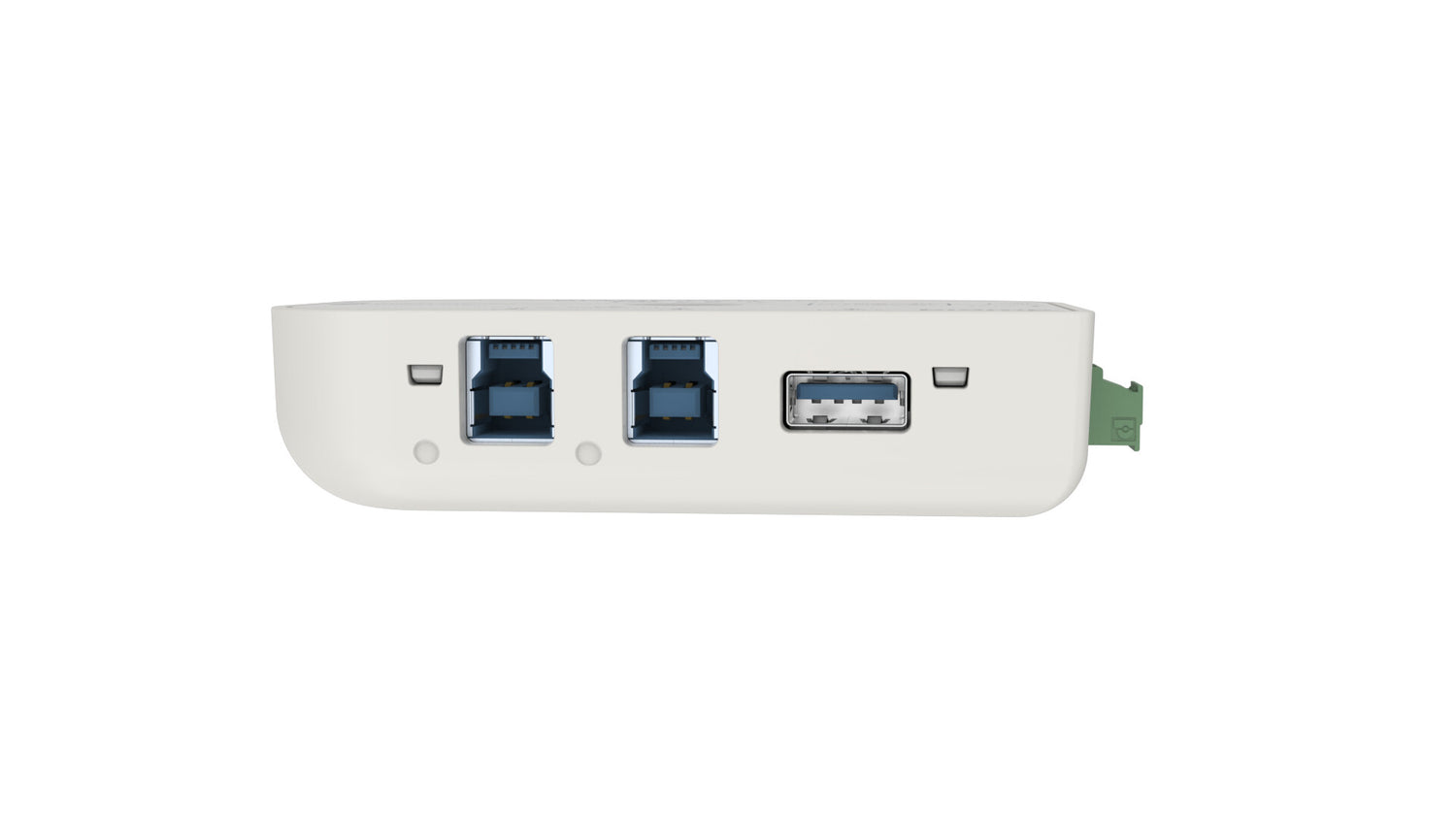

Biamp Devio USB 200 Switch
Beskrivelse
Beskrivelse
The Biamp USB 200 adds BYOD flexibility to dedicated video conferencing rooms. Supporting both USB 2.0 and 3.0, the USB 200 allows easy switching of a device between two host computers. It is equipped with automated priority switching when a second computer is connected (BYOD) or the source can be changed manually via an external control system. A two second power switch delay when switching between computers ensures a stable and reliable re-connection of the device.
A built-in USB extender allows the use of USB 3.0 cable lengths of up to 10 feet (3m) and USB 2.0 cable lengths of up to 17 feet (5m) on both sides of the switch for greater flexibility in device placement. The USB 200 is an excellent addition to any meeting space for increased presentation flexibility.
The USB 200 Switch complies with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.
Specifikationer
Specifikationer
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 2 |
| DC-in jack | Yes |
| Performance | |
|---|---|
| Maximum data transfer rate | 5 Gbit/s |
| Product colour | White |
| Technical details | |
|---|---|
| Compliance certificates | CE, RoHS, Trade Agreements Act (TAA) |
| Sustainability compliance | Yes |
| Power | |
|---|---|
| Operating voltage | 5 V |
| Power consumption | 15 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 2000 m |
| Weight & dimensions | |
|---|---|
| Width | 64 mm |
| Depth | 95 mm |
| Height | 23 mm |
| Weight | 75 g |
| Packaging content | |
|---|---|
| AC adapter included | Yes |
| Screws included | Yes |
| Anchors included | Yes |
| Number of zip ties included | 2 |
| Packaging data | |
|---|---|
| Package depth | 115.1 mm |
| Package width | 134.9 mm |
| Package height | 79 mm |
| Package weight | 570 g |
| General | |
|---|---|
| Product family | Devio |
| Logistics data | |
|---|---|
| Export Control Classification Number (ECCN) | EAR99 |
| Country of origin | Lithuania |
