Biamp DX-IC4LP-W 2-way White Wired 60 W

Biamp  |  Varenummer: 910.0103.900

Beskrivelse

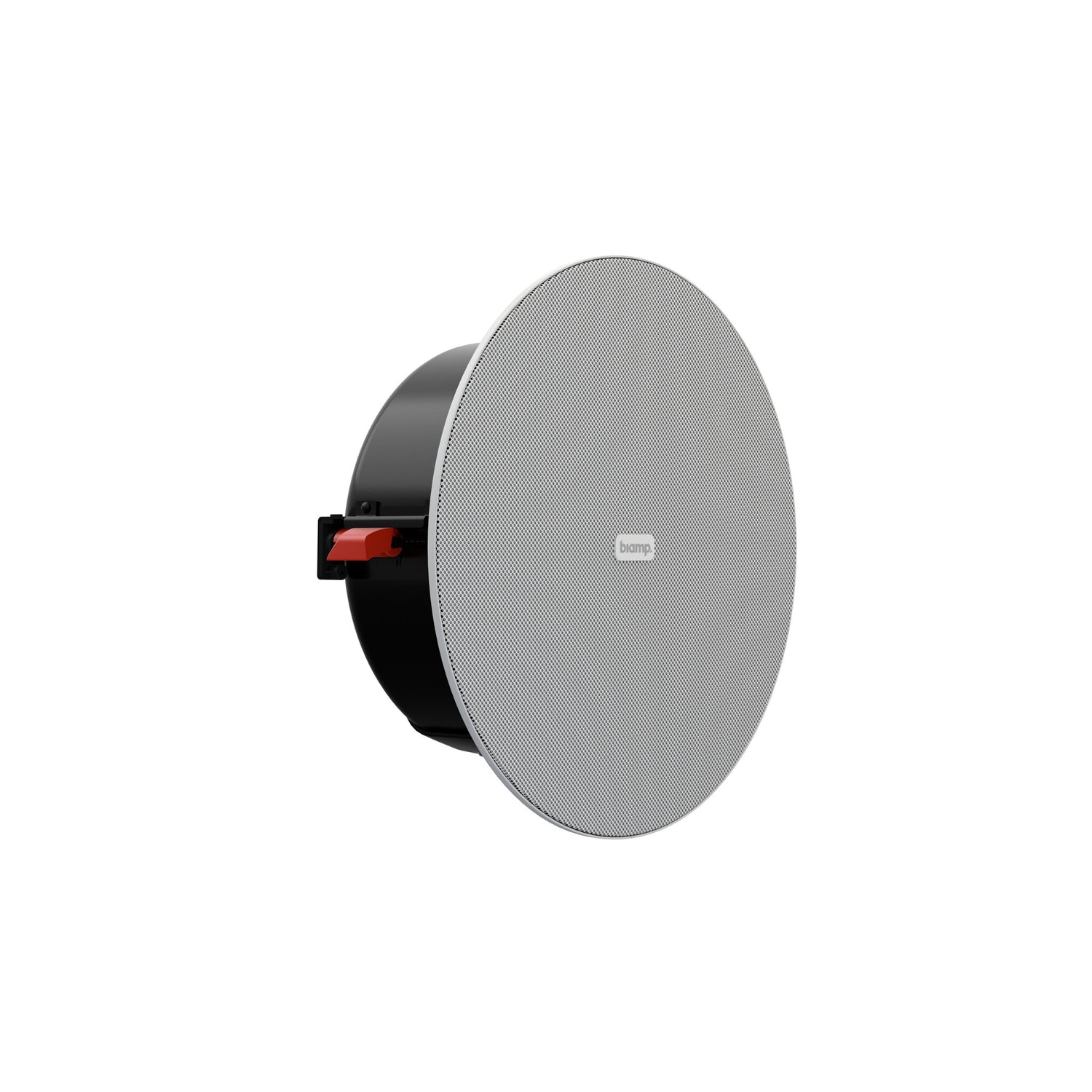

Ceiling mount, Passive with DSP, 155 Hz - 20 kHz, 165°, 4.5", 0.75", 4-position Euroblock, 258 x 97 mm, White

Only 3.8" (97 mm) in depth, the DX-IC4LP solves space problems that competing products cannot. Suitable for paging, background music, or to augment larger systems, the DX-IC4LP is a versatile performer. It installs quickly and provides exceptionally uniform coverage with excellent sonic properties.

Uniform voicing among the Desono DX product family makes for an easy match to the other models in the series, while a host of design innovations set the DX family of loudspeakers apart from other products in its size and price range. Featuring genuine coaxial design with separate magnets for the LF and HF drivers, the DX-IC4LP exhibits reduced distortion and industry-leading sensitivity permitting 3dB to 6dB greater output level, while requiring half the amplification power of competing products.

Certified for use with Zoom software.

Specifikationer

Loudspeakers
Speaker type 2-way
Speaker placement Ceiling-mountable
Number of drivers 2
Tweeter Yes
Number of tweeter drivers 1
Tweeter diameter 1.9 cm
Tweeter diameter (imperial) 1.91 cm (0.75")
Woofer Yes
Number of woofer drivers 1
Woofer diameter 11.4 cm
Woofer diameter (imperial) 11.4 cm (4.5")
Audio
RMS rated power 60 W
Peak Music Power Output (PMPO) 240 W
Frequency range 115 - 20000 Hz
Impedance 8 Ω
Sensitivity 91 dB
Crossover frequency 2000 Hz
Sound pressure level (max) 118 dB
Performance
Product colour White
Recommended usage Conferencing system
Suitable for outdoor use No
Certification Zoom; ETL listed to comply with UL1480A, UL2043 and CSA62368-1; Suitable for use in air handling spaces per NFPA 70 andNFPA 90
Amplifier
Amplifier No
Ports & interfaces
Connectivity technology Wired
Bluetooth No
Power
Power source type DC
Packaging data
Package width 680.7 mm
Package depth 231.1 mm
Package height 360.7 mm
Package weight 9.17 kg
Packaging content
Quantity per pack 1 pc(s)
Logistics data
Export Control Classification Number (ECCN) EAR99
Harmonized System (HS) code  8518210000
Other features
Country of origin China
