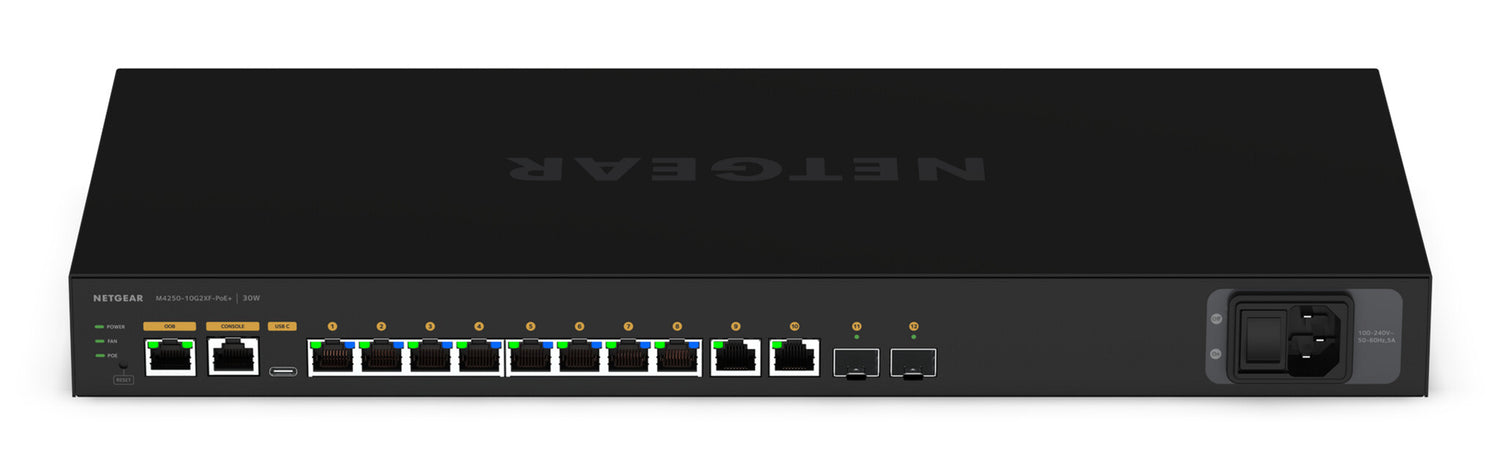

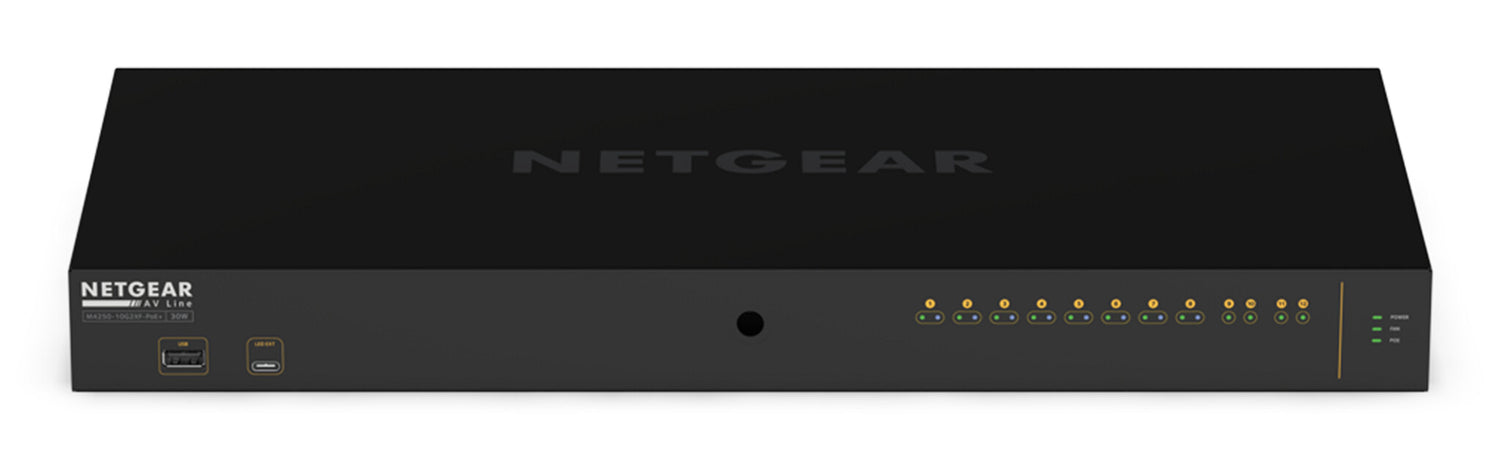

Biamp NMS-NG10GPX-AVB Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Biamp | Varenummer:
911.1966.900
Beskrivelse
Beskrivelse
AVB-enabled Netgear 10-port 1G switch, 8-ports w/ PoE+, 240W
The Biamp NMS-NG10GPX-AVB (NETGEAR model M4250-10G2XF-POE+) is a pro-grade managed switch designed from the ground up for 1G networked AV systems. The switch provides 10 1G ports and 2 10G SFP+ ports that all support AVB and Dante. Eight of the ports are PoE+ capable with 240W of total power budget. The NMS-NG10GPX-AVB is preconfigured by Biamp with the AVB license and is out-of-box ready for networked AV systems. Recommended applications include large conferencing spaces, divisible rooms, convenience paging, classrooms, etc.
Specifikationer
Specifikationer
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 2 |
| Network | |
|---|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x |
| 10G support | No |
| Full duplex | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Broadcast storm control | Yes |
| Link aggregation | Yes |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| Number of VLANs | 4093 |
| Data transmission | |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 60 Gbit/s |
| Throughput | 44.64 Mpps |
| Store-and-forward | Yes |
| Latency (1 Gbps) | 2.14 µs |
| Number of queues | 8 |
| Jumbo frames support | Yes |
| Jumbo frames | 12000 |
| Packet buffer memory | 16 MB |
| Security | |
|---|---|
| DHCP features | DHCP Option 82, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Authentication type | RADIUS |
| BPDU filtering/protection | Yes |
| Loop protection | Yes |
| SSH/SSL support | Yes |
| Authentication | MAC-based authentication |
| Multicast features | |
|---|---|
| Multicast support | Yes |
| IPv4 multicast entries | 2000 |
| IPv6 multicast entries | 2000 |
| Design | |
|---|---|
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | PoE, Power, Status |
| Performance | |
|---|---|
| Built-in processor | Yes |
| Processor model | ARM Cortex-A9 |
| Processor frequency | 1250 MHz |
| Internal memory | 2048 MB |
| Noise level | 39.22 dB |
| Mean time between failures (MTBF) | 947871 h |
| Power | |
|---|---|
| Power consumption (typical) | 306.4 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 240 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
| Heat dissipation | 1046.05 BTU/h |
| Weight & dimensions | |
|---|---|
| Width | 440 mm |
| Depth | 200 mm |
| Height | 43.2 mm |
| Weight | 2.96 kg |
| Packaging data | |
|---|---|
| Package width | 103.1 mm |
| Package depth | 206.8 mm |
| Package height | 47.5 mm |
| Package weight | 4.4 kg |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
