Biamp NPX H1040 Black Conference microphone

Biamp  |  Varenummer: 911.1840.900
Stregkode: 0810039103012,810039103012

Beskrivelse

MEMS, Cardioid, PoE, Gigabit Ethernet, RJ-45, 230 x 166 x 42 mm, 1220 g

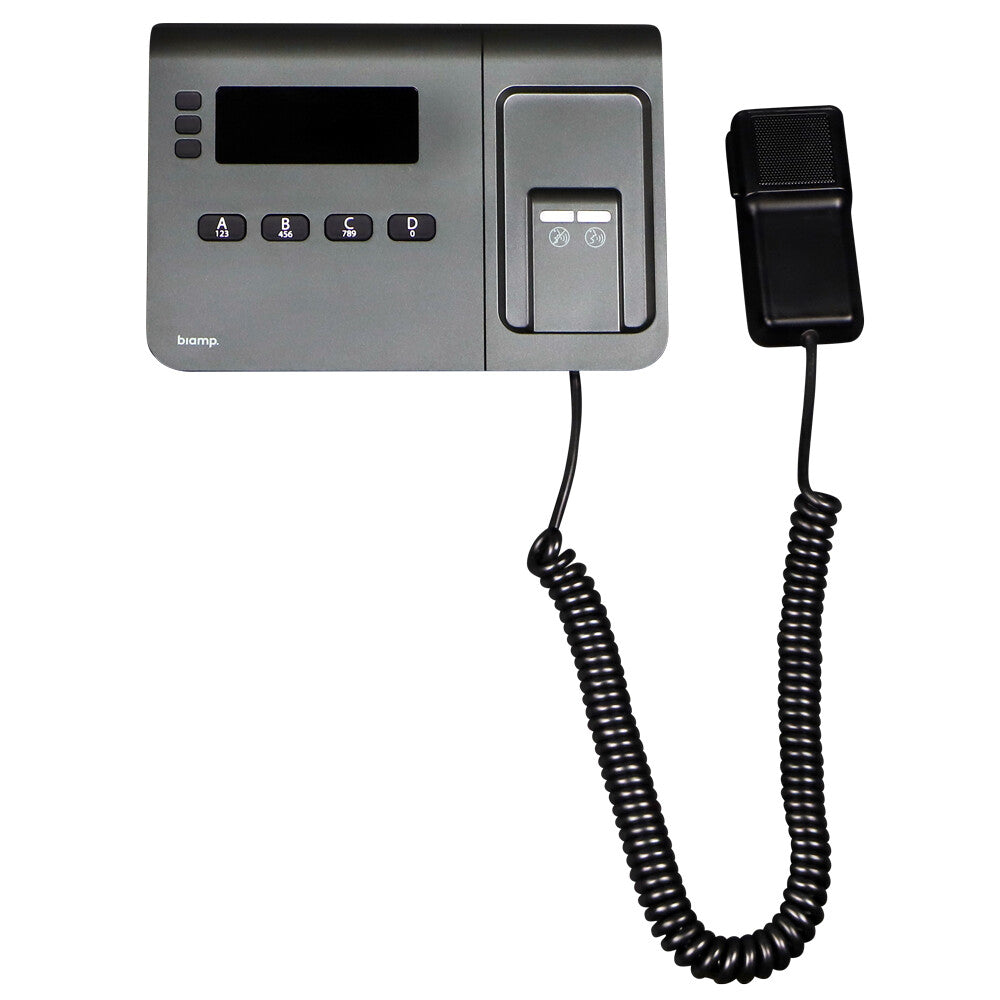

NPX H1040
The NPX H1040 is a 4-button convenience paging station with handheld microphone for use in Qt X and Tesira systems. The H1040 features embedded DSP and on-board memory to support standard and advanced public address functionalities. Digital audio and control data can be transmitted by either AVB or Dante. The NPX H1040 can store four user-configurable page codes and up to 10 prerecorded messages. Additionally, the H1040 supports both tabletop and wall mounting with a removable “foot” that allows the paging station to be mounted flat against any surface, and a K-slot is included for enhanced physical security via an optional Kensington® lock. The NPX H1040 meets convenience paging requirements for facilities of all sizes.

The NPX H1040 complies with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.

Specifikationer

Microphone
Type Conference microphone
Microphone frequency 150 - 16000 Hz
Microphone dynamic range 92 dB
Microphone Signal-to-Noise Ratio (SNR) 76 dB
Maximum sound pressure level (1kHz) 109 dB
Ports & interfaces
Connectivity technology Wired
Device interface RJ-45
Performance
Product colour Black
Control type Buttons
Country of origin United States
Power
Power source PoE
Sustainability
Sustainability compliance Yes
Weight & dimensions
Width 230 mm
Depth 166 mm
Height 42 mm
Microphone weight 1.22 kg
Packaging data
Package width 400.1 mm
Package depth 254 mm
Package height 139.7 mm
Package weight 1.65 kg
Packaging content
Number of products included 1 pc(s)
Technical details
Compliance certificates CE, Federal Communications Commission (FCC), RoHS
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 5 - 95%
Logistics data
Export Control Classification Number (ECCN) EAR99
Harmonized System (HS) code 8517620050
