Biamp NPX-H1100 Black Conference microphone

Biamp  |  Varenummer: 911.1841.900
Stregkode: 0810039103029,810039103029

Beskrivelse

MEMS, Cardioid, PoE, Gigabit Ethernet, RJ-45, 230 x 166 x 42 mm, 1220 g

NPX H1100

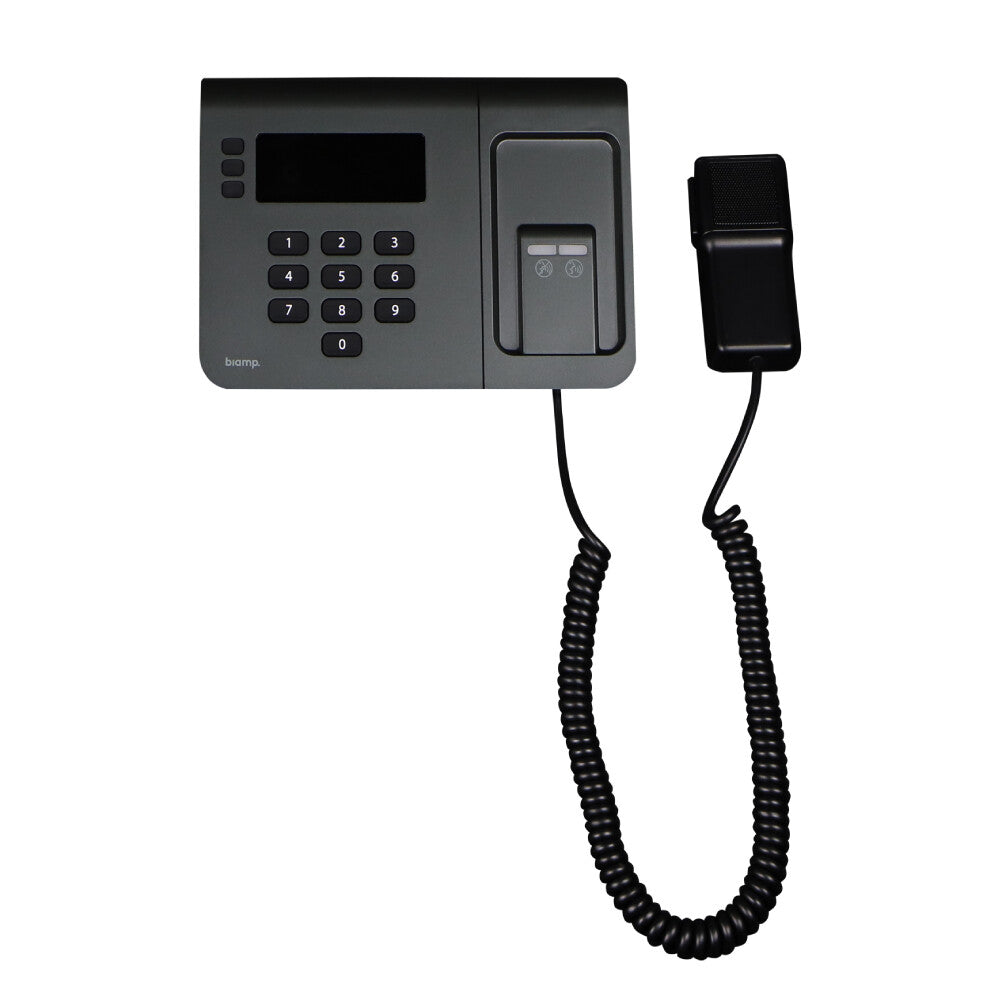

The NPX H1100 is a 10-button convenience paging station with handheld microphone for use in Qt X and Tesira systems. The H1100 features embedded DSP and on-board memory to support standard and advanced public address functionalities. Digital audio and control data can be transmitted by either AVB or Dante®. The NPX H1100 can store 999 user-configurable page codes and up to 10 prerecorded messages. Additionally, the H1100 supports both tabletop and wall mounting with a removable “foot” that allows the paging station to be mounted flat against any surface, and a K-slot is included for enhanced physical security via an optional Kensington® lock. The NPX H1100 meets convenience paging requirements for facilities of all sizes.

The NPX H1100 complies with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.

Specifikationer

Microphone
Maximum sound pressure level (1kHz) 109 dB
Microphone Signal-to-Noise Ratio (SNR) 76 dB
Microphone dynamic range 92 dB
Microphone frequency 150 - 16000 Hz
Type Conference microphone
Ports & interfaces
Device interface RJ-45
Connectivity technology Wired
Performance
Country of origin United States
Control type Buttons
Product colour Black
Power
Power source PoE
Sustainability
Sustainability compliance Yes
Weight & dimensions
Microphone weight 1.22 kg
Height 42 mm
Depth 166 mm
Width 230 mm
Packaging data
Package weight 1.22 kg
Package height 139.7 mm
Package depth 254 mm
Package width 400.1 mm
Packaging content
Number of products included 1 pc(s)
Technical details
Compliance certificates CE, Federal Communications Commission (FCC), RoHS
Operational conditions
Operating relative humidity (H-H) 5 - 95%
Operating temperature (T-T) 0 - 40 °C
Logistics data
Harmonized System (HS) code 8517620050
Export Control Classification Number (ECCN) EAR99
