Biamp Parlé TCM-X Black Conference microphone

Biamp  |  Varenummer: 911.0507.900
Stregkode: 0814367027071,814367027071

Beskrivelse

16-Element Digital Array Mic, RJ-45, D150 x 17 mm, 340 g+ Networks w/ DSP

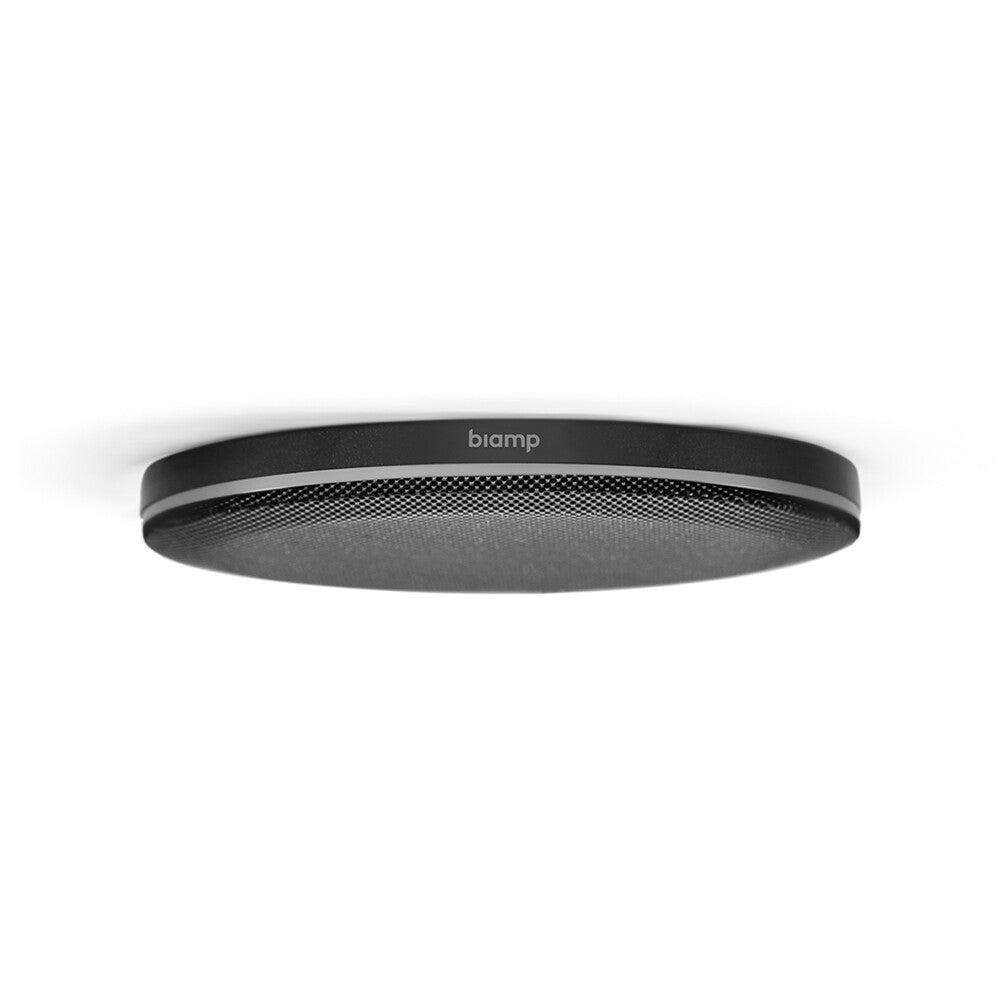

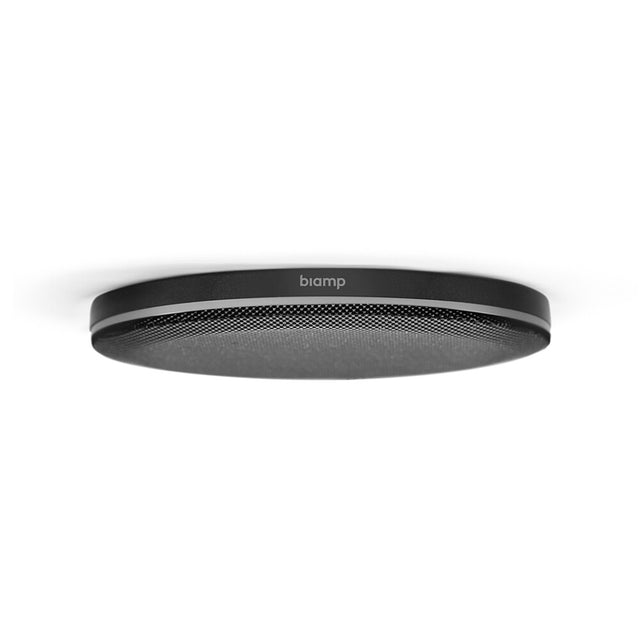

Parlé TCM-X Ceiling
The Parlé TCM-X is an AVB low-profile ceiling microphone for use in Tesira® systems. Comprising a network box and a ceiling microphone, each microphone includes Beamtracking technology with four 90-degree zones, providing full 360-degree coverage of the meeting space.

The TCM-X microphone delivers the same level of performance as our other Beamtracking microphones in a sleek, unobtrusive design that mounts to the ceiling. The TCM-X actively tracks and intelligently mixes conversations from around the table, allowing far-end participants to experience the conversation as they would a face-to-face meeting.

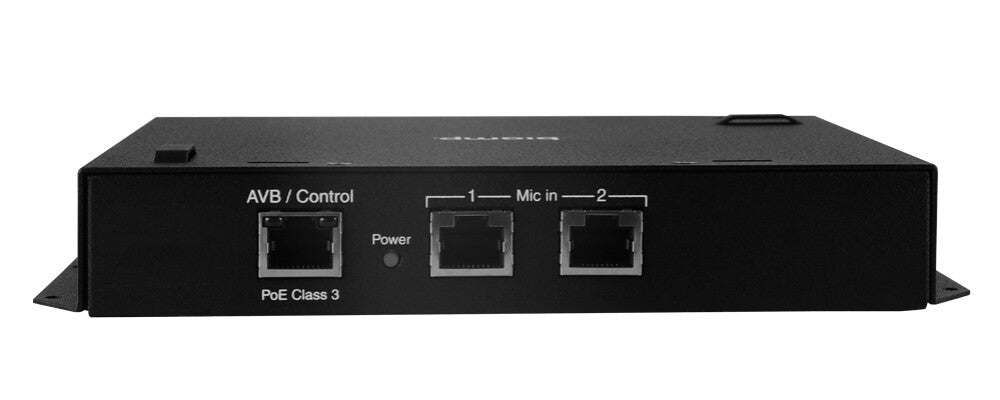

Each network box has its own digital signal processing module and comes with an additional RJ-45 connector to add an optional TCM-XEX to the network box. A maximum of two microphones are permitted per network box (one TCM-X or TCM-XA with TCM-XEX).

The TCM-X is well suited for a variety of room types and sizes with 10’ ceilings or lower that require high-quality audio solutions and low profile or unobtrusive microphones.

The Parlé TCM-X Black & Parlé TCM-X White comply with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.

Specifikationer

Microphone
Type Conference microphone
Microphone frequency 150 - 16000 Hz
Microphone dynamic range 92 dB
Microphone Signal-to-Noise Ratio (SNR) 76 dB
Maximum sound pressure level (1kHz) 109 dB
Ports & interfaces
Connectivity technology Wired
Device interface RJ-45
Performance
Product colour Black
Country of origin United States
Sustainability
Sustainability compliance Yes
Weight & dimensions
Height 17 mm
Diameter 15 cm
Microphone weight 340 g
Packaging data
Package width 177.8 mm
Package depth 254 mm
Package height 127 mm
Package weight 1.22 kg
Packaging content
Number of products included 1 pc(s)
General
Product family Parlé
Technical details
Compliance certificates CE, Federal Communications Commission (FCC), RoHS
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 5 - 95%
Logistics data
Export Control Classification Number (ECCN) EAR99
Harmonized System (HS) code 8518100000
