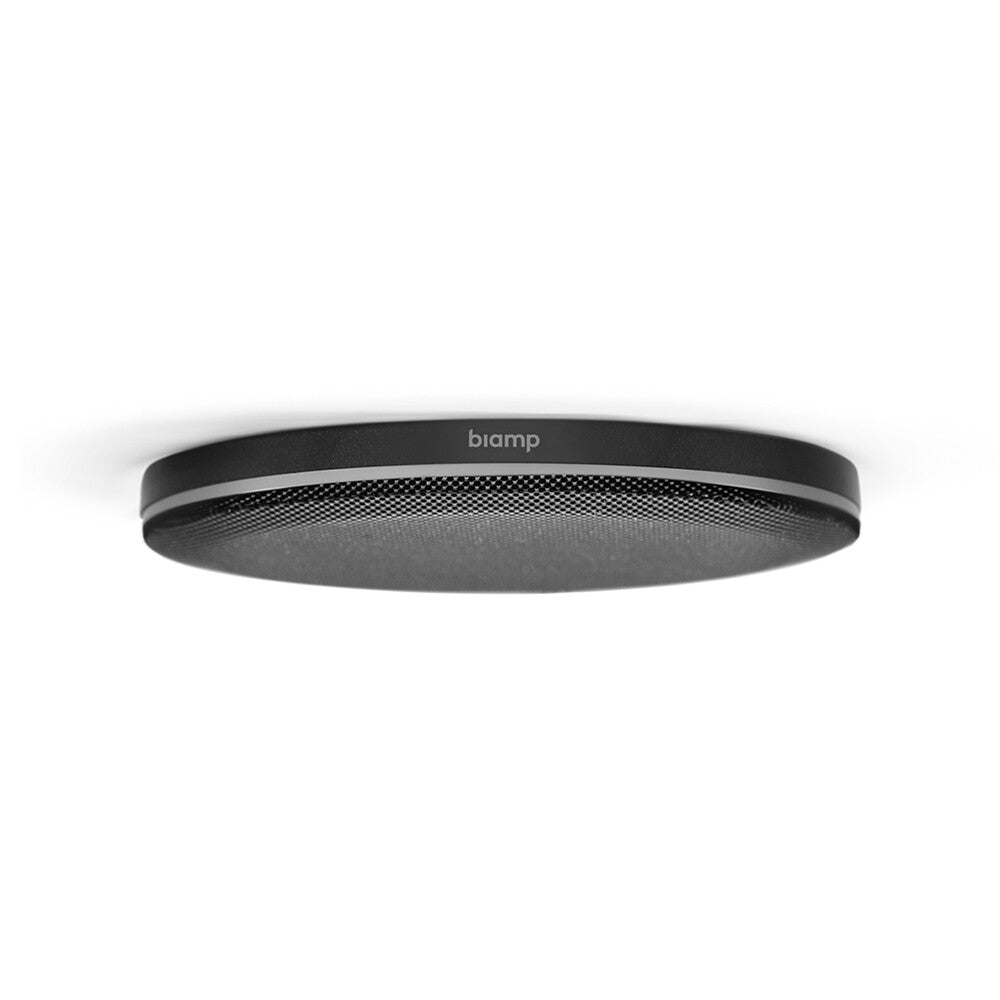

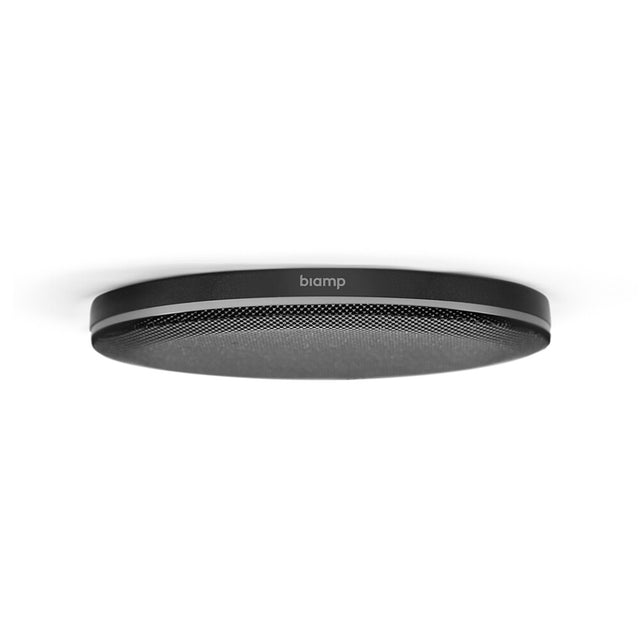

Biamp Parlé TCM-XEX Black Conference microphone
Biamp | Varenummer:
911.0509.900
Beskrivelse
Beskrivelse
16-Element Digital Array Mic, RJ-45, D150 x 17 mm, 340 g
Parlé TCM-XEX Ceiling
The Parlé TCM-XEX is an expansion AVB low-profile ceiling microphone for use in Tesira systems. Each microphone includes Beamtracking technology with four 90-degree zones, providing full 360-degree coverage of the meeting space.
The Parlé TCM-XEX is intended to be used as a second microphone in conjunction with the TCM-X or TCM-XA; it cannot operate as a standalone device.
The Parlé TCM-XEX Black & Parlé TCM-XEX White comply with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.
Specifikationer
Specifikationer
| Microphone | |
|---|---|
| Maximum sound pressure level (1kHz) | 109 dB |
| Microphone Signal-to-Noise Ratio (SNR) | 76 dB |
| Microphone dynamic range | 92 dB |
| Microphone frequency | 150 - 16000 Hz |
| Type | Conference microphone |
| Ports & interfaces | |
|---|---|
| Device interface | RJ-45 |
| Connectivity technology | Wired |
| Performance | |
|---|---|
| Country of origin | United States |
| Product colour | Black |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Weight & dimensions | |
|---|---|
| Microphone weight | 340 g |
| Diameter | 15 cm |
| Height | 17 mm |
| Packaging data | |
|---|---|
| Package weight | 340 g |
| Package height | 76.2 mm |
| Package depth | 203.2 mm |
| Package width | 177.8 mm |
| Packaging content | |
|---|---|
| Number of products included | 1 pc(s) |
| General | |
|---|---|
| Product family | Parlé |
| Technical details | |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 8518100000 |
| Export Control Classification Number (ECCN) | EAR99 |
