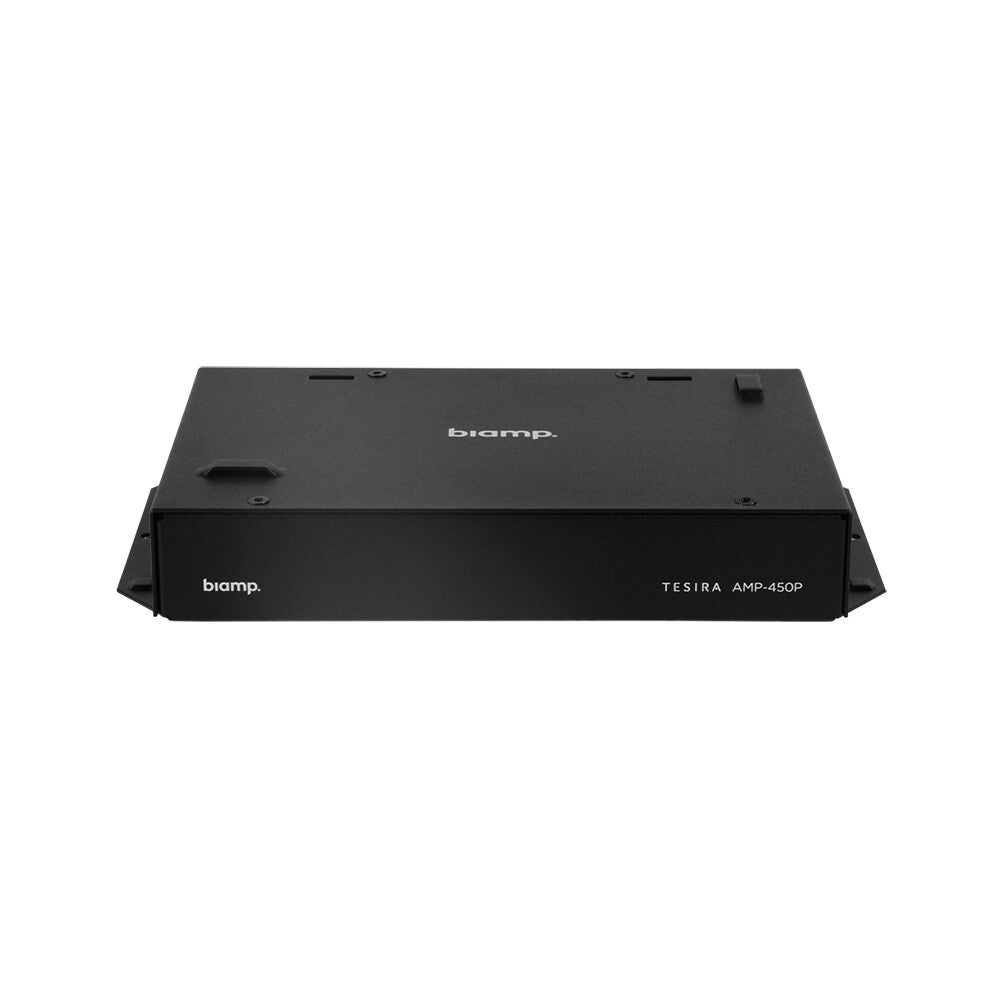

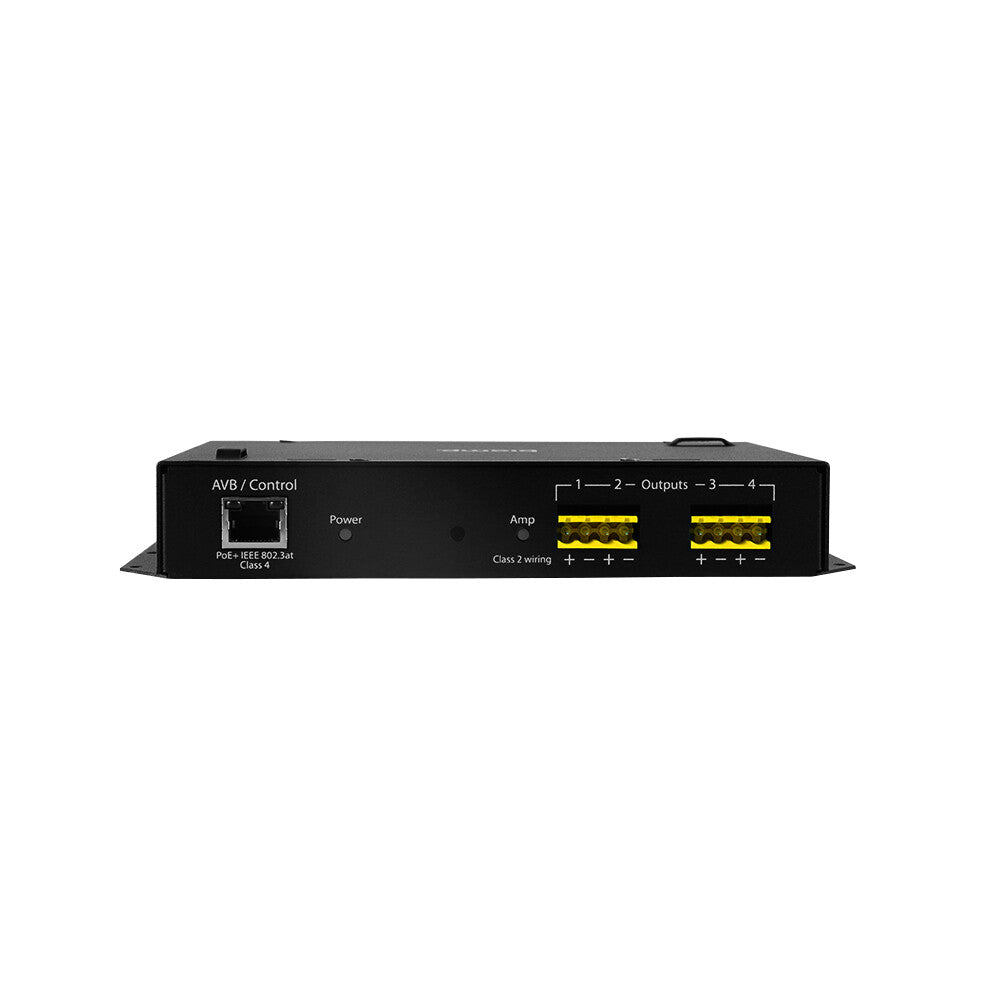

Biamp Tesira AMP-450P Black
Biamp | Varenummer:
911.0010.900
Beskrivelse
Beskrivelse
4-Ch, Class D, 4 x 50W, PoE+, 195 x 120 x 30 mm, 0.7 kg
Tesira AMP-450P
The Tesira AMP-450P is an AVB/TSN enabled, PoE+, four-channel amplifier. The output channels are software configurable, including selectable power versus channel count. The AMP-450P includes an internal limiter, and is capable of providing 3 watts of continuous power to all four channels. The Tesira AMP-450P is also capable of operating in a burst mode to handle peak signals, providing up to 50 watts (4Ω) or 30 watts (8Ω) per channel.
The Tesira AMP-450P complies with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.
Specifikationer
Specifikationer
| Audio | |
|---|---|
| Frequency range | 20 - 20000 Hz |
| Crosstalk (1kHz) | -90 dB |
| RMS power output per channel (8 Ohm) | 30 W |
| RMS power output per channel (4 Ohm) | 50 W |
| Total Harmonic Distortion (THD) | 0.3% |
| Amplifier class | D |
| Peak power per channel | 50 W |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Speakers connectivity type | Phoenix 4-pin |
| Technical details | |
|---|---|
| Sustainability compliance | Yes |
| Country of origin | United States |
| Cooling type | Passive |
| Channels quantity | 4 channels |
| Compliance certificates | RoHS, Federal Communications Commission (FCC), CE |
| Product colour | Black |
| Connectivity technology | Wired |
| Power | |
|---|---|
| Power consumption (typical) | 30 W |
| Weight & dimensions | |
|---|---|
| Weight | 700 g |
| Height | 30 mm |
| Depth | 120 mm |
| Width | 195 mm |
| Operational conditions | |
|---|---|
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Indication | |
|---|---|
| LED indicators | Yes |
| General | |
|---|---|
| Product family | Tesira |
| Packaging content | |
|---|---|
| Manual | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 8518402000 |
| Export Control Classification Number (ECCN) | EAR99 |
| Packaging data | |
|---|---|
| Package weight | 700 g |
| Package height | 101.6 mm |
| Package depth | 304.8 mm |
| Package width | 254 mm |
