Biamp Tesira DAN-1 CK Internal
Biamp | Varenummer:
909.0407.900
Beskrivelse
Beskrivelse

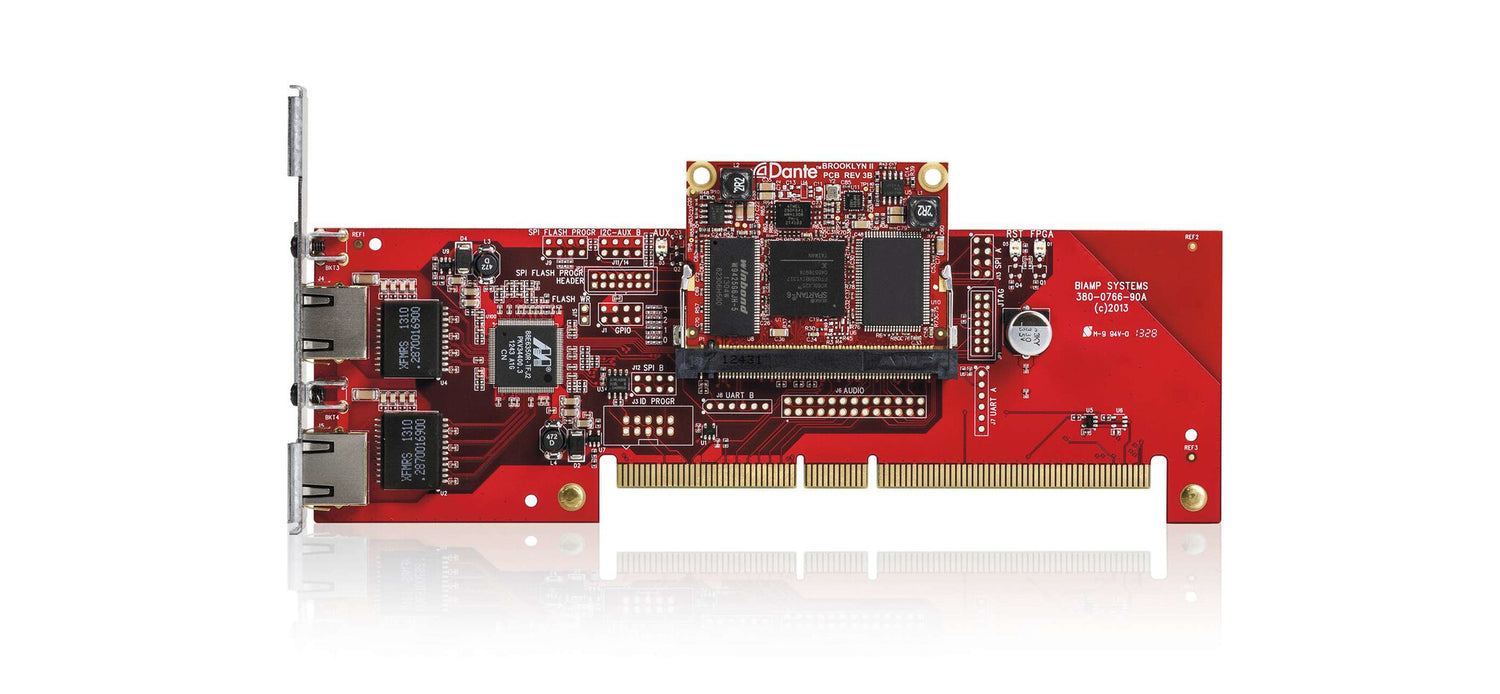

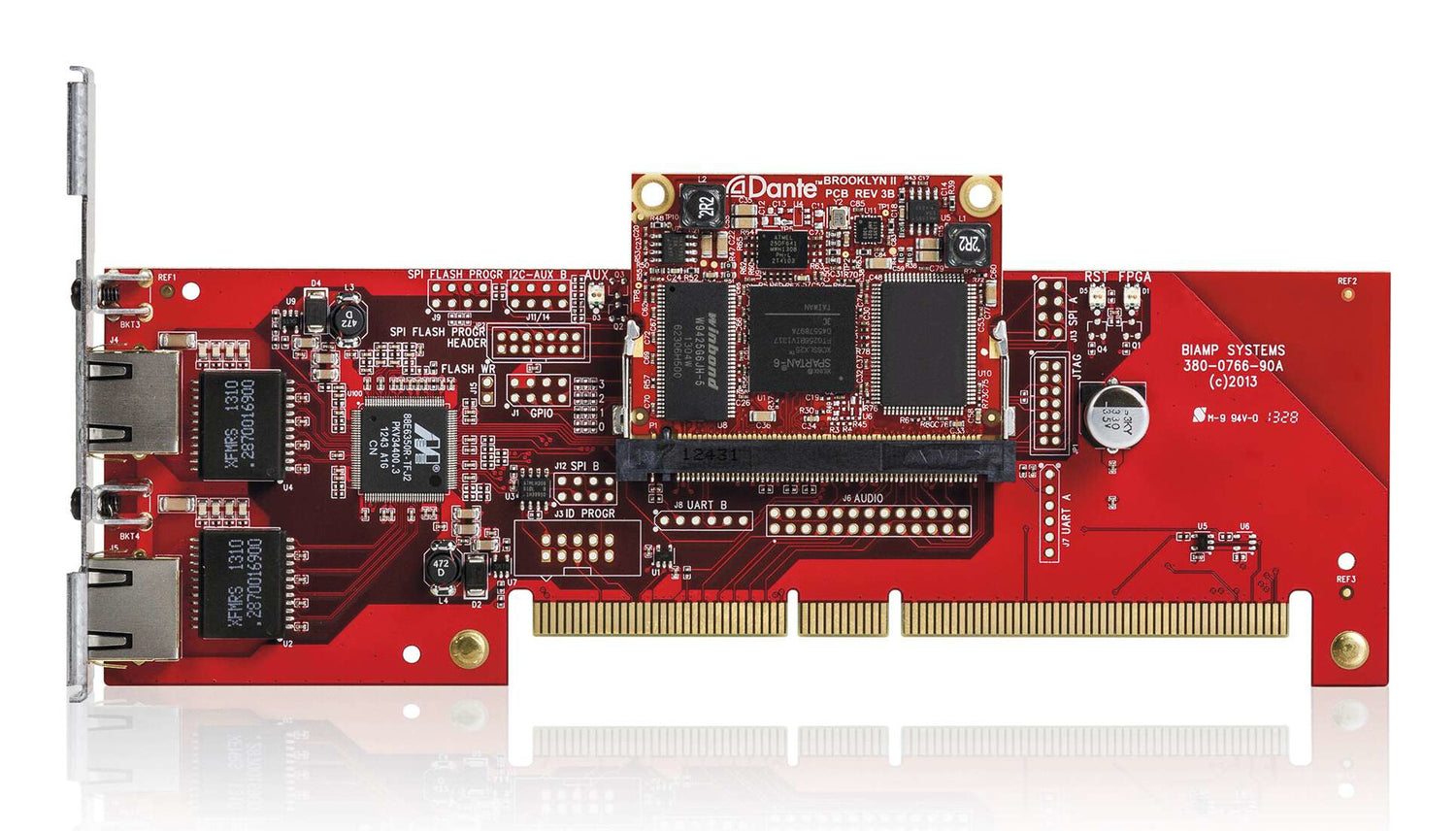

DAN-1 optional digital audio networking card kit
The Tesira DAN-1 is an optional digital audio networking card for Tesira SERVER or SERVER-IO and provides an interface to other audio devices utilizing the Dante™ networking protocol from Audinate®. The DAN-1 card can be factory installed or installed in the field. Featuring the Brooklyn II module, the DAN-1 allows for up to 64 x 64 channels of digital audio into and out of a Tesira system.
The Tesira DAN-1 & Tesira DAN-1 CK comply with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.
Specifikationer
Specifikationer
| Audio | |
|---|---|
| Internal | Yes |
| Ports & interfaces | |
|---|---|
| Line-out | Yes |
| Line-in | Yes |
| Features | |
|---|---|
| Product colour | Multicolour |
| Weight & dimensions | |
|---|---|
| Package weight | 180 g |
| Package height | 101.6 mm |
| Package depth | 330.2 mm |
| Package width | 254 mm |
| General | |
|---|---|
| Product family | Tesira |
| Technical details | |
|---|---|
| Sustainability compliance | Yes |
| I/O ports | 2x RJ-45 |
| Channels quantity | 32 channels |
| Compliance certificates | RoHS, Trade Agreements Act (TAA) |
| Logistics data | |
|---|---|
| Country of origin | United States |
| Export Control Classification Number (ECCN) | EAR99 |
| Harmonized System (HS) code | 8517620050 |
