Biamp Tesira FORTÉ AVB CI
Biamp | Varenummer:
912.0395.900
Beskrivelse
Beskrivelse
20Hz to 20kHz, +4dBu, 108 dB, 100-240VAC 50/60Hz, RJ-45, RS-232

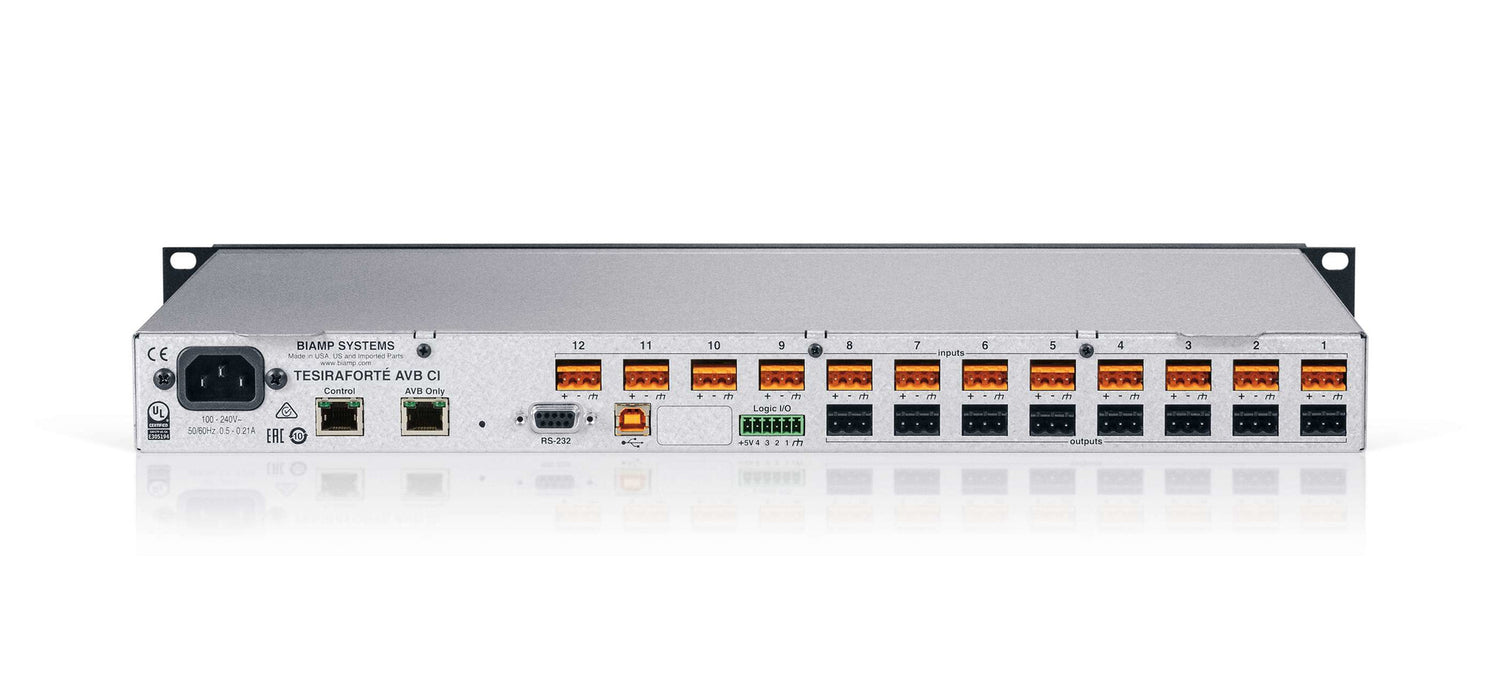

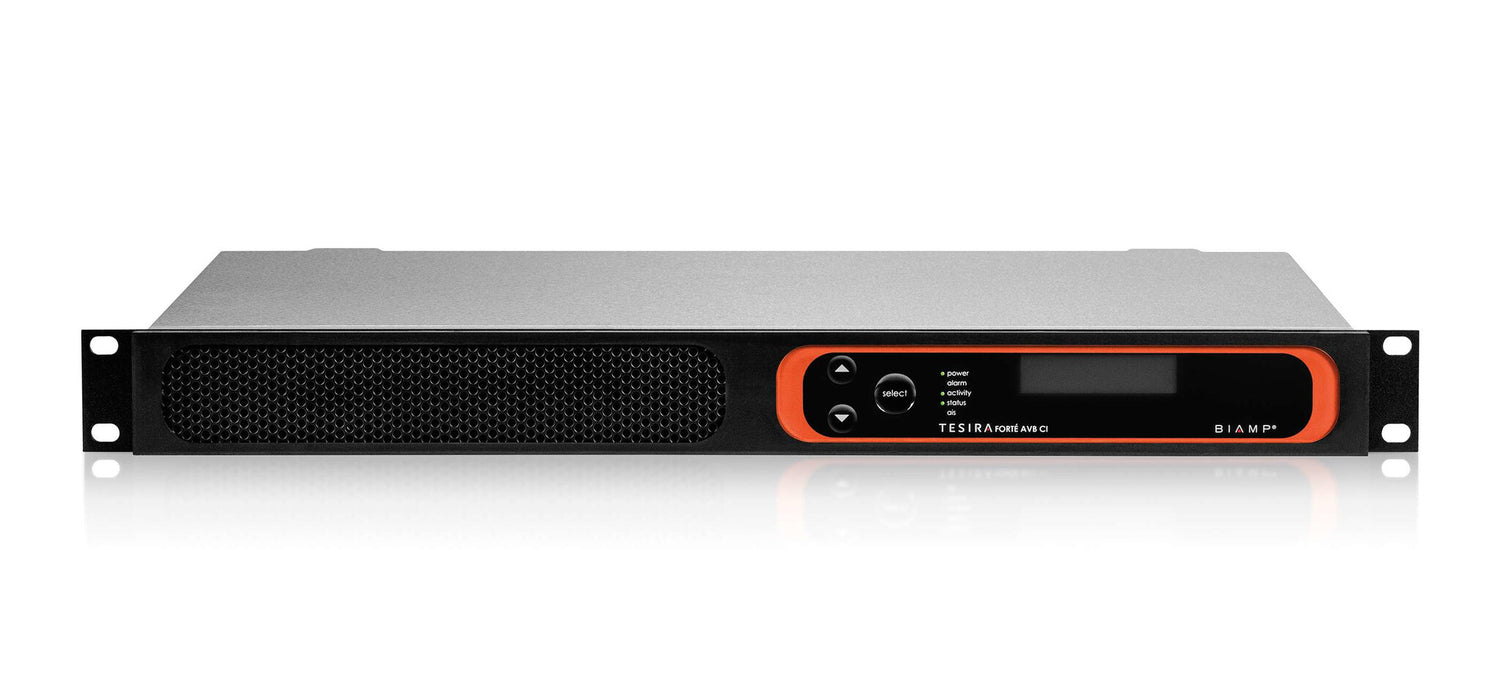

The TesiraFORTÉ AVB CI is a digital audio server with 12 analog inputs — each with Acoustic Echo Cancellation (AEC) technology, 8 analog outputs, and up to 8 channels of configurable USB audio. TesiraFORTÉ AVB CI utilizes AVB/TSN digital audio networking, and can be used as a standalone device or combined with other TesiraFORTÉ AVB devices and Tesira servers, expanders, endpoints, and controllers.
The TesiraFORTÉ AVB CI complies with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.
Specifikationer
Specifikationer
| Features | |
|---|---|
| Rack capacity | 1U |
| Rack mounting | Yes |
| Product colour | Black, Metallic |
| Output impedance | 207 Ω |
| Input impedance | 8000 Ω |
| Display | |
|---|---|
| Display type | OLED |
| Built-in display | Yes |
| Audio | |
|---|---|
| Dynamic range | 108 dB |
| Total Harmonic Distortion plus Noise (THD+N) | 0.006% |
| Frequency range | 20 - 20000 Hz |
| Network | |
|---|---|
| Supported network protocols | IEEE 802.1X |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
|---|---|
| RS-232 ports | 1 |
| Analog audio output terminal ports | 8 |
| Analog audio input terminal ports | 12 |
| USB ports quantity | 1 |
| RJ-45 ports quantity | 1 |
| Power | |
|---|---|
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 35 W |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 - 98% |
| Operating temperature (T-T) | 0 - 40 °C |
| Certificates | |
|---|---|
| Certification | FCC Part 15B (USA)CE marked (Europe)UL und C-UL listed (USA and Canada)RCM (Australia)RoHS Directive (Europe) |
| Weight & dimensions | |
|---|---|
| Weight | 3.63 kg |
| Height | 44 mm |
| Depth | 267 mm |
| Width | 483 mm |
| Packaging data | |
|---|---|
| Package weight | 4.9 kg |
| Package height | 177.8 mm |
| Package depth | 533.4 mm |
| Package width | 406.4 mm |
| General | |
|---|---|
| Product family | Tesira |
| Logistics data | |
|---|---|
| Export Control Classification Number (ECCN) | EAR99 |
| Logistics data | |
|---|---|
| Country of origin | United States |
