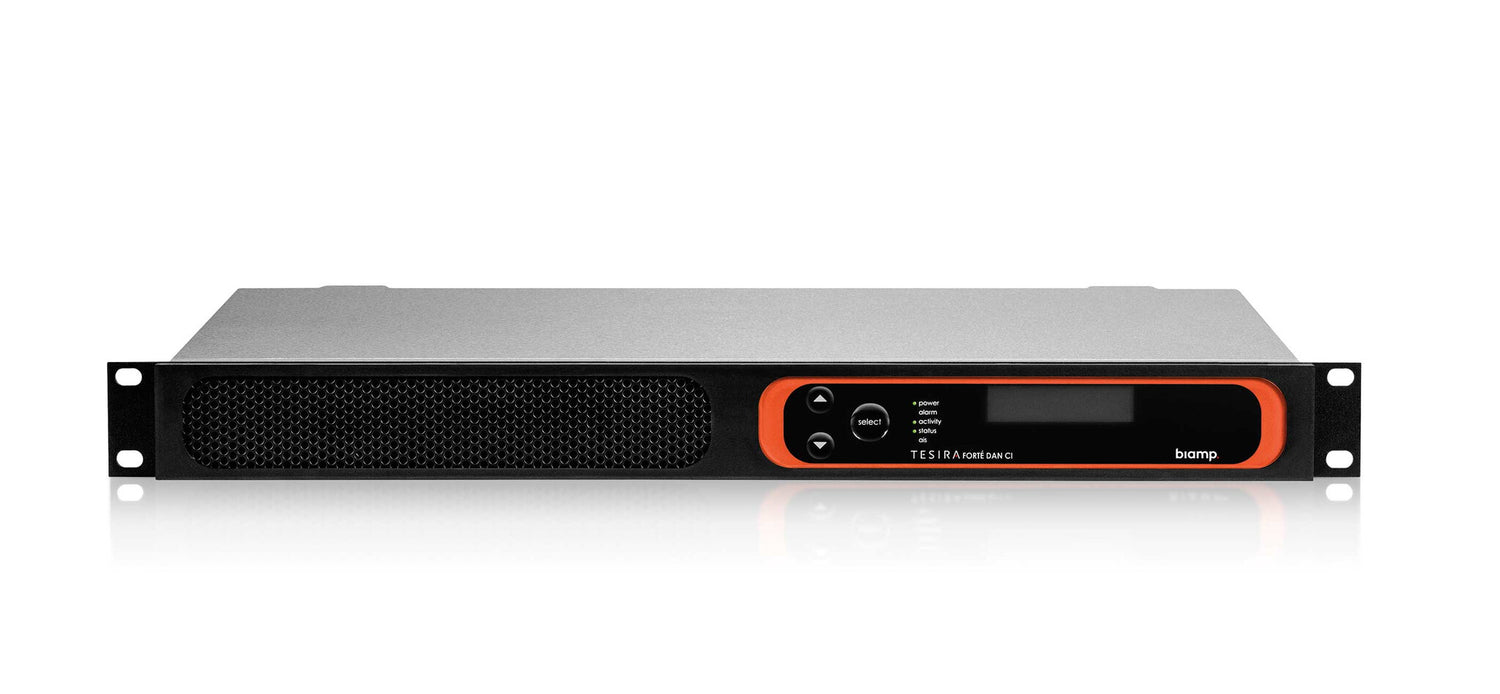

Biamp Tesira FORTÉ DAN CI
Biamp | Varenummer:
912.0447.900
Beskrivelse
Beskrivelse
32 x 32 Ch, 2 x RJ-45, RS-232, 2-line OLED, 108 dB
The TesiraFORTÉ DAN CI is a digital audio server with 12 analog inputs and 8 analog outputs, and includes Acoustic Echo Cancellation (AEC) technology on all 12 inputs. It includes up to 8 channels of configurable USB audio and Dante digital audio networking.
The TesiraFORTÉ DAN CI complies with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.
Specifikationer
Specifikationer
| Features | |
|---|---|
| Input impedance | 8000 Ω |
| Output impedance | 207 Ω |
| Product colour | Black, Metallic |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Display | |
|---|---|
| Built-in display | Yes |
| Display type | OLED |
| Audio | |
|---|---|
| Frequency range | 20 - 20000 Hz |
| Total Harmonic Distortion plus Noise (THD+N) | 0.006% |
| Dynamic range | 108 dB |
| Network | |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| Supported network protocols | IEEE 802.1X |

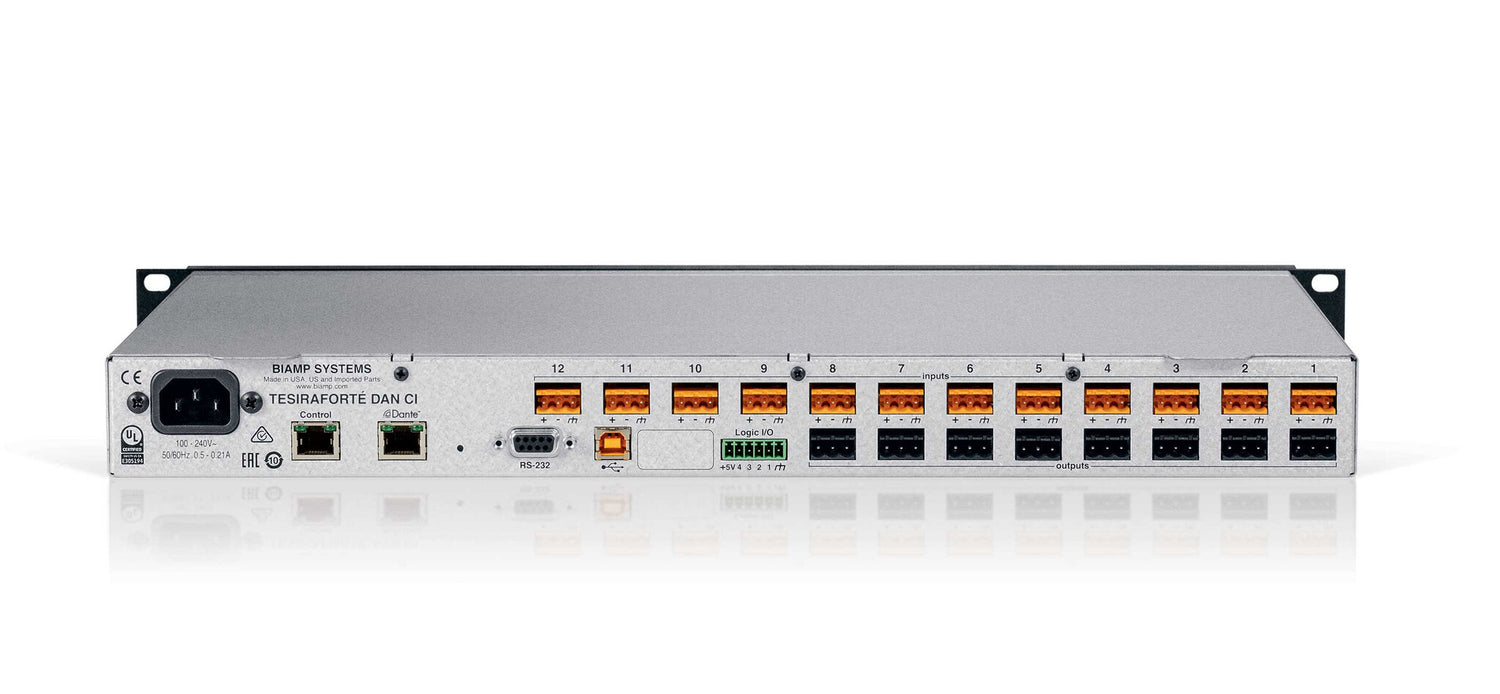

| Ports & interfaces | |
|---|---|
| RJ-45 ports quantity | 1 |
| USB ports quantity | 1 |
| Analog audio input terminal ports | 12 |
| Analog audio output terminal ports | 8 |
| RS-232 ports | 1 |
| Power | |
|---|---|
| Power consumption (typical) | 35 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 98% |
| Certificates | |
|---|---|
| Certification | FCC Part 15B (USA)CE marked (Europe)UL und C-UL listed (USA and Canada)RCM (Australia)RoHS Directive (Europe) |
| Weight & dimensions | |
|---|---|
| Width | 483 mm |
| Depth | 267 mm |
| Height | 44 mm |
| Weight | 3.63 kg |
| Packaging data | |
|---|---|
| Package width | 406.4 mm |
| Package depth | 533.4 mm |
| Package height | 177.8 mm |
| Package weight | 4.9 kg |
| General | |
|---|---|
| Product family | Tesira |
| Logistics data | |
|---|---|
| Country of origin | United States |
| Logistics data | |
|---|---|
| Export Control Classification Number (ECCN) | EAR99 |
Download
Download
PDF download:
Biamp Tesira FORTÉ DAN CI
