Biamp Tesira FORTÉ DAN VT
Biamp | Varenummer:
912.0451.900
Beskrivelse
Beskrivelse
20Hz to 20kHz, 100-240VAC 50/60Hz, 35 W, 108 dB

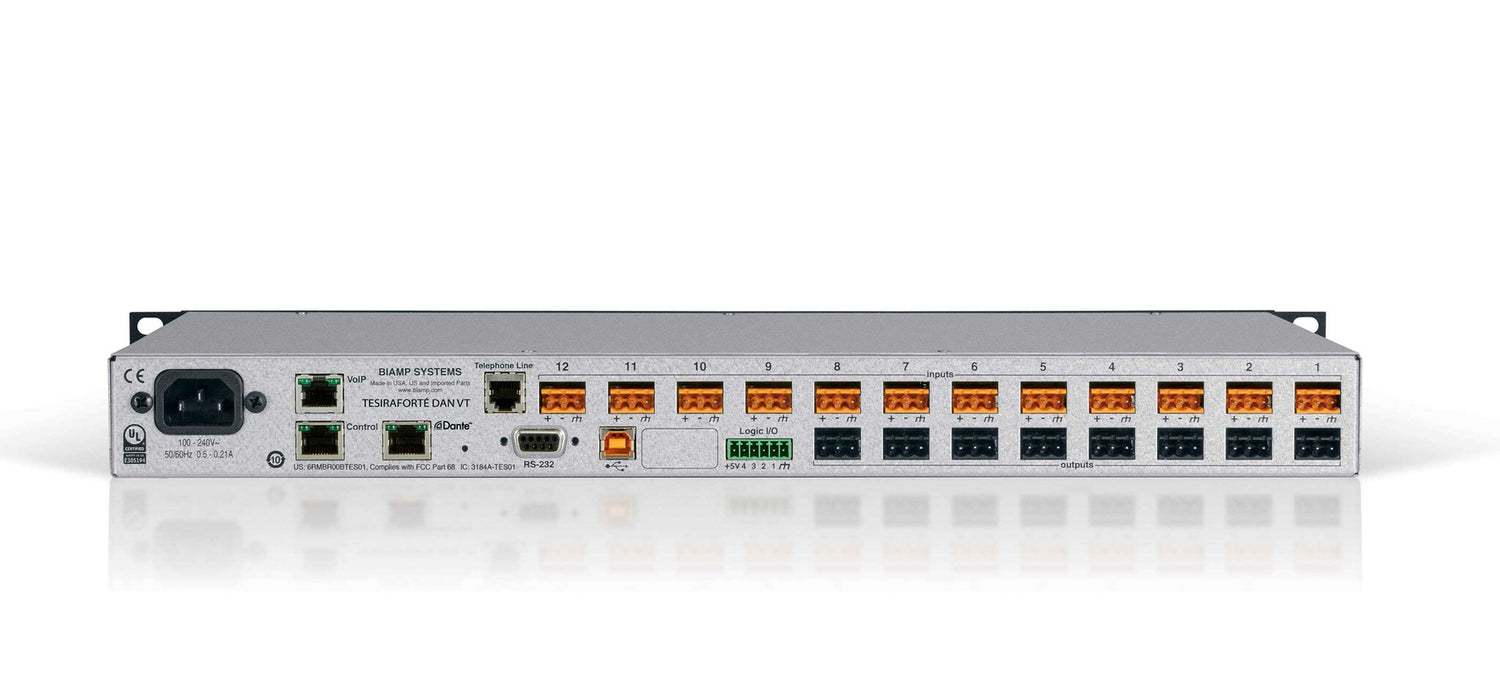

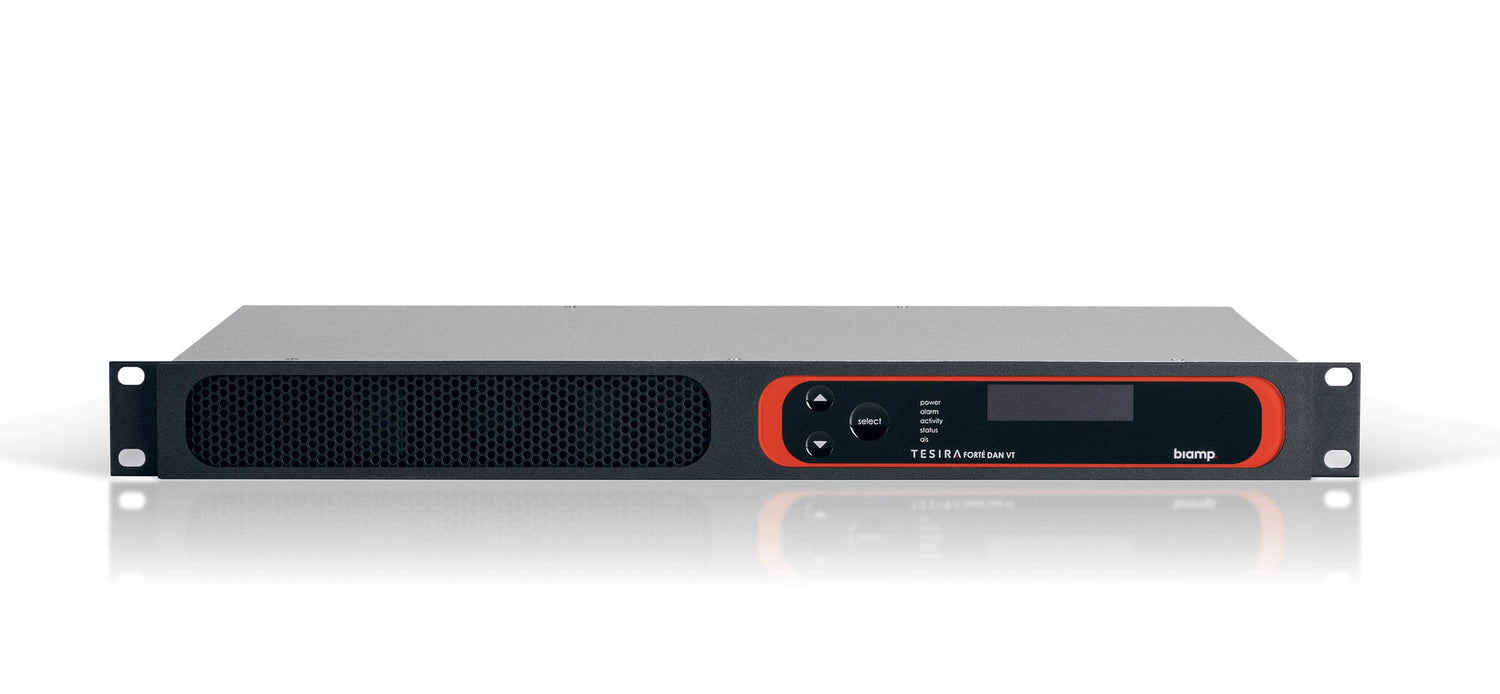

The TesiraFORTÉ DAN VT is a digital audio server with 12 analog inputs and 8 analog outputs, and includes Acoustic Echo Cancellation (AEC) technology on all 12 inputs. It includes up to 8 channels of configurable USB audio, a 2-channel VoIP interface, a standard FXO telephone interface, and Dante digital audio networking.
The TesiraFORTÉ DAN VT complies with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.
Specifikationer
Specifikationer
| Features | |
|---|---|
| Input impedance | 8000 Ω |
| Output impedance | 207 Ω |
| Product colour | Black, Metallic |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Display | |
|---|---|
| Built-in display | Yes |
| Display type | OLED |
| Audio | |
|---|---|
| Frequency range | 20 - 20000 Hz |
| Total Harmonic Distortion plus Noise (THD+N) | 0.006% |
| Dynamic range | 108 dB |
| Network | |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| Supported network protocols | IEEE 802.1X |
| Ports & interfaces | |
|---|---|
| RJ-45 ports quantity | 1 |
| USB ports quantity | 1 |
| Analog audio input terminal ports | 12 |
| Analog audio output terminal ports | 8 |
| RS-232 ports | 1 |
| Power | |
|---|---|
| Power consumption (typical) | 35 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 98% |
| Certificates | |
|---|---|
| Certification | FCC Part 15B (USA)CE marked (Europe)UL und C-UL listed (USA and Canada)RCM (Australia)RoHS Directive (Europe) |
| Weight & dimensions | |
|---|---|
| Width | 483 mm |
| Depth | 267 mm |
| Height | 44 mm |
| Weight | 3.63 kg |
| Packaging data | |
|---|---|
| Package width | 406.4 mm |
| Package depth | 533.4 mm |
| Package height | 177.8 mm |
| Package weight | 4.81 kg |
| General | |
|---|---|
| Product family | Tesira |
| Logistics data | |
|---|---|
| Country of origin | United States |
| Logistics data | |
|---|---|
| Export Control Classification Number (ECCN) | 5A002 |
Download
Download
PDF download:
Biamp Tesira FORTÉ DAN VT
