Biamp Tesira FORTÉ DAN VT4
Biamp | Varenummer:
912.0453.900
Beskrivelse
Beskrivelse
20Hz to 20kHz, 100-240VAC 50/60Hz, 35 W, 108 dB

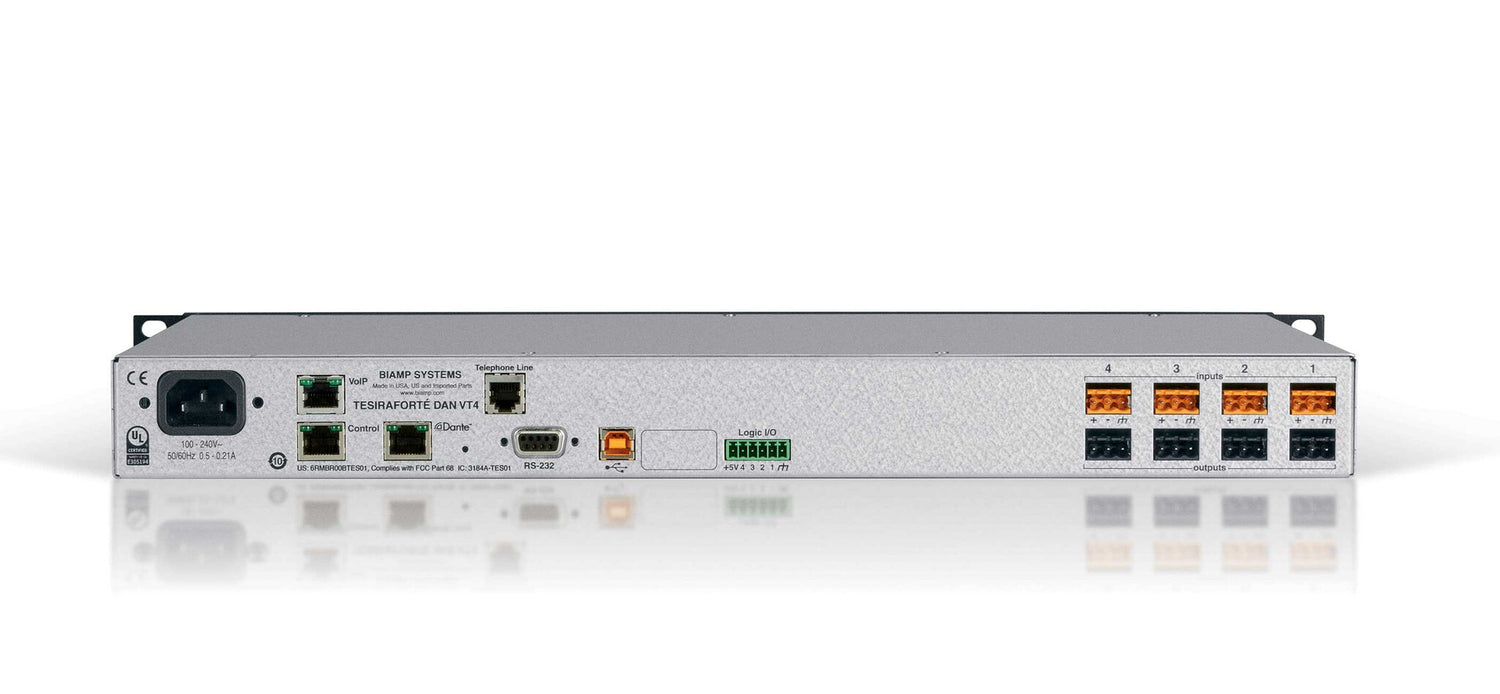

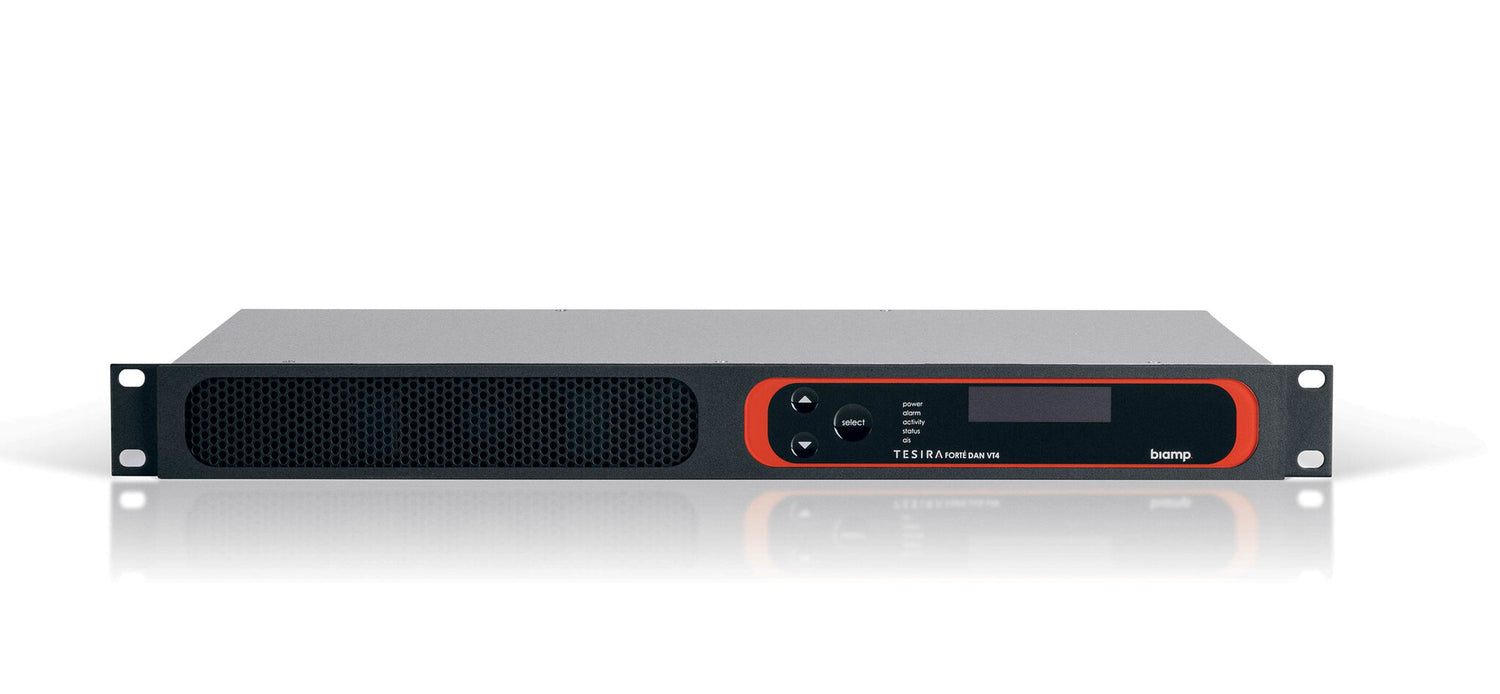

The TesiraFORTÉ DAN VT4 is a digital audio server with 4 analog inputs and 4 analog outputs, and includes Acoustic Echo Cancellation (AEC) technology on all 4 inputs. It includes up to 8 channels of configurable USB audio, a 2-channel VoIP interface, a standard FXO telephone interface, and Dante digital audio networking.
The TesiraFORTÉ DAN VT4 complies with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.
Specifikationer
Specifikationer
| Features | |
|---|---|
| Rack capacity | 1U |
| Rack mounting | Yes |
| Product colour | Black, Metallic |
| Output impedance | 207 Ω |
| Input impedance | 8000 Ω |
| Display | |
|---|---|
| Display type | OLED |
| Built-in display | Yes |
| Audio | |
|---|---|
| Dynamic range | 108 dB |
| Total Harmonic Distortion plus Noise (THD+N) | 0.006% |
| Frequency range | 20 - 20000 Hz |
| Network | |
|---|---|
| Supported network protocols | IEEE 802.1X |
| Ethernet interface type | Gigabit Ethernet |
| Ports & interfaces | |
|---|---|
| RS-232 ports | 1 |
| Analog audio output terminal ports | 4 |
| Analog audio input terminal ports | 4 |
| USB ports quantity | 1 |
| RJ-45 ports quantity | 1 |
| Power | |
|---|---|
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 35 W |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 - 98% |
| Operating temperature (T-T) | 0 - 40 °C |
| Certificates | |
|---|---|
| Certification | FCC Part 15B (USA)FCC Part 68 (USA)Industry Canada CS-03 (Canada)CE marked (Europe)UL und C-UL listed (USA and Canada)RCM (Australia)RoHS Directive (Europe) |
| Weight & dimensions | |
|---|---|
| Weight | 3.63 kg |
| Height | 44 mm |
| Depth | 267 mm |
| Width | 483 mm |
| Packaging data | |
|---|---|
| Package weight | 4.72 kg |
| Package height | 177.8 mm |
| Package depth | 533.4 mm |
| Package width | 406.4 mm |
| General | |
|---|---|
| Product family | Tesira |
| Logistics data | |
|---|---|
| Export Control Classification Number (ECCN) | 5A002 |
| Logistics data | |
|---|---|
| Country of origin | United States |
