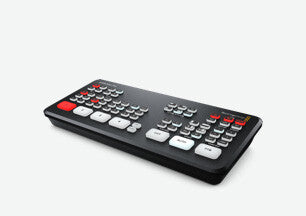

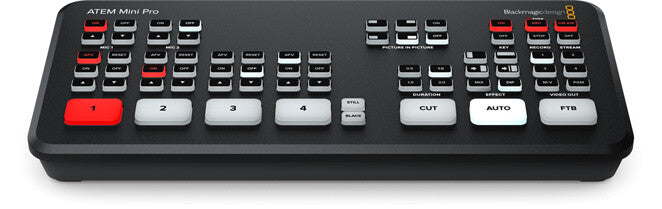

Blackmagic Design ATEM Mini Pro Full HD
Blackmagic Design | Varenummer:
SWATEMMINIBPR
Beskrivelse
Beskrivelse
4 x HDMI In, 1 HDMI Out, USB-C, Ethernet, 2 x Mic, 237.5 x 103.5 x 35 mm, 550 g
ATEM Mini Pro is fast to set up and easy to use. It includes 4 standards converted HDMI inputs, USB webcam out, HDMI out, Fairlight audio mixer with EQ and dynamics, DVE for picture in picture, transition effects, green screen chroma key, 20 stills media pool for titles and free ATEM Software Control. ATEM Mini Pro also includes direct recording to USB flash disks in H.264 and direct streaming via Ethernet to YouTube Live and more. There's also a multiview with 4 cameras, media, preview and program plus status of recording, streaming and audio.
Specifikationer
Specifikationer
| Video | |
|---|---|
| HD type | Full HD |
| Video resolutions | 1920 x 1080,1280 x 720 pixels |
| Supported video modes | 720i, 720p, 1080i, 1080p |
| Maximum frame rate | 60 fps |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Display | |
|---|---|
| Built-in display | No |
| Ports & interfaces | |
|---|---|
| HDMI in | 4 |
| Number of HDMI outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Power | |
|---|---|
| Power source type | AC |
| Design | |
|---|---|
| Product colour | Black |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| System requirements | |
|---|---|
| Windows operating systems supported | Yes |
| Mac compatibility | Yes |
| Mac operating systems supported | Yes |
| Weight & dimensions | |
|---|---|
| Width | 237.5 mm |
| Depth | 103.5 mm |
| Height | 35 mm |
| Weight | 550 g |
| Packaging content | |
|---|---|
| Manual | Yes |
| Logistics data | |
|---|---|
| Country of origin | Singapore |
Blackmagic Design ATEM Mini Pro Full HD
Nøgle specifikationer
Nøgle specifikationer
-
SKI nummerSKI507024-00205
