Bose ControlSpace EX-1280 Black Ethernet LAN 18 - 20000 Hz 1U
Beskrivelse
Beskrivelse
With an open-architecture, single-rack-unit design, the ControlSpace EX-1280 is a robust digital signal processor equipped for general-purpose audio processing applications. Twelve mic/line analog inputs, eight analog outputs, a Bose AmpLink output, and 64 x 64 Dante connectivity allow for flexible configuration and high-quality sound system control. ControlSpace Designer software simplifies the setup process with drag-and-drop programming, making configuration quick and easy.
Open-architecture, 1RU design built for general-purpose and PA applications
USB connection facilitates easy integration with PC audio sources
Dante audio networking supports 64 x 64 audio channels for connection to other Dante-enabled products, including native Dante-integrated microphones, amplifiers, mixers, and end points
Bose AmpLink output provides 8 channels of uncompressed, low-latency digital audio to AmpLink-equipped Bose amplifiers

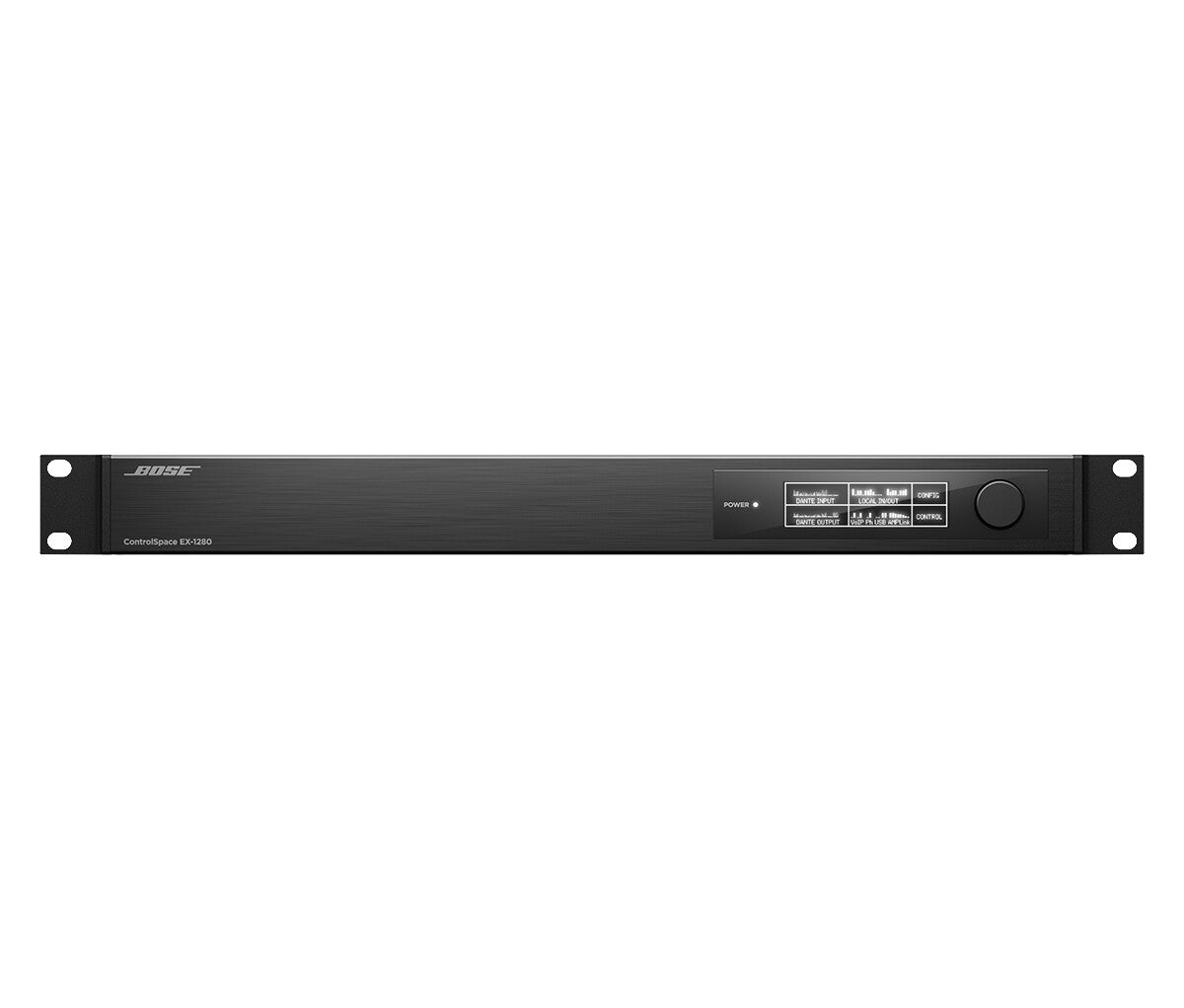

Front-panel interface features a large OLED display and rotary encoder for setting network parameters and monitoring channel activity
GPIO (5 in/5 out) and Serial for interfacing with external devices and control systems
Specifikationer
Specifikationer
| Audio | |
|---|---|
| Balanced line output level | 24 dB |
| Balanced line input level | 24 dB |
| Channels quantity | 20 channels |
| Dynamic range | 115 dB |
| Frequency range | 18 - 20000 Hz |
| Design | |
|---|---|
| LED indicators | Power |
| Built-in display | Yes |
| Rack capacity | 1U |
| Rack mounting | Yes |
| Product colour | Black |

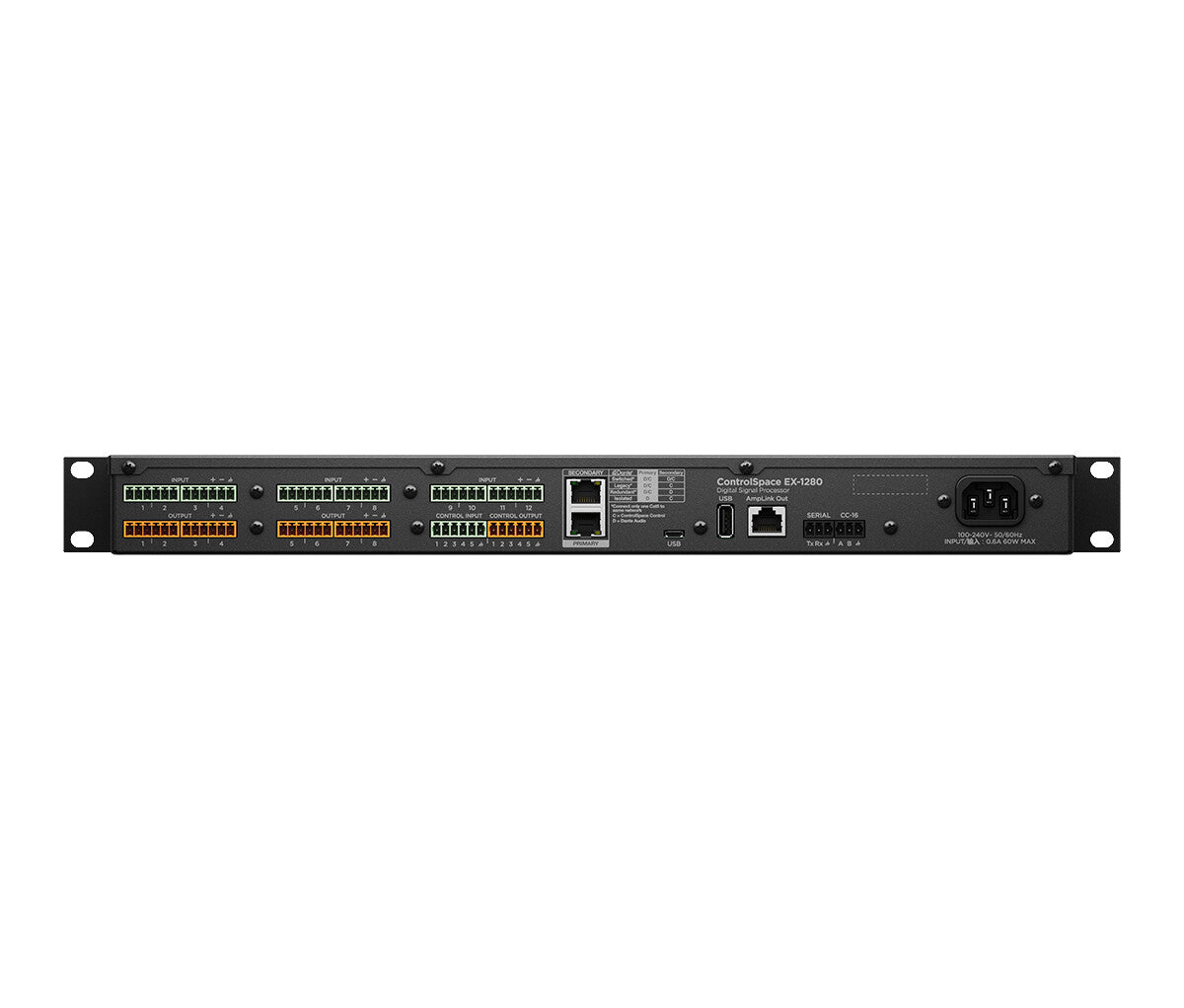

| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 3 |
| RS-232 ports | 1 |
| USB connector type | Micro-USB B, USB Type-A |
| Audio connector type | Terminal |
| Audio input | 3.81 mm detachable Euroblock, 6-pin |
| Audio output | 3.81 mm Euroblock, 6-pin |
| Standard interfaces | USB |
| Microphone | |
|---|---|
| Microphone included | No |
| Power | |
|---|---|
| DC input voltage | 230 V |
| Power consumption (typical) | 35 W |
| Network | |
|---|---|
| Remote network management support | Yes |
| Ethernet LAN | Yes |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 3.2 kg |
| Height | 44 mm |
| Depth | 282 mm |
| Width | 483 mm |
