32-bit fixed/floating-point DSP 456 MHz/ARM Cortex-A8 600 MHz, 24-bit, 48 kHz, 3.81 mm detachable Euroblock, 6-pin, 20 Hz to 20 kHz, RJ-45, RJ-11, USB Micro-B, USB A

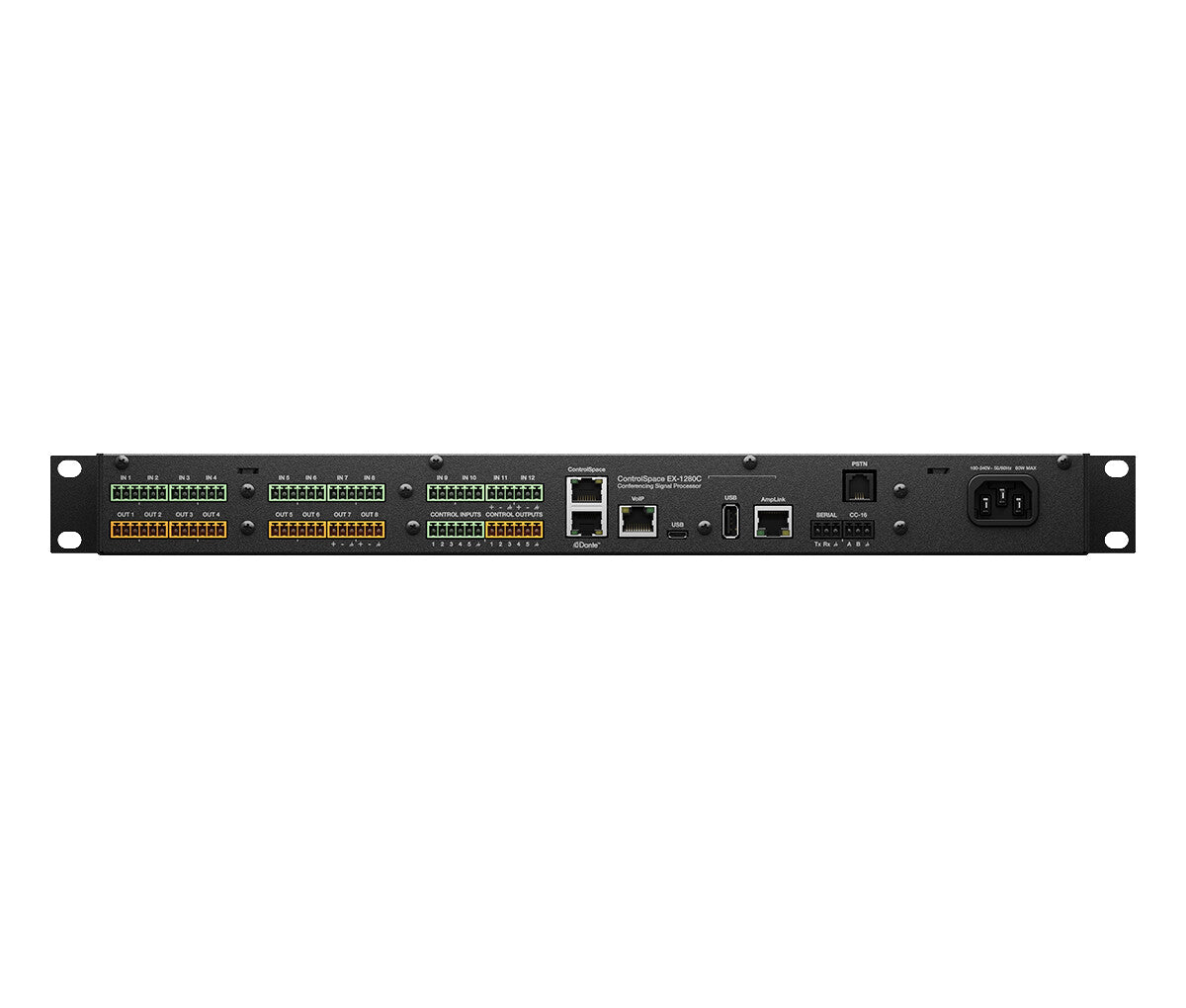

The ControlSpace EX-1280C conferencing processor includes 12 mic/line
analog inputs, 8 analog outputs, 8 Bose AmpLink digital outputs, 12 acoustic
echo cancellers (AEC), 64 x 64 Dante and flexible signal processing to meet
the needs of a wide variety of integrated-microphone audio conferencing
applications. The open-architecture design is configured using ControlSpace
Designer software and features drag-and-drop programming for extensive
design possibilities.
All-in-one design supports simultaneous VoIP, PSTN and USB soft codecs in a
single 1RU model
12-channel advanced AEC routes to both analog and Dante inputs. Multiple
references allow one EX-1280C processor to support multiple rooms, or AECsharing across multiple processors. Each AEC channel includes adaptable noise
cancellation, non-linear processing and comfort noise to enhance the clarity
and intelligibility of the meeting
2-line VoIP supports all popular codecs. A VoIP web interface allows IT
personnel to configure VoIP parameters without audio system design file
access or integrator involvement
PSTN connection (RJ-11) for worldwide POTS/analog telephone systems. It
includes compliance certification for most countries.
USB connection facilitates easy integration with PC soft codecs
Dante audio networking supports 64 x 64 audio channels for connection to
other Dante-enabled products, including native Dante-integrated microphones
Bose AmpLink port provides 8-channels of uncompressed, low-latency digital
audio to AmpLink-equipped Bose amplifiers

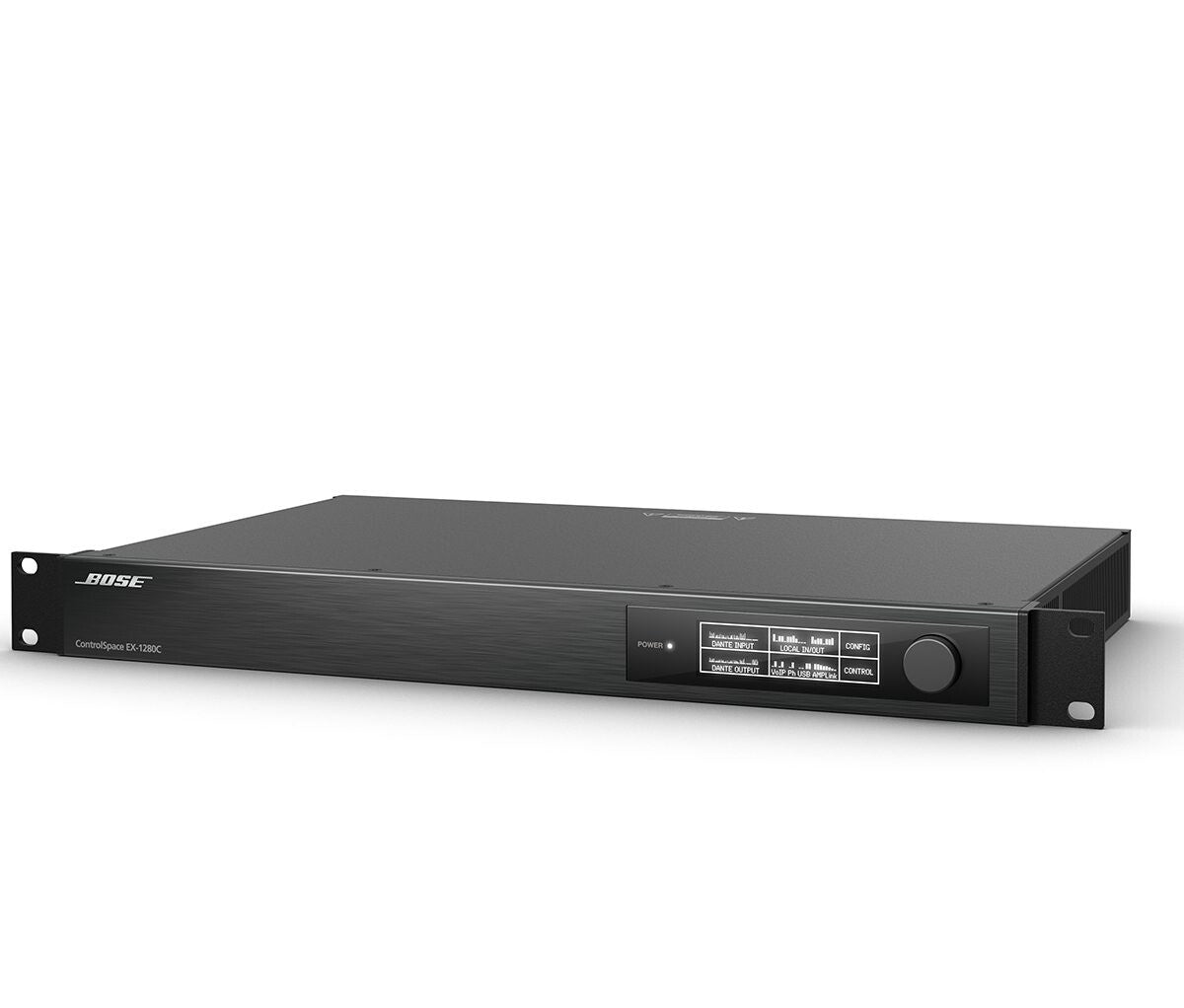

Front-panel interface features a large OLED display and rotary encoder for
setting network parameters and monitoring channel activity
GPIO (5 in/5 out) for external connections including microphone pushbuttons
or driving microphone LEDs
