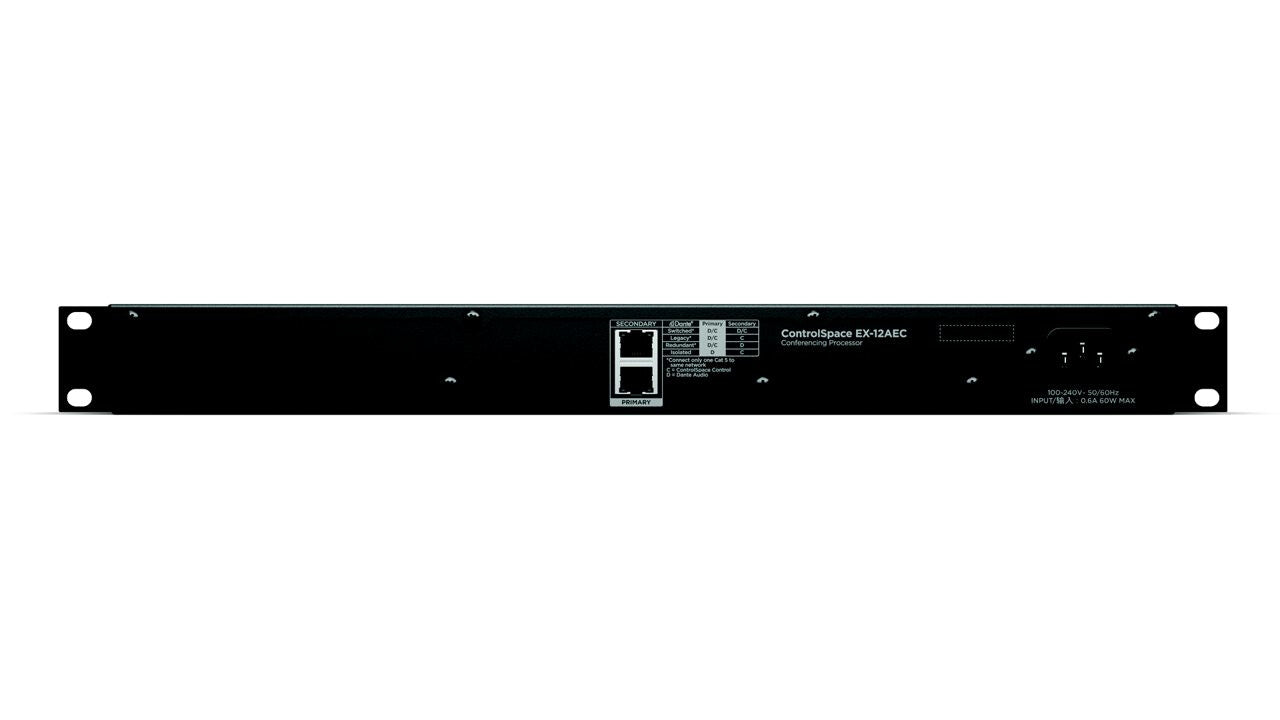

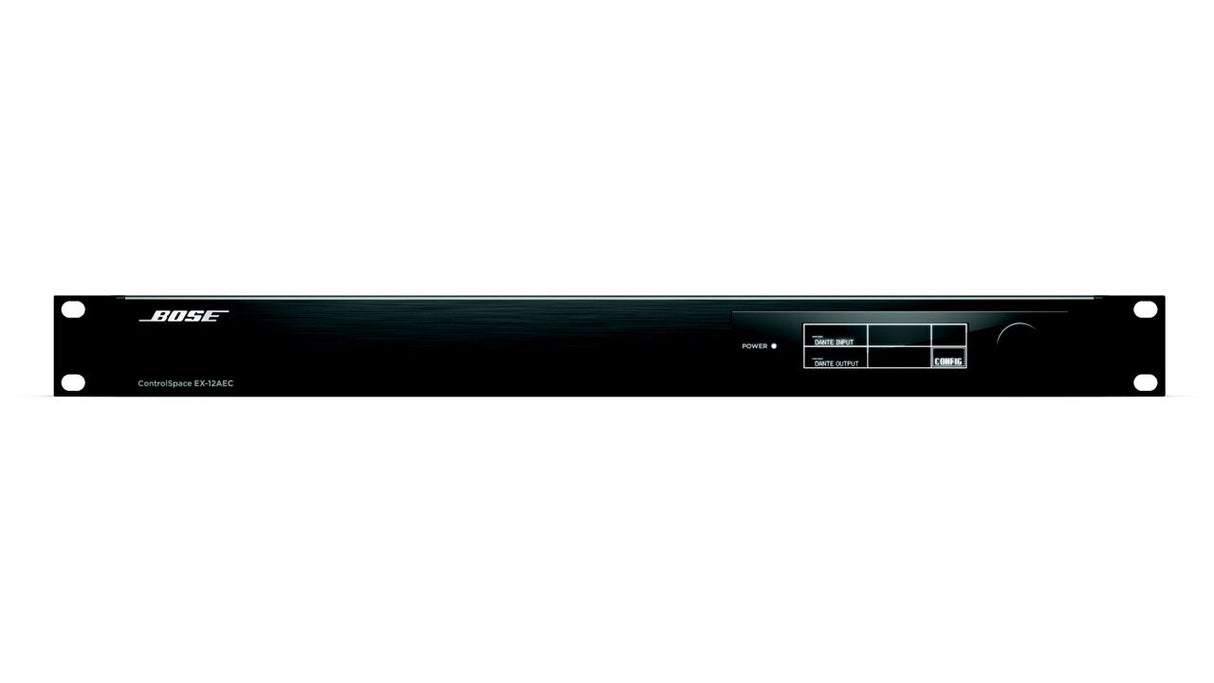

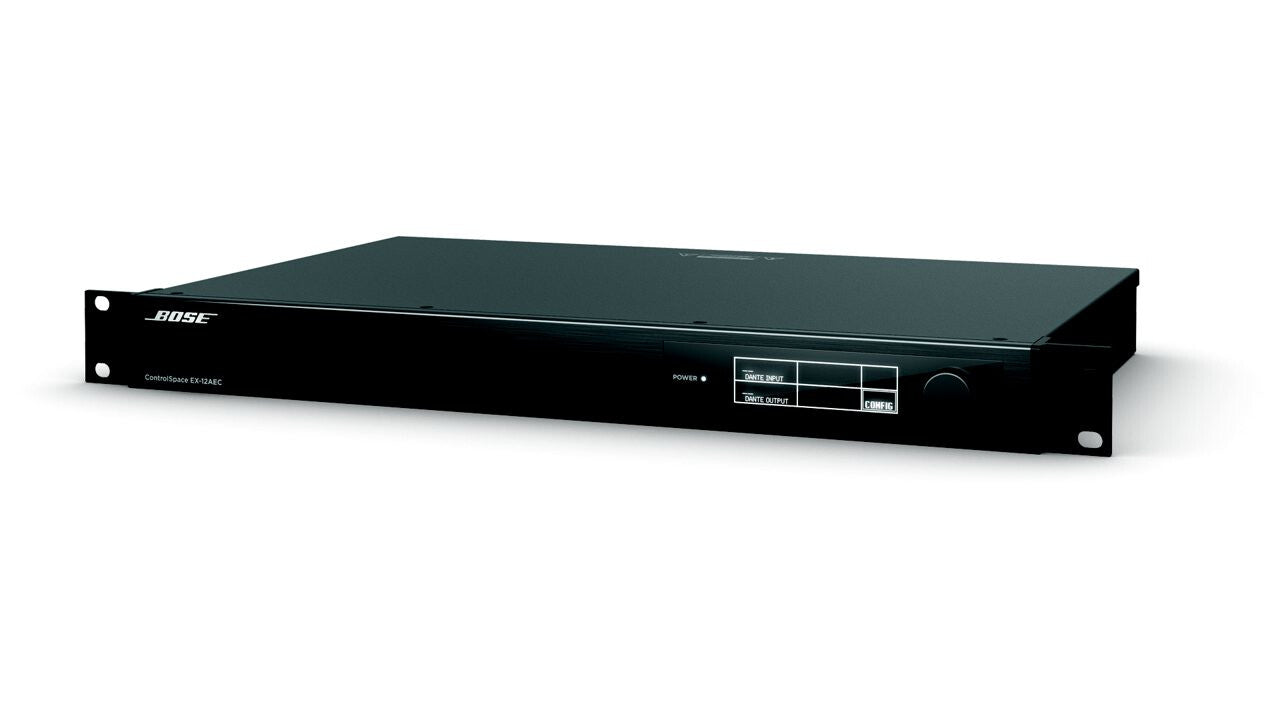

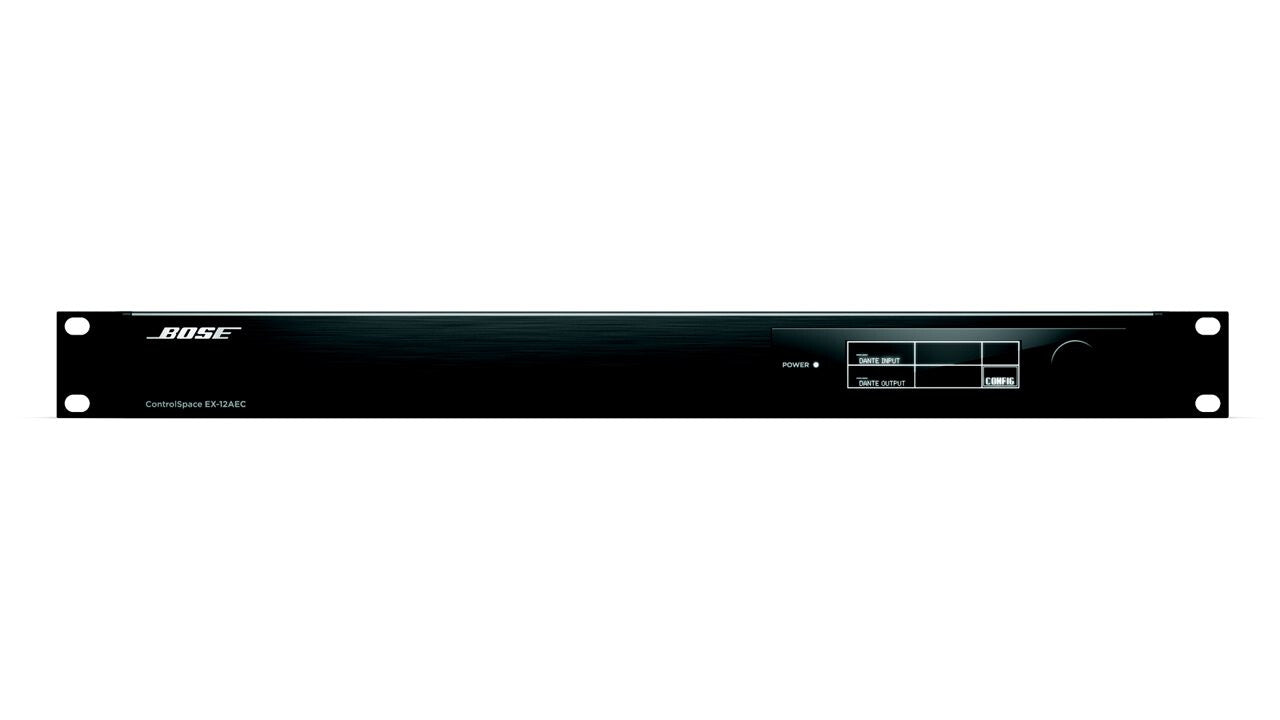

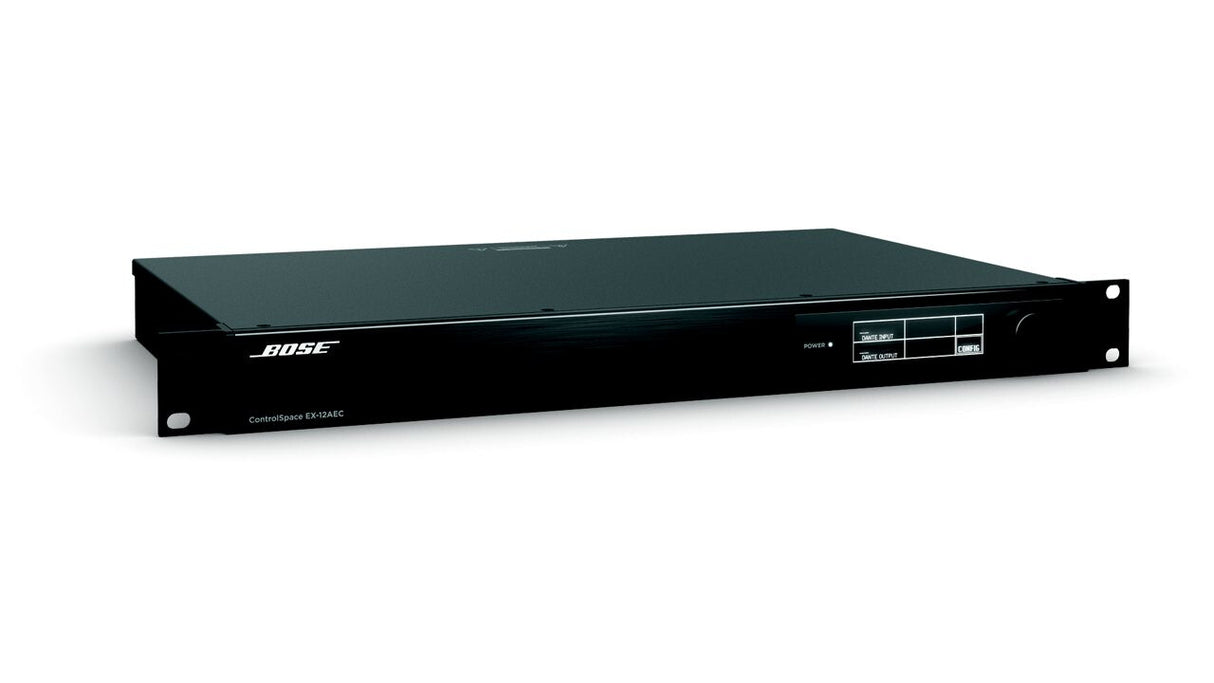

Bose ControlSpace EX-12AEC Black Ethernet LAN 1U

Bose  |  Varenummer: 834316-2110
Stregkode: 0017817807241,017817807241

Beskrivelse

456 MHz/ARM Cortex-A8 600 MHz, 3.6 GIPS / 2.7 GFLOPS, 35 W

With an open-architecture design, twelve acoustic echo cancellers (AEC), and 16 x 16 Dante® connectivity, the ControlSpace EX-12AEC conferencing processor provides cost-effective, robust AEC for conference rooms using ControlSpace EX conferencing processors.

Channel AEC expansion
with multiple references to complement ControlSpace EX-1280C processors in larger systems
Adaptable noise cancellation
with non-linear processing and comfort noise on each AEC channel enhances clarity
Dante audio networking
supports 16 x 16 audio channels for connection to an EX-1280C processor and native Dante-integrated microphones
Front-panel interface
features a large OLED display and rotary encoder for setting network parameters and monitoring channel activity

Specifikationer

Audio
Noise reduction Yes
Channels quantity 12 channels
Design
Control type Rotary
LED indicators Power
Built-in display Yes
Rack capacity 1U
Rack mounting Yes
Product colour Black
Ports & interfaces
Ethernet LAN (RJ-45) ports 2
Microphone
Microphone included No
Power
DC input voltage 230 V
Power consumption (typical) 35 W
Network
Ethernet LAN Yes
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Weight & dimensions
Weight 2.4 kg
Height 44 mm
Depth 282 mm
Width 483 mm

Download

PDF download:
Bose

Bose ControlSpace EX-12AEC Black Ethernet LAN 1U
