Bose DesignMax DM8C 2-way White Wired 125 W
Beskrivelse
Beskrivelse

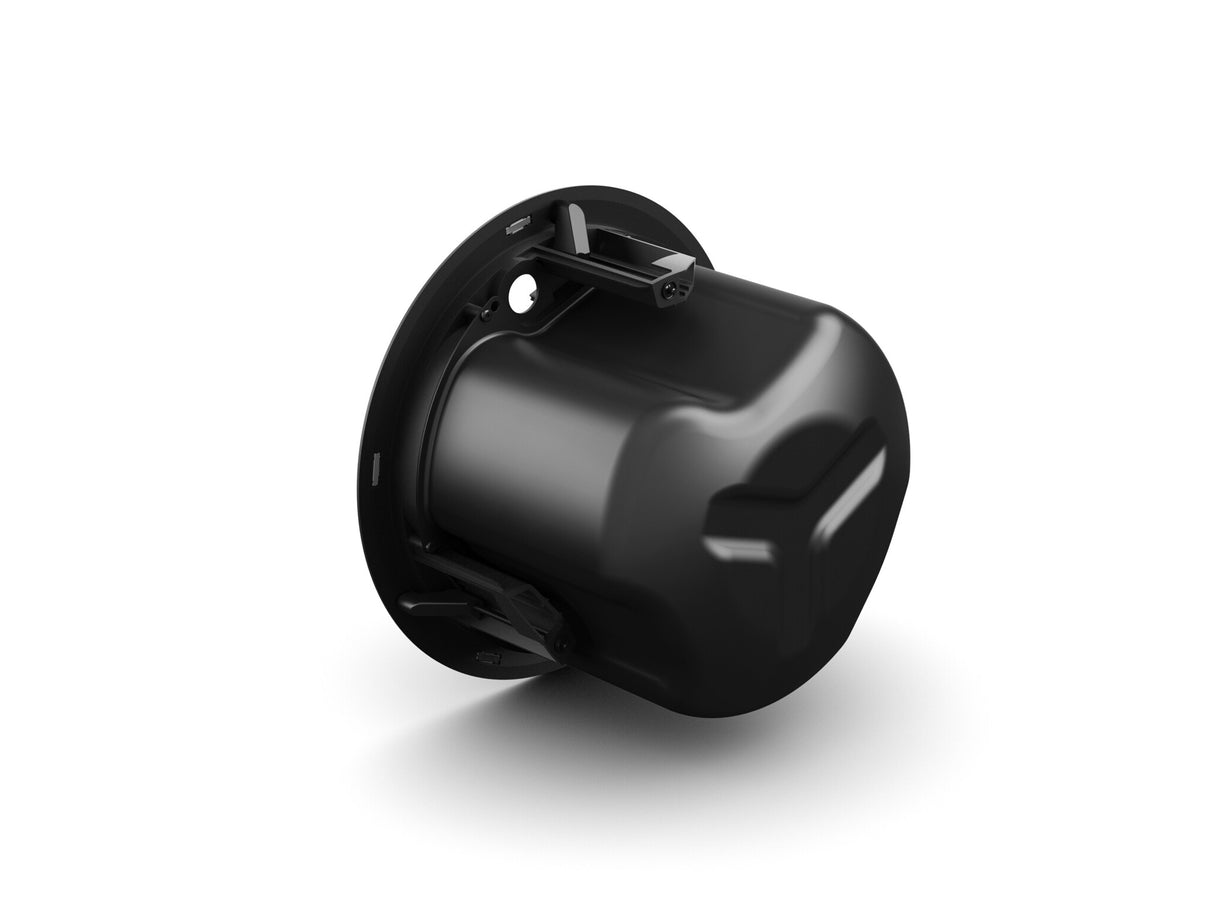

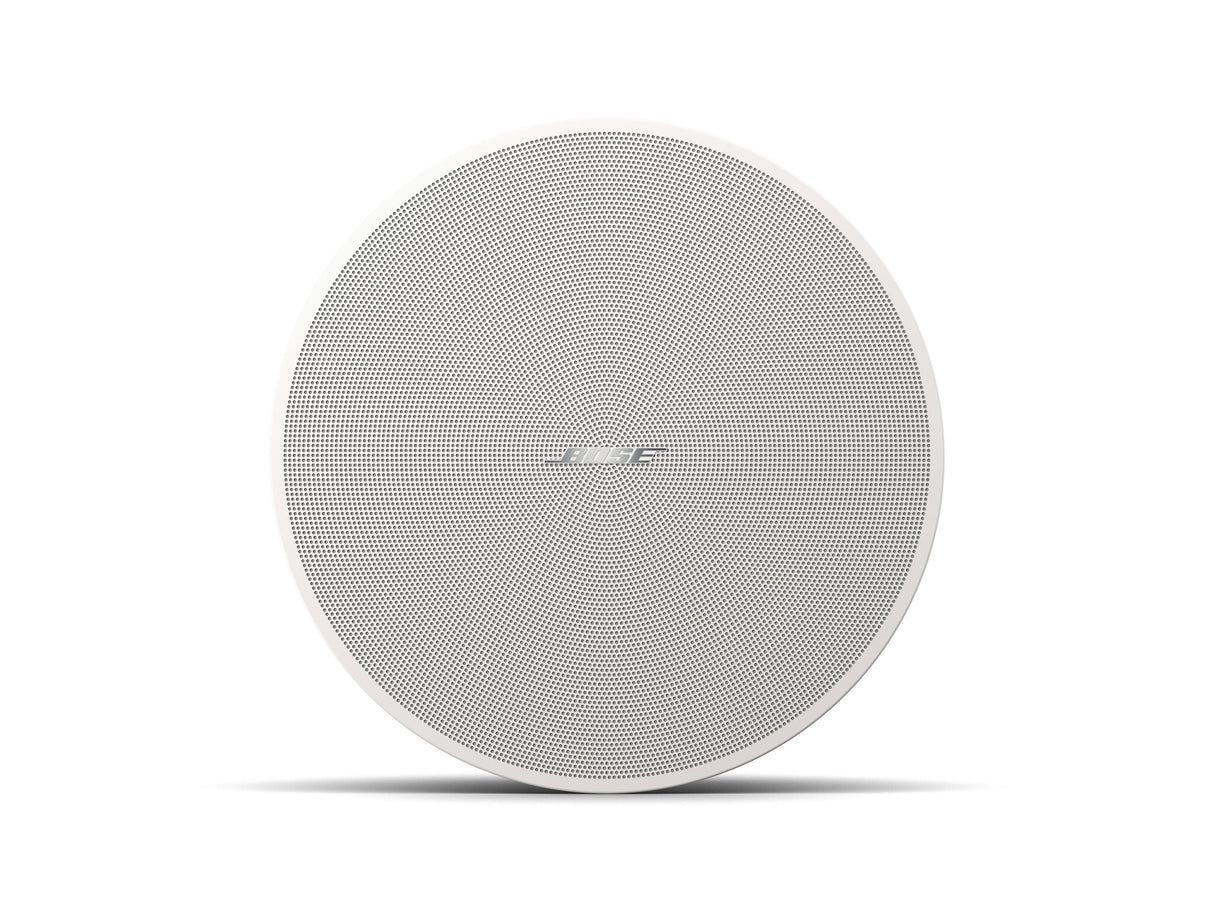

DesignMax DM8C
DesignMax loudspeakers bring outstanding audio and aesthetics to any commercial space. With 12 models to choose from, it’s easy to create tailored solutions that deliver instantly impressive sound. QuickHold mounting mechanisms make installation efficient, reducing strain and hassle — and saving substantial time. And with both black and white versions available, DesignMax loudspeakers integrate seamlessly with any décor. Delivering SPL suitable for foreground music, the 125-watt DesignMax DM8C loudspeaker features a two-way, 8-inch coaxially mounted woofer and a center-firing 1-inch compression driver, producing a 50 Hz - 20 kHz frequency range. The DM8C is ceiling-mounted and installs easily via QuickHold mounting arms.
Specifikationer
Specifikationer
| Loudspeakers | |
|---|---|
| Speaker type | 2-way |
| Speaker placement | In-wall/in-ceiling |
| Number of drivers | 2 |
| Number of mid-range drivers | 1 |
| Mid-range driver diameter | 2.54 cm |
| Mid-range driver diameter (imperial) | 2.54 cm (1") |
| Woofer | Yes |
| Number of woofer drivers | 1 |
| Woofer diameter | 20.3 cm |
| Woofer diameter (imperial) | 20.3 cm (8") |
| Audio | |
|---|---|
| RMS rated power | 125 W |
| Peak Music Power Output (PMPO) | 600 W |
| Frequency range | 52 - 20000 Hz |
| Impedance | 8 Ω |
| Sensitivity | 118 dB |
| Crossover frequency | 1500 Hz |
| Performance | |
|---|---|
| Product colour | White |
| Recommended usage | Conferencing system |
| Housing material | Plastic, Steel |
| Certification | UL-1480A, S5591/ UL Listed, UL2043, NFPA70, NFPA90-A, IEC60268-5, RoHS, CE |
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Weight & dimensions | |
|---|---|
| Width | 409 mm |
| Depth | 409 mm |
| Height | 255 mm |
| Weight | 9.57 kg |
| Packaging data | |
|---|---|
| Package weight | 12.7 kg |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85182200 |
