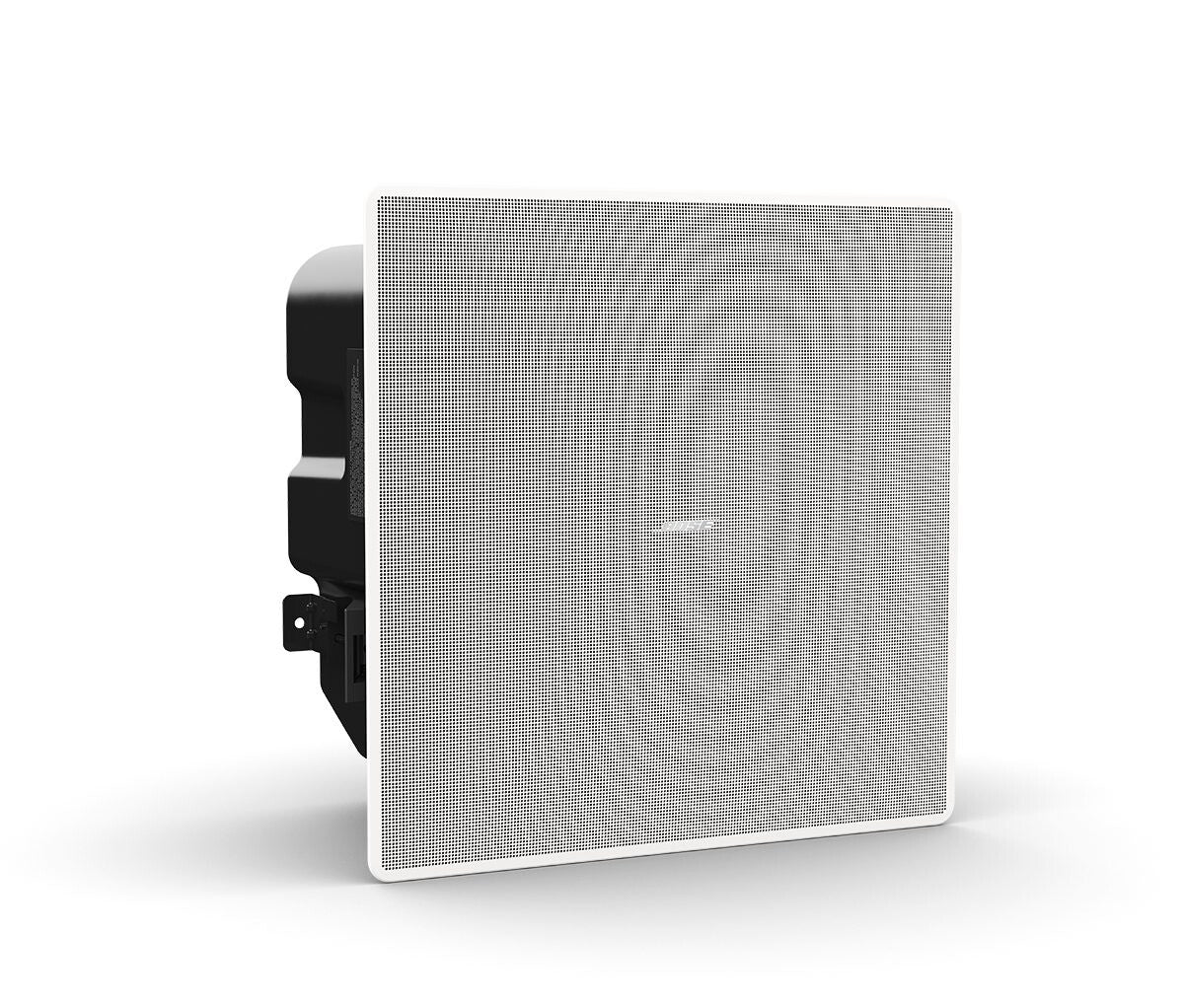

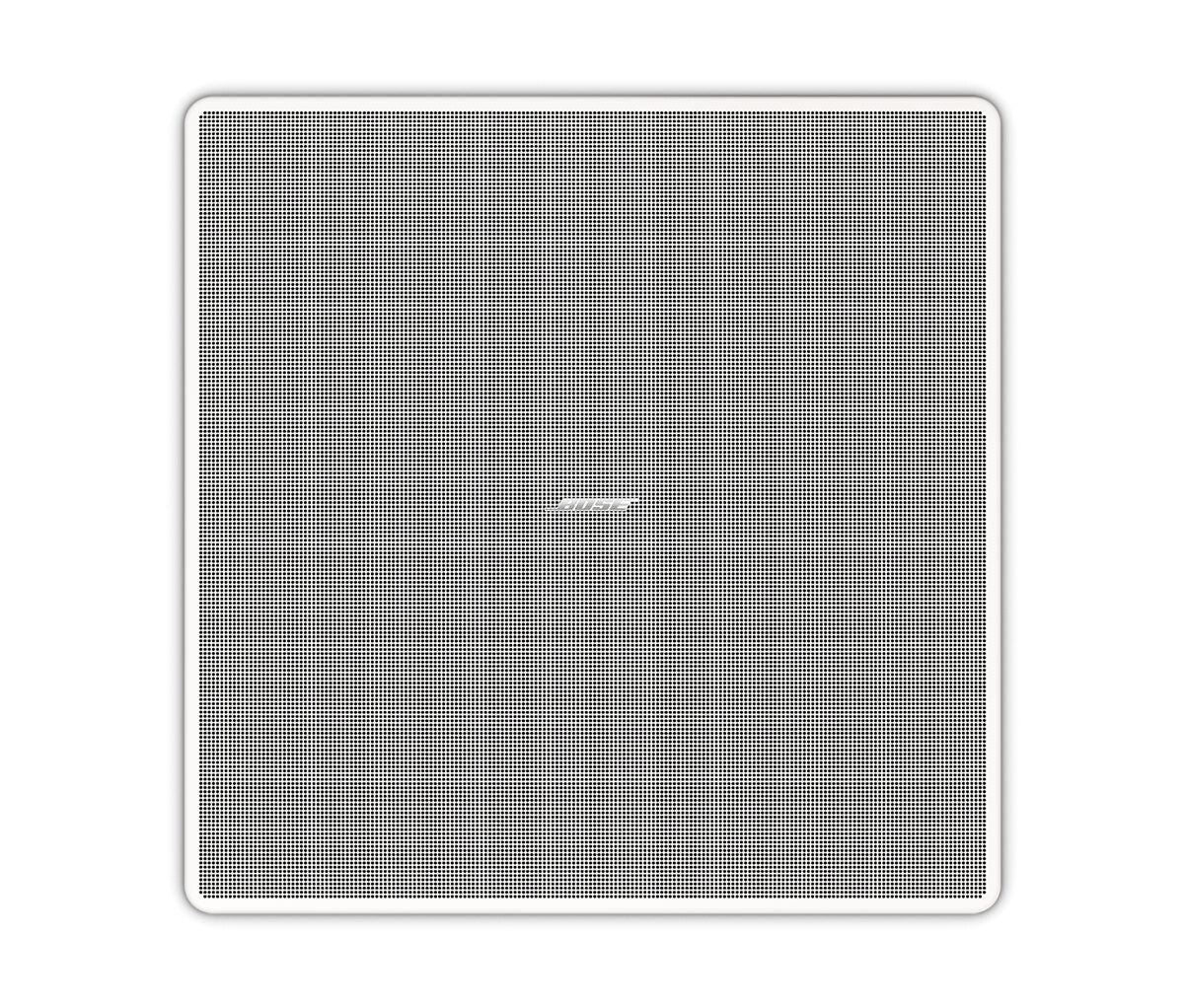

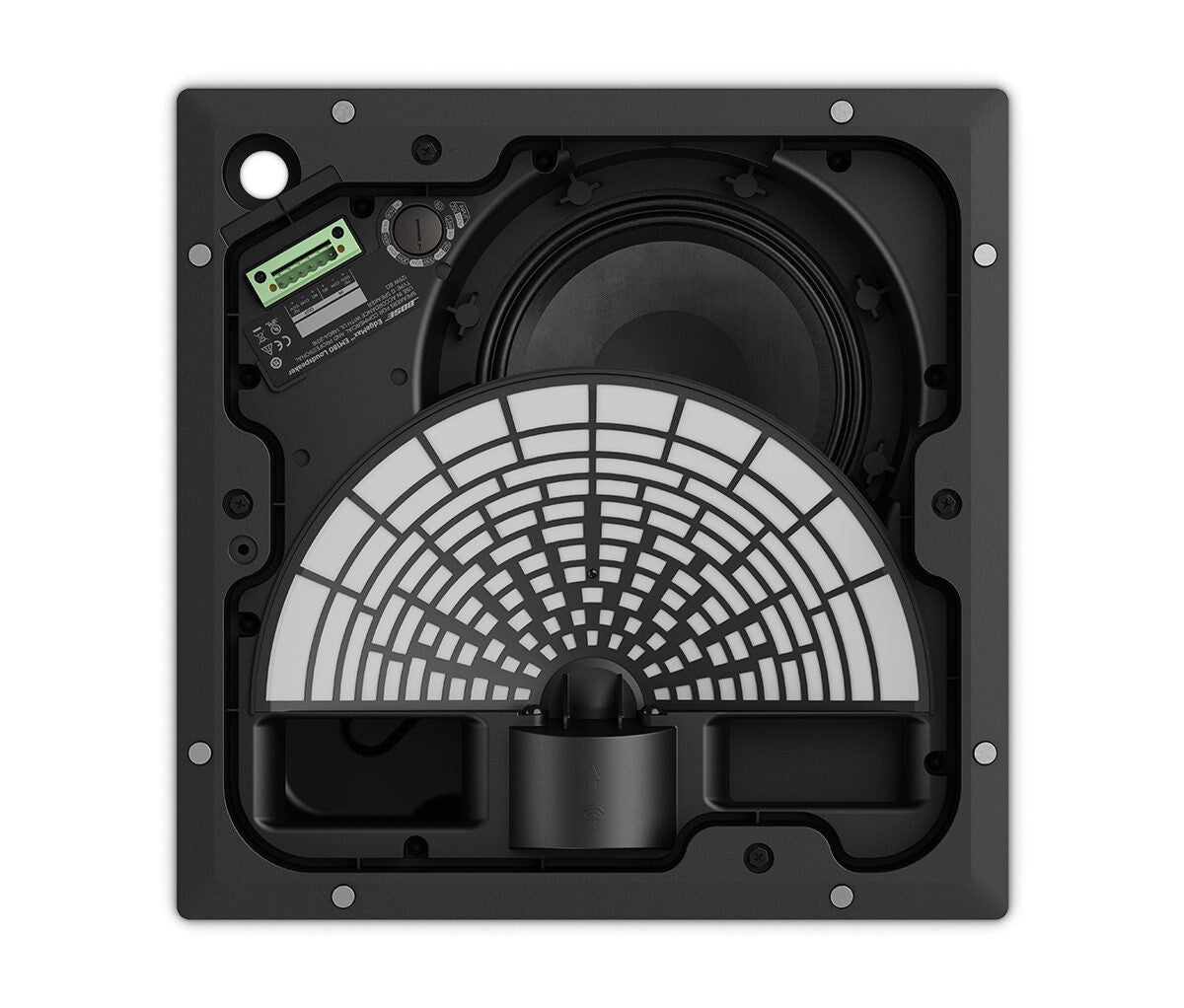

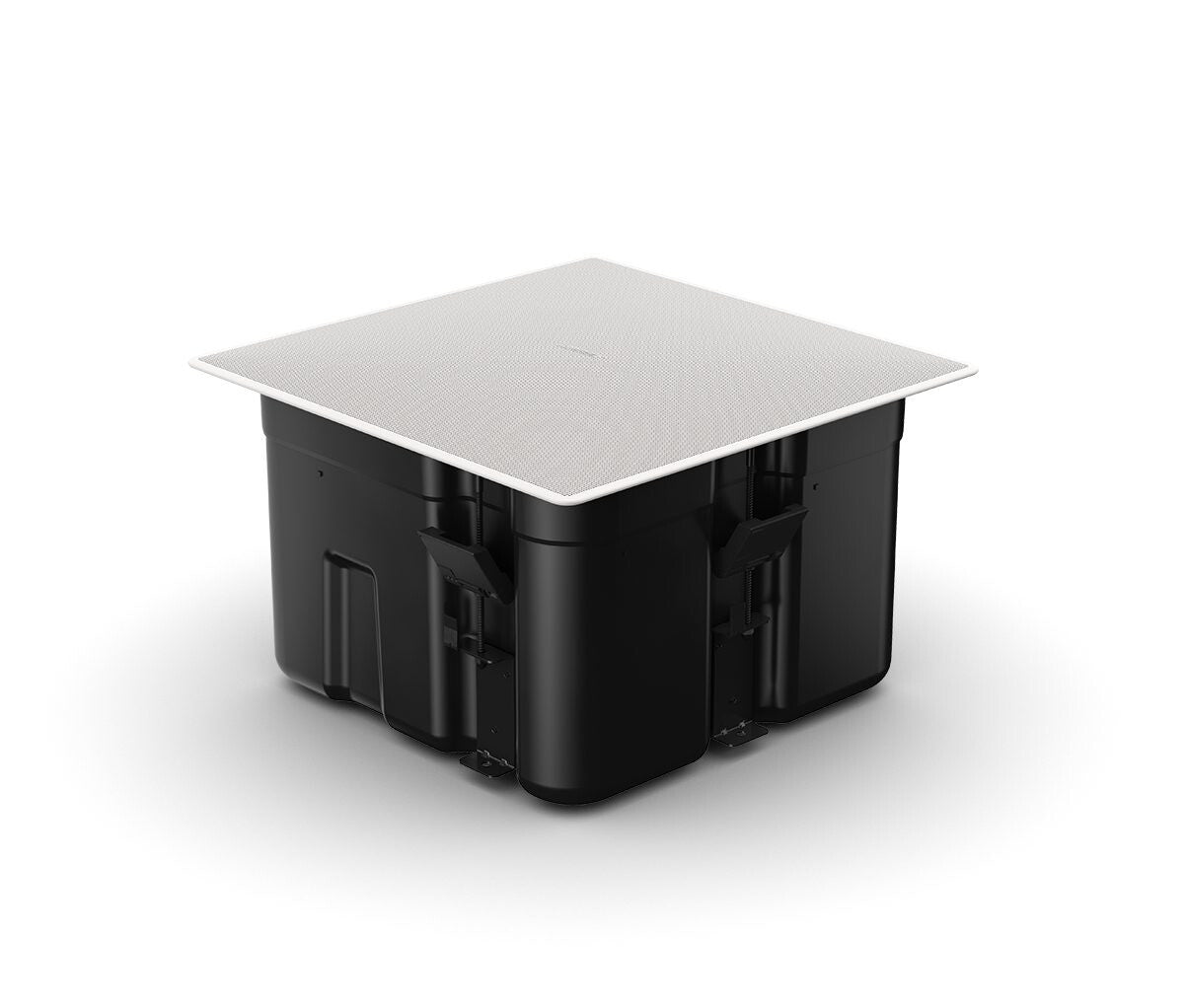

Bose EdgeMax EM180 2-way White Wired 125 W
Bose | Varenummer:
777189-0220
Beskrivelse
Beskrivelse
600W, 45Hz - 20kHz, 121 dB, 8Ω, 339x339x249mm, 10.1kg, White
OVERVIEW
Bose Professional EdgeMax in-ceiling premium loudspeakers feature proprietary Bose PhaseGuide technology with high-frequency compression drivers to create a new category that combines the room-filling coverage patterns typical of larger surface-mount speakers with the architect-preferred aesthetics of in-ceiling models. Designed to mount near wall-ceiling boundaries, EdgeMax loudspeakers provide improved audio quality and coverage, while reducing the number of required units, compared to conventional dome-tweeter ceiling speakers.
Specifikationer
Specifikationer
| Loudspeakers | |
|---|---|
| Woofer diameter (imperial) | 20.3 cm (8") |
| Woofer diameter | 20.3 cm |
| Number of woofer drivers | 1 |
| Woofer | Yes |
| Number of drivers | 2 |
| Speaker placement | Ceiling-mountable |
| Speaker type | 2-way |
| Audio | |
|---|---|
| Crossover frequency | 1000 Hz |
| Sensitivity | 121 dB |
| Impedance | 8 Ω |
| Frequency range | 45 - 20000 Hz |
| Peak Music Power Output (PMPO) | 600 W |
| RMS rated power | 125 W |
| Performance | |
|---|---|
| Certification | UL1480A, UL2043 |
| Housing material | Plastic, Steel |
| Recommended usage | Conferencing system |
| Product colour | White |
| Ports & interfaces | |
|---|---|
| Connectivity technology | Wired |
| Weight & dimensions | |
|---|---|
| Weight | 10.1 kg |
| Height | 249 mm |
| Depth | 339 mm |
| Width | 339 mm |
| Packaging data | |
|---|---|
| Package weight | 12.5 kg |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85182200 |
