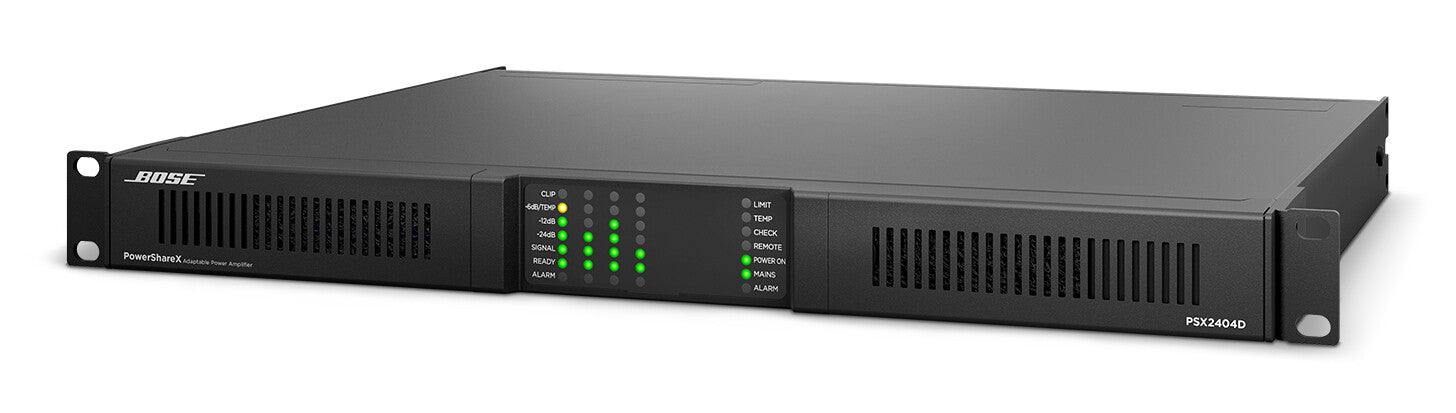

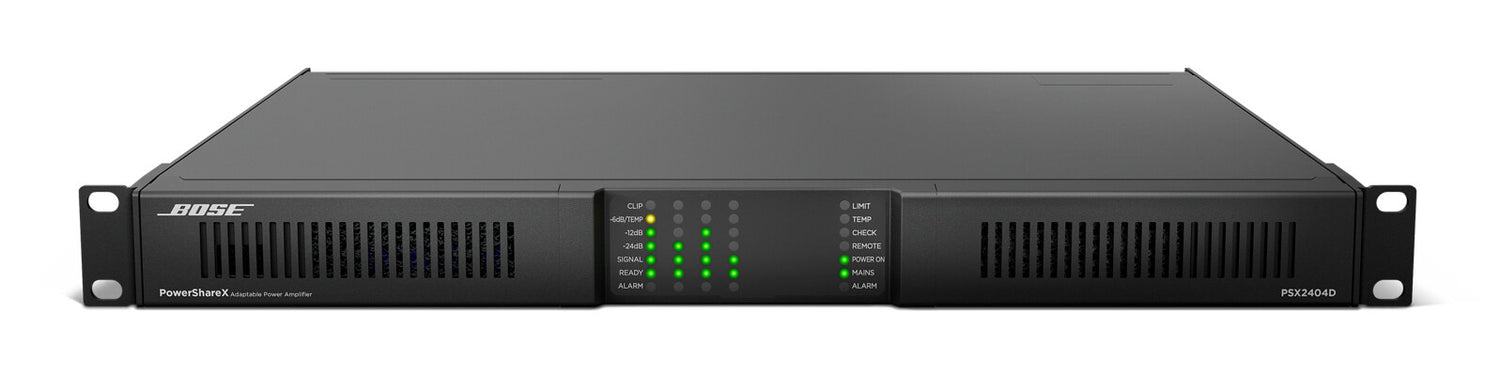

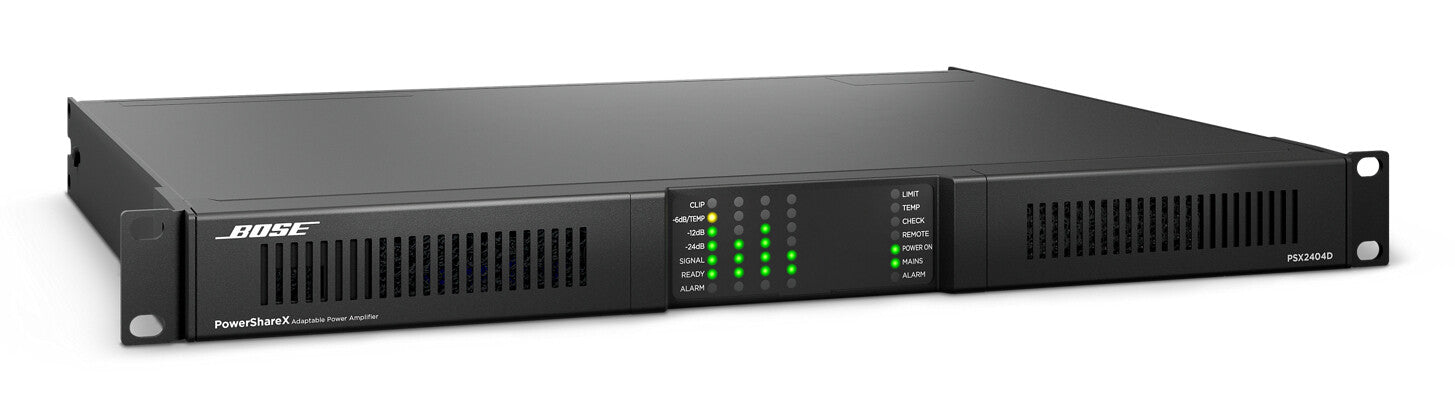

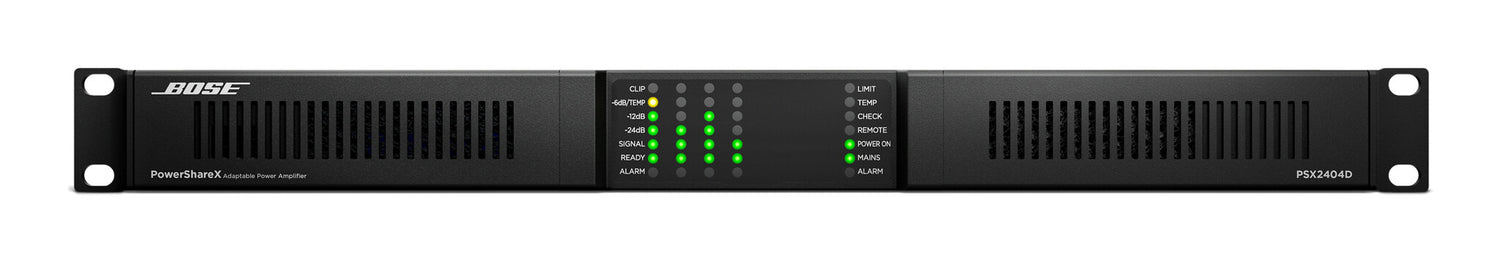

Bose PowerShareX PSX2404D 4.0 channels Black
Bose | Varenummer:
876599-0200
Beskrivelse
Beskrivelse
PowerShareX PSX2404D adaptable power amplifier, 100 V, 120 V, 230 V (Americas & Europe)
PowerShareX PSX2404D is a four-channel, 2400-watt smart amplifier designed for use with Bose Professional installed sound systems. Onboard DSP gives you instant access to optimized loudspeaker presets via ControlSpace Designer software with easy ecosystem integration across Bose Professional processors, loudspeakers, and controllers. Design, configuration, installation, and operation become simpler — so you can get the job done and move on to the next.
Specifikationer
Specifikationer
| Audio | |
|---|---|
| Audio input channels | 4.0 channels |
| Frequency range | 20 - 20000 Hz |
| Input impedance | 20000 Ω |
| Crosstalk (1kHz) | -70 dB |
| Dynamic power per channel (8 Ohm) | 600 W |
| Gain | 35 dB |
| Dynamic power per channel (4 Ohm) | 600 W |
| Dynamic power per channel (2 Ohm) | 800 W |
| Signal-to-Noise Ratio (SNR) | 104 dB |
| Total Harmonic Distortion (THD) | 0.1% |
| Amplifier class | D |
| Audio output channels | 4.0 channels |
| Ports & interfaces | |
|---|---|
| AC (power) in | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Number of Euroblock input connectors | 1 |
| Number of Euroblock output connectors | 1 |
| Technical details | |
|---|---|
| Maximum output power | 2400 W |
| On/off switch | Yes |
| Rack capacity | 1U |
| Maximum input level | 100 V |
| Cooling type | Active |
| Channels quantity | 4 channels |
| Product colour | Black |
| Connectivity technology | Wired |
| Power | |
|---|---|
| Power consumption (max) | 405 W |
| Power consumption (standby) | 31.1 W |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power source type | AC |
| Weight & dimensions | |
|---|---|
| Weight | 7 kg |
| Height | 45 mm |
| Depth | 358 mm |
| Width | 483 mm |
| Indication | |
|---|---|
| LED indicators | Yes |
| Packaging content | |
|---|---|
| User guide | Yes |
| Logistics data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Packaging data | |
|---|---|
| Package weight | 10.3 kg |
Download
Download
PDF download:
Bose PowerShareX PSX2404D 4.0 channels Black
