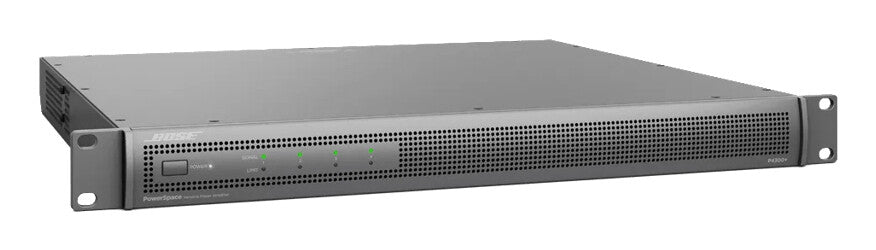

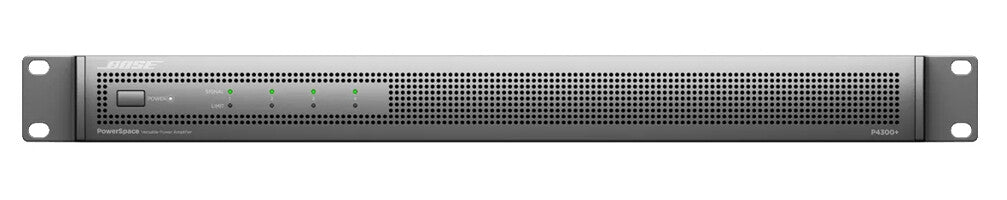

The Bose Professional PowerSpace P4300+ amplifier combines power and DSP into a 1RU, four-channel design for quick-turn installations. Part of a comprehensive platform of loudspeakers, controls, and software that help installers deliver premium commercial sound systems efficiently, Bose Professional PowerSpace+ amplifiers feature a quick-setup workflow. An onboard configuration utility and intuitive browser-based UI present common tasks in a logical manner, so you can configure the system faster, reducing installation time while increasing setup accuracy. Once installed, proprietary algorithms offer predictable performance while optional interfaces — such as ControlCenter analog zone controllers — make operation easy for end users. For premium commercial applications, Bose Professional PowerSpace+ models provide amplification and DSP in one integrated, easy-to-configure package.
Specifikationer
Specifikationer
| Audio | |
|---|---|
| Frequency range | 20 - 20000 Hz |
| Input impedance | 10000 Ω |
| Crosstalk (1kHz) | 80 dB |
| Dynamic power per channel (8 Ohm) | 300 W |
| Gain | 38 dB |
| Dynamic power per channel (4 Ohm) | 300 W |
| Total Harmonic Distortion (THD) | 0.04% |
| Amplifier class | D |
| Peak power per channel | 600 W |
| Audio output channels | 6.0 channels |

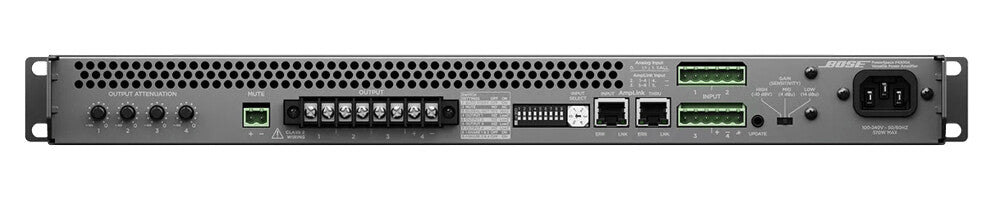

| Ports & interfaces | |
|---|---|
| AC (power) in | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Number of Euroblock input connectors | 4 |
| Number of Euroblock output connectors | 3 |
| Line inputs (RCA) | 2 |
| Technical details | |
|---|---|
| I/O ports | 8-terminal block |
| On/off switch | Yes |
| Rack capacity | 1U |
| Maximum input level | 100 V |
| Cooling type | Active |
| Cables included | AC, LAN (RJ-45) |
| Warranty period | 5 year(s) |
| Product colour | Grey |
| Connectivity technology | Wired |
| Display | |
|---|---|
| Built-in display | No |
| Power | |
|---|---|
| Power consumption (max) | 570 W |
| Power consumption (standby) | 25 W |
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Power source type | AC |
| Weight & dimensions | |
|---|---|
| Weight | 6.6 kg |
| Height | 44 mm |
| Depth | 420 mm |
| Width | 483 mm |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Indication | |
|---|---|
| LED indicators | Yes |
| Packaging content | |
|---|---|
| User guide | Yes |
| Logistics data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Packaging data | |
|---|---|
| Package weight | 8.6 kg |
