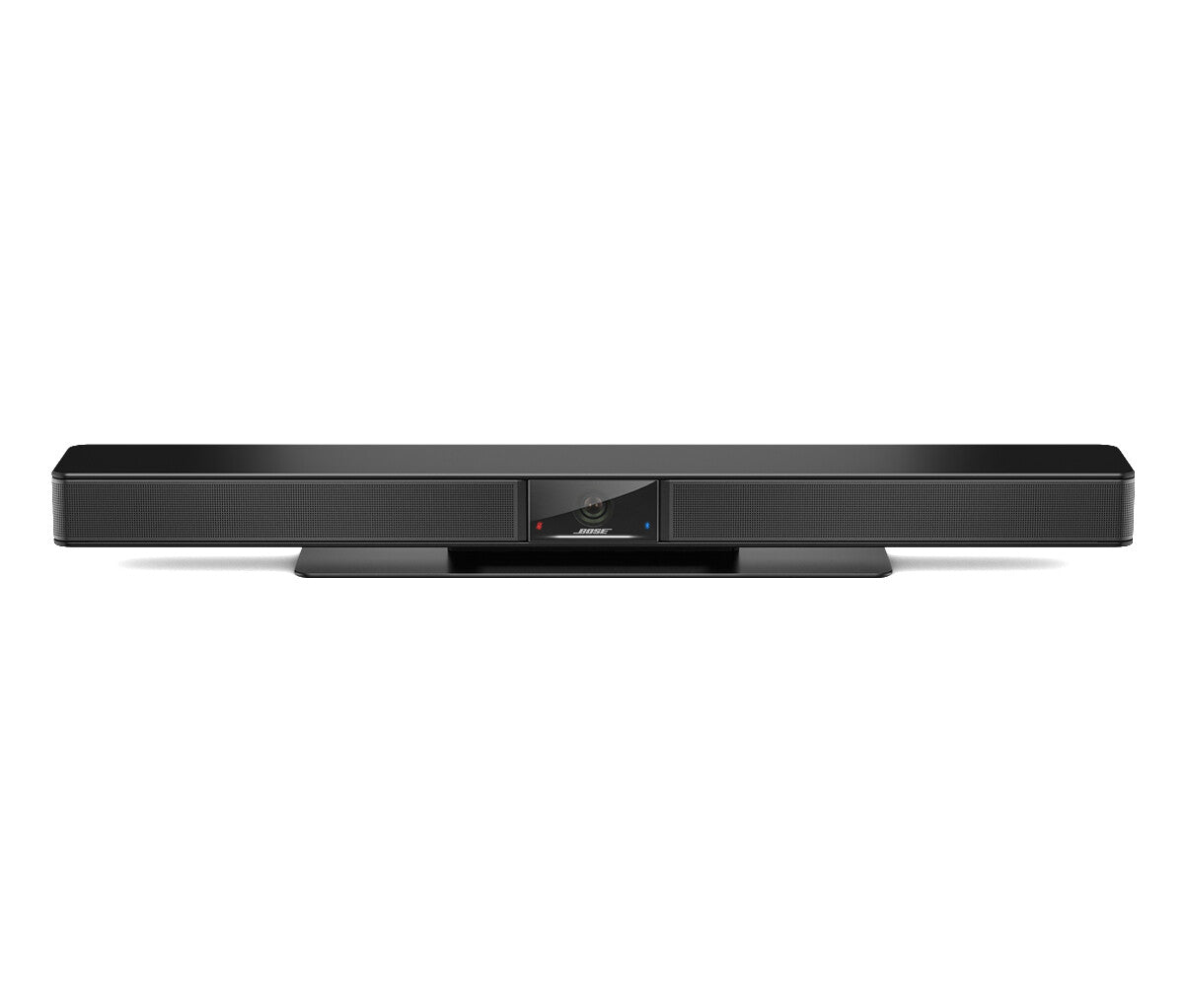

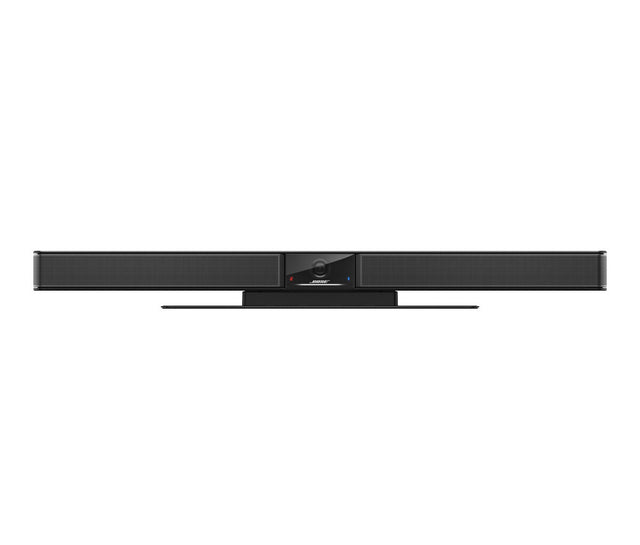

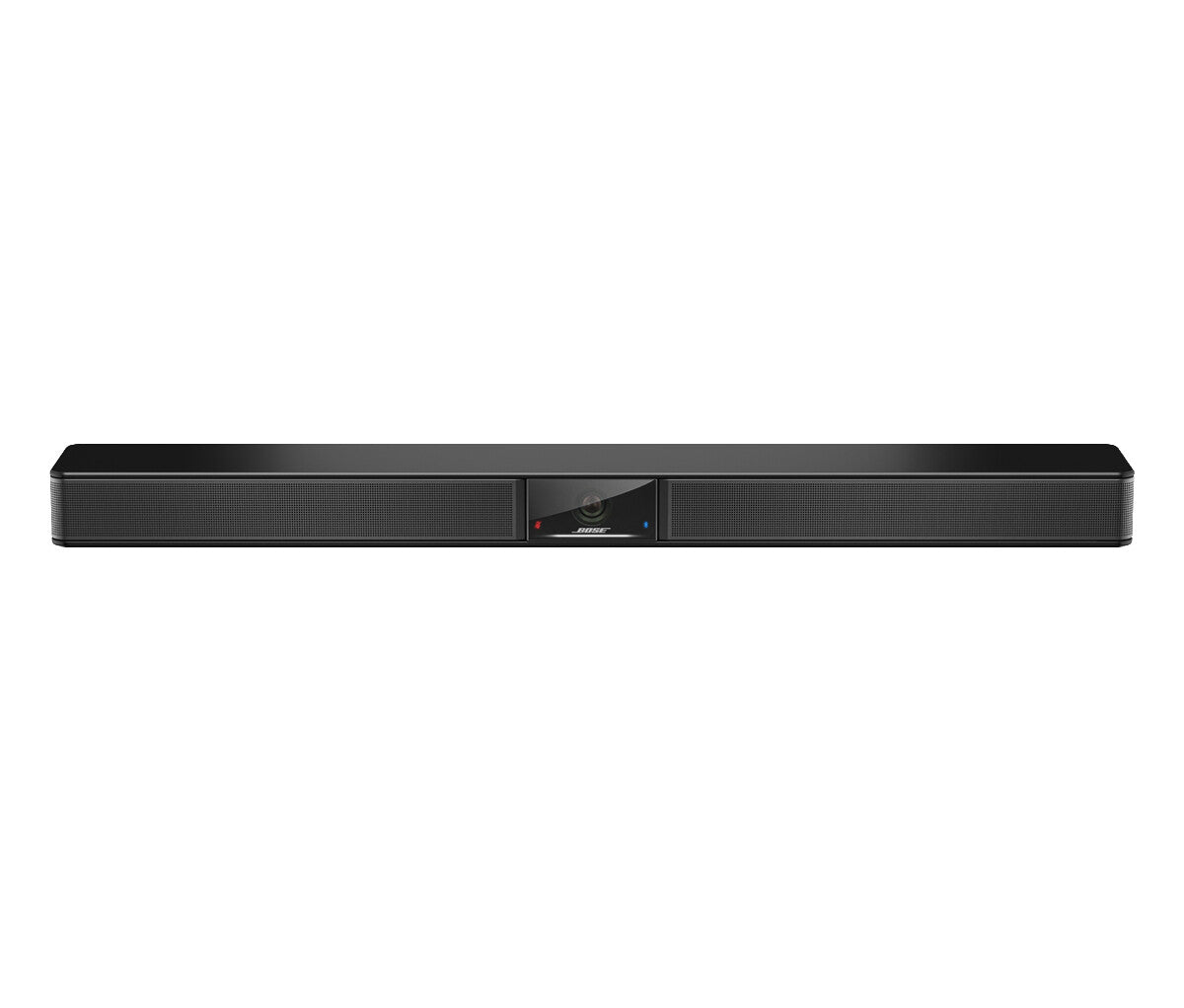

Bose Videobar VB1 video conferencing system 8 MP Ethernet LAN Group video conferencing system

Bose  |  Varenummer: 842415-2110
Stregkode: 0017817814140,017817814140

Beskrivelse

8 MP, 20 W, 85 - 20000 Hz, 89 dB, 686 x 96 x 48 mm, 2.5 kg

SOUND? NATURAL. VIDEO? CLEAR. WORK? BETTER.
BOSE VIDEOBAR VB1

Feel together again
Hybrid work models mean some are in the building, some are remote — and everyone’s on calls all day. Videoconferencing keeps your business moving. The Bose Videobar VB1 brings the practical simplicity and stunning clarity of Bose to every meeting, for every participant, near and far. So teams can feel more together and get more done.

Bring the Bose experience to huddle spaces and medium-sized conference rooms with an all-in-one solution that requires minimal setup and delivers premium audio and video performance.

Make conversation more natural with six beam-steering microphones that actively focus on voices and reject noise; and auto EQ that delivers optimized audio to all participants.

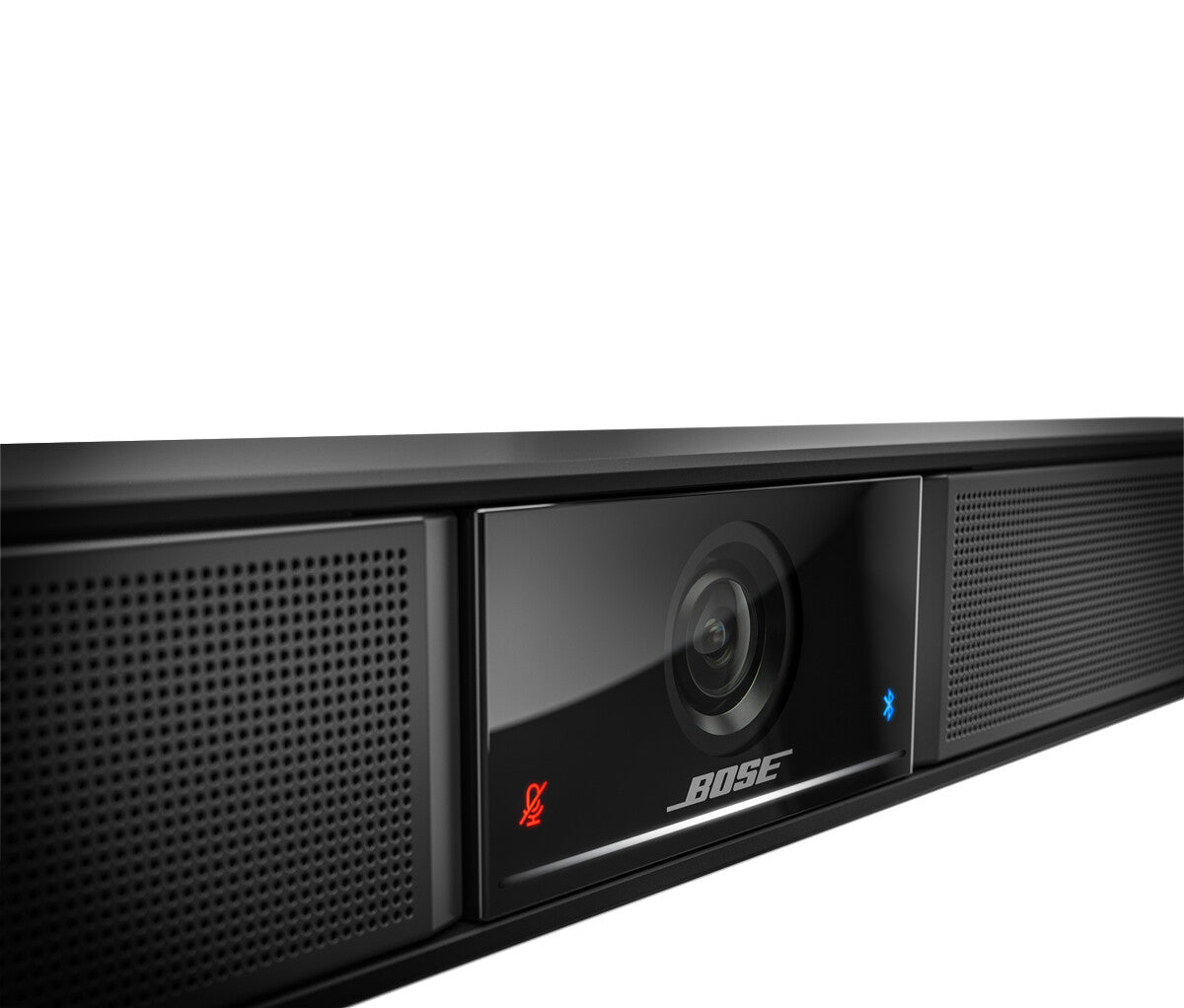

Communicate and be seen more clearly — a 4K ultra-HD camera with autoframing allows everyone to see and understand the presenter, whiteboard, flipchart, or other in-room objects — and feel more like they’re together in the same room.

Bring enhanced video and audio performance to popular Unified Communications platforms such as Microsoft Teams, Google Meet, Zoom, and more.

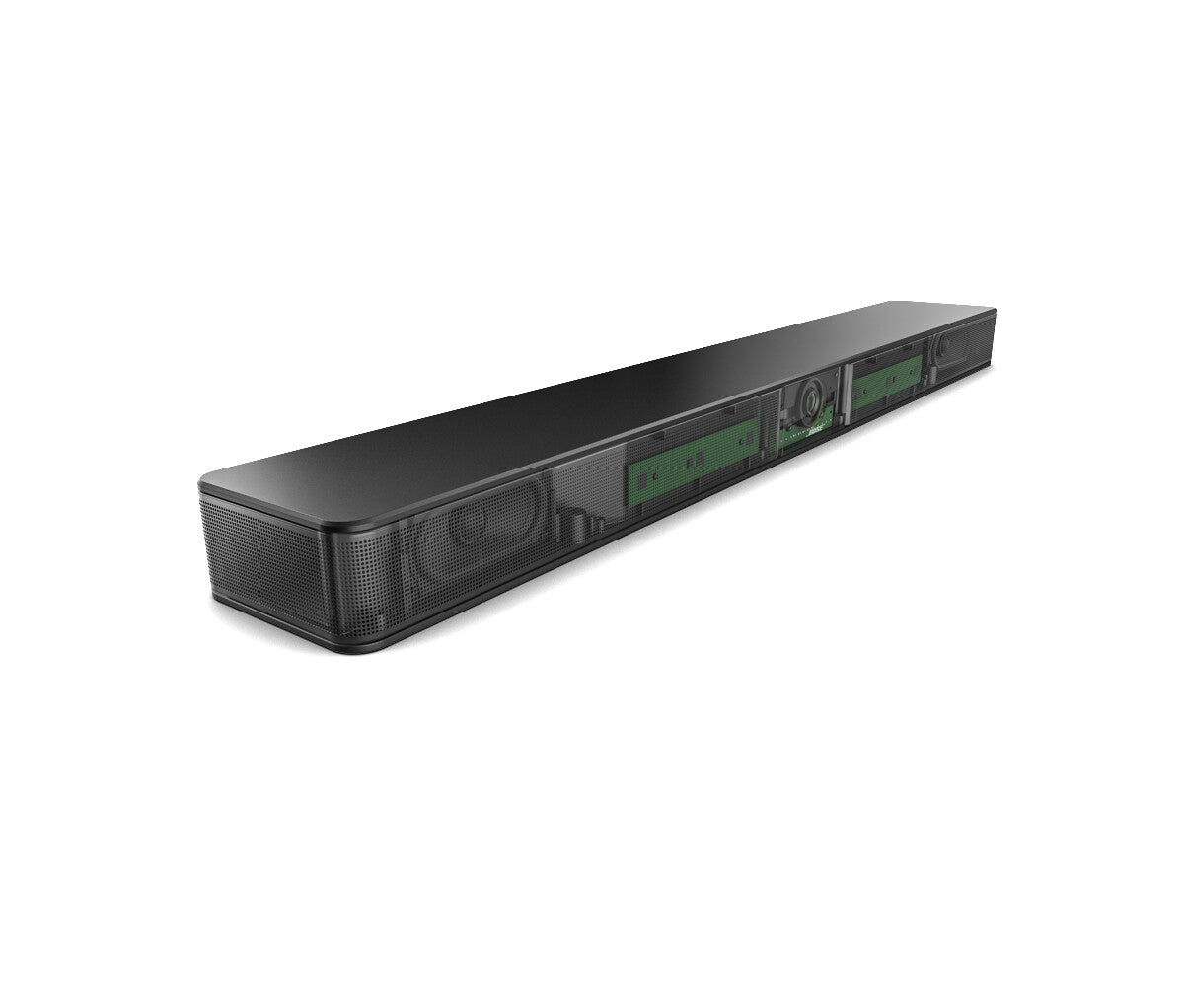

Support multimedia presentations with premium audio with Bose-proprietary transducers that deliver room-filling sound from a USB-connected laptop or wireless Bluetooth® device.

Clean up the conferencing experience with an elegant low-profile design that complements the room, improves aesthetics, and connects via a single USB cable, eliminating clutter.

MEETING ROOMS MADE EASY

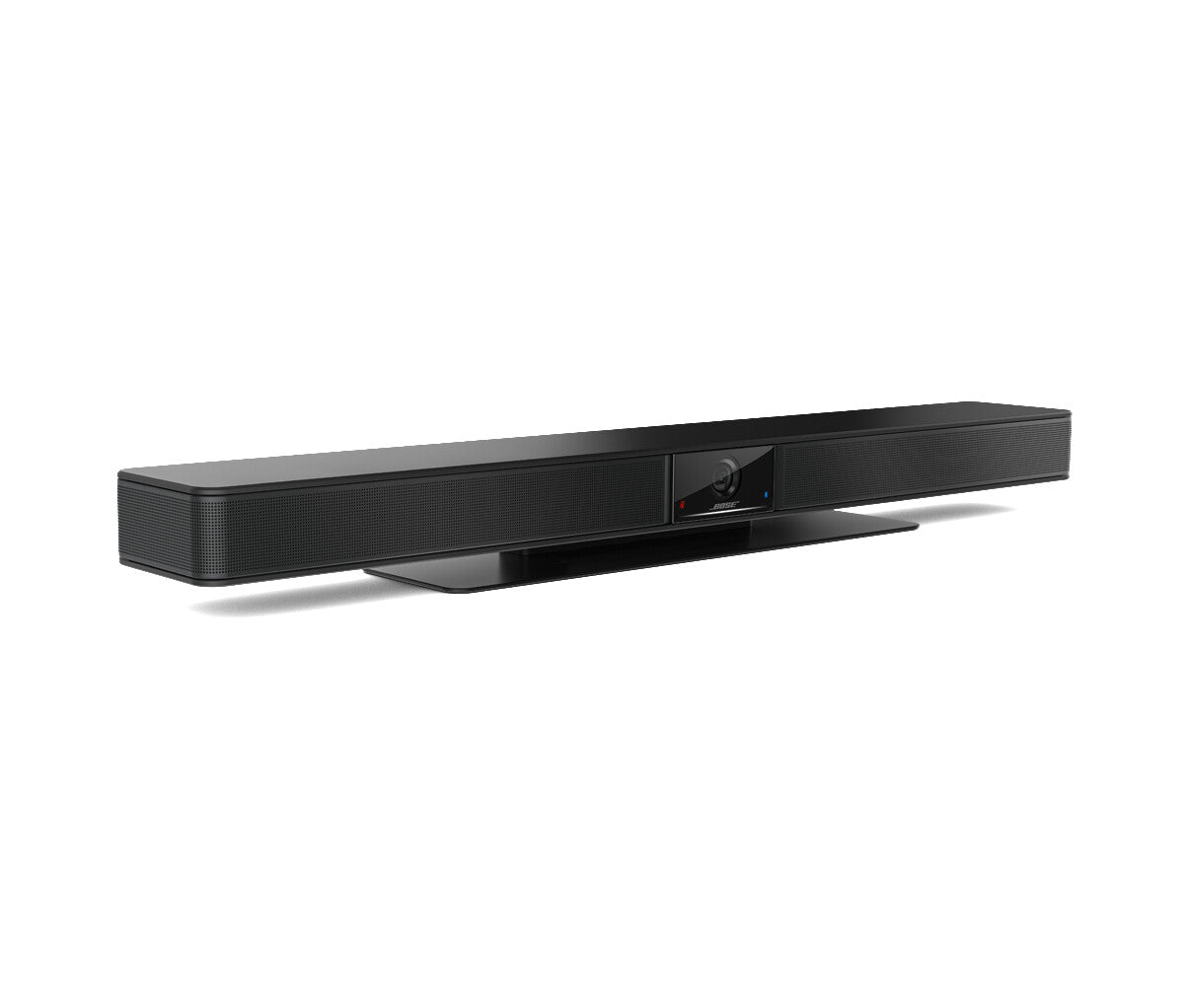

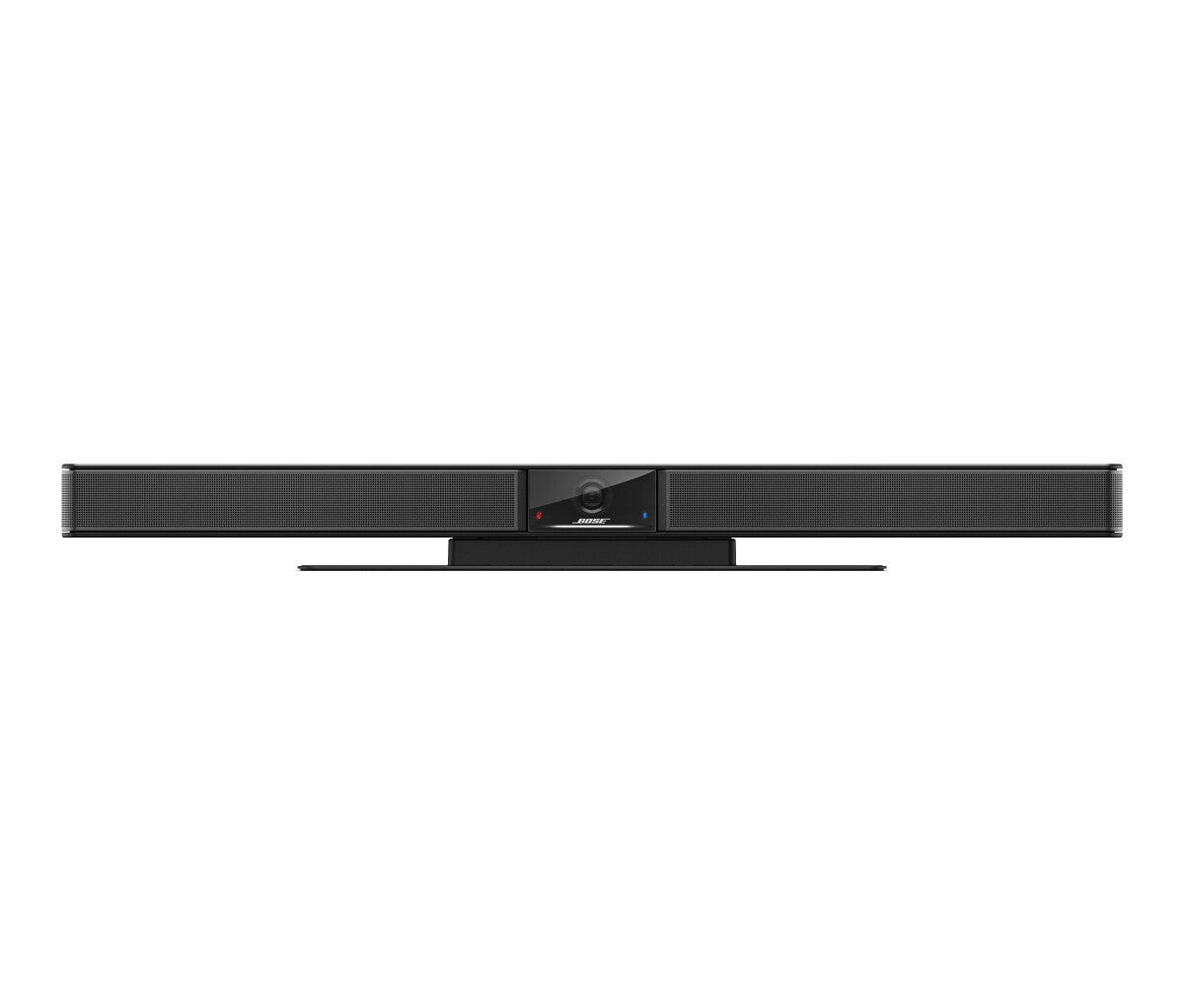

- Mount easily in multiple ways with included table stand and wall-mount kit or with VESA mounting accessory (sold separately)
- Connect to existing network infrastructure, making installation and troubleshooting faster and allowing for remote updates, management, and monitoring
- Configure easily with Bose Work Configuration software, available as an app or via web browser; and manage remotely with Bose Work Management software for single-device or enterprise-wide, multi-device changes, and to view device status in real time
- Control settings in real time from a smartphone using the Bose Work mobile app to easily adjust volume, mute, pan, tilt, zoom, zoom presets, and Bluetooth® pairing
- Easily connect a smartphone via Bluetooth connectivity to use as a standalone speakerphone or stream music

Specifikationer

Performance
PTZ control Yes
Wall mountable Yes
Signal-to-Noise Ratio (SNR) 89 dB
Product colour Black
Bluetooth version 4.2
Bluetooth Yes
Product type Group video conferencing system
Video
Video formats supported H.264, M-JPEG
Maximum frame rate 30 fps
Supported video modes 720p, 1080p, 2160p
Total megapixels 8 MP
HD type 4K Ultra HD
Audio
Microphone pick-up range 6 m
Noise reduction Yes
RMS rated power 20 W
Frequency range 85 - 20000 Hz
Built-in speaker(s) Yes

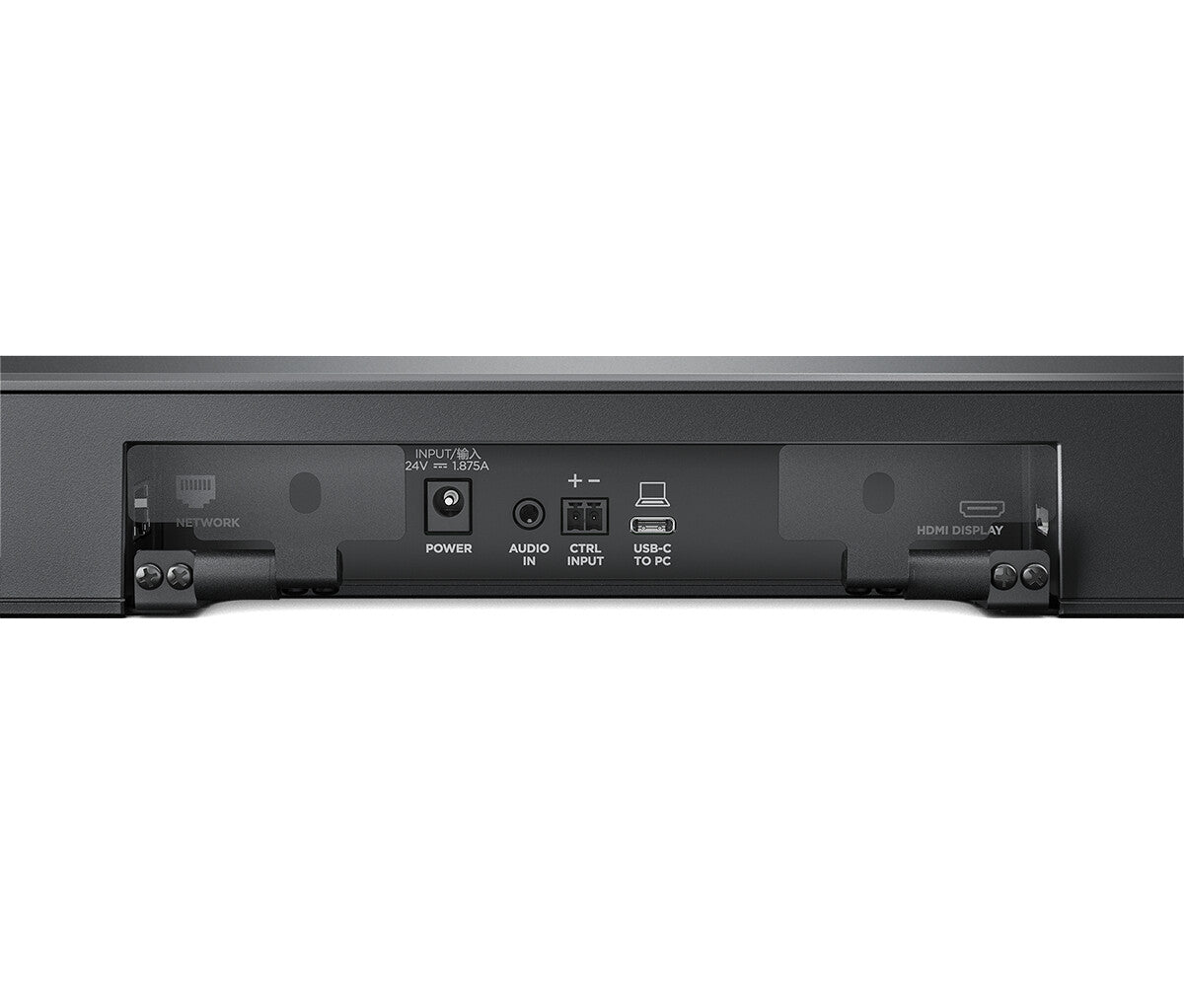

Ports & interfaces
Headphone outputs 1
Ethernet LAN (RJ-45) ports 1
USB connector type USB Type-C
HDMI ports quantity 2
Network
Wi-Fi standards Wi-Fi 5 (802.11ac)
Wi-Fi Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Ethernet LAN Yes
Camera
White balance Auto
Closest focusing distance 0.5 m
Remote control interface IR Wireless
Vertical field of view 81°
Horizontal field of view 115°
Digital zoom 5x
Megapixel (approx.) 8 MP
Display
Viewing angle, horizontal 115°
Viewing angle, vertical 81°
Microphone
Number of microphones 6
Microphone frequency 20 - 15000 Hz
Computer system
Other operating systems supported ChromeOS
Mac operating systems supported Mac OS X 10.10 Yosemite
Windows operating systems supported Windows 10, Windows 7, Windows 8.1
Logistics data
Harmonized System (HS) code 85176990
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Power
DC output current 1.875 A
DC output voltage 24 V
Current 1.5 A
AC input frequency 50 / 60 Hz
AC input voltage 110 - 240 V
Power source type AC
Certificates
Compliance certificates RoHS
Weight & dimensions
Package weight 5.4 kg
Weight 2.5 kg
Height 48 mm
Depth 96 mm
Width 686 mm
Packaging content
Remote control included Yes
Quick start guide Yes
AC adapter included Yes
Wall mounting kit Yes
HDMI cable length 1.5 m
Cables included AC, HDMI, USB Type-C to USB Type-C
