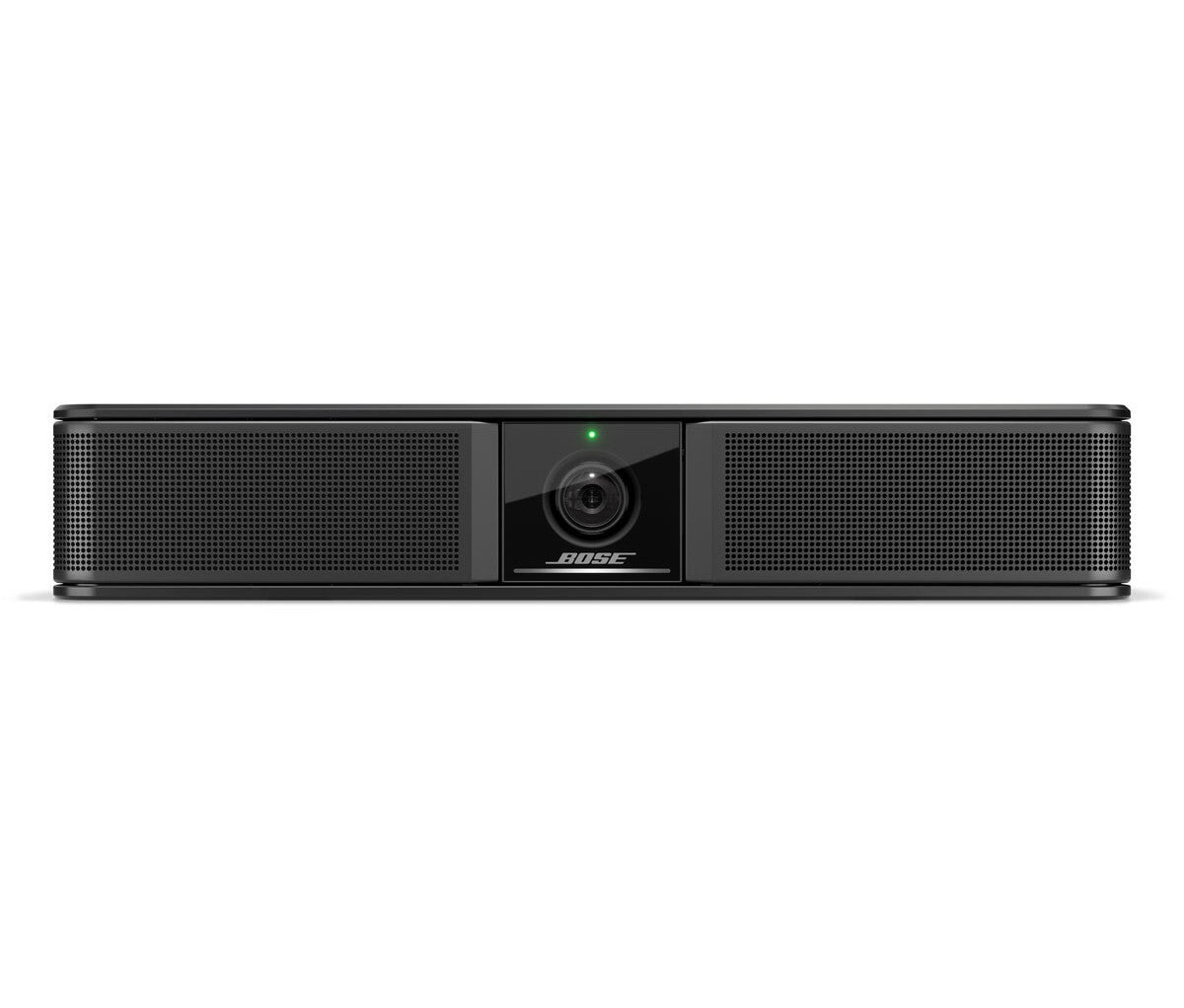

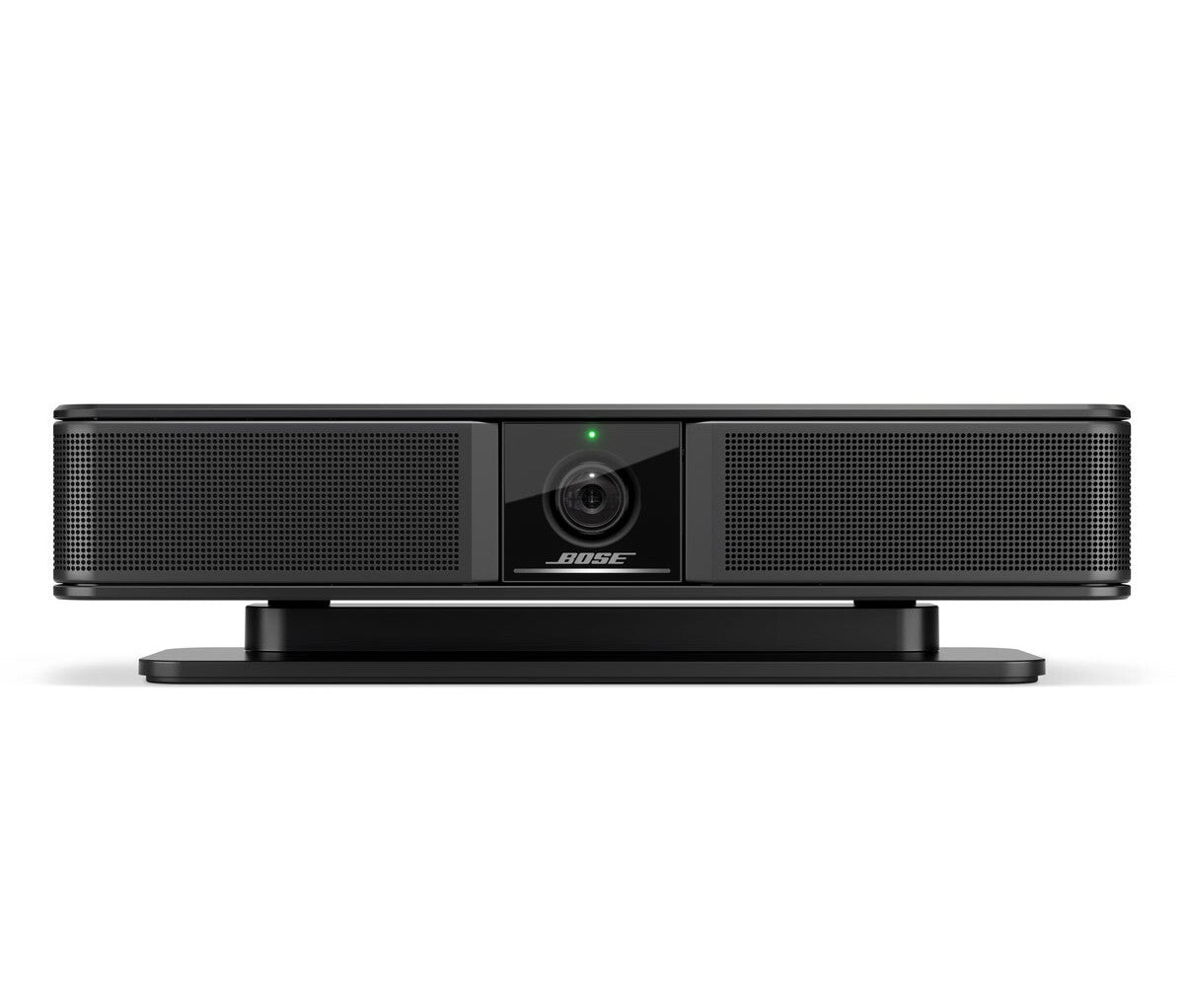

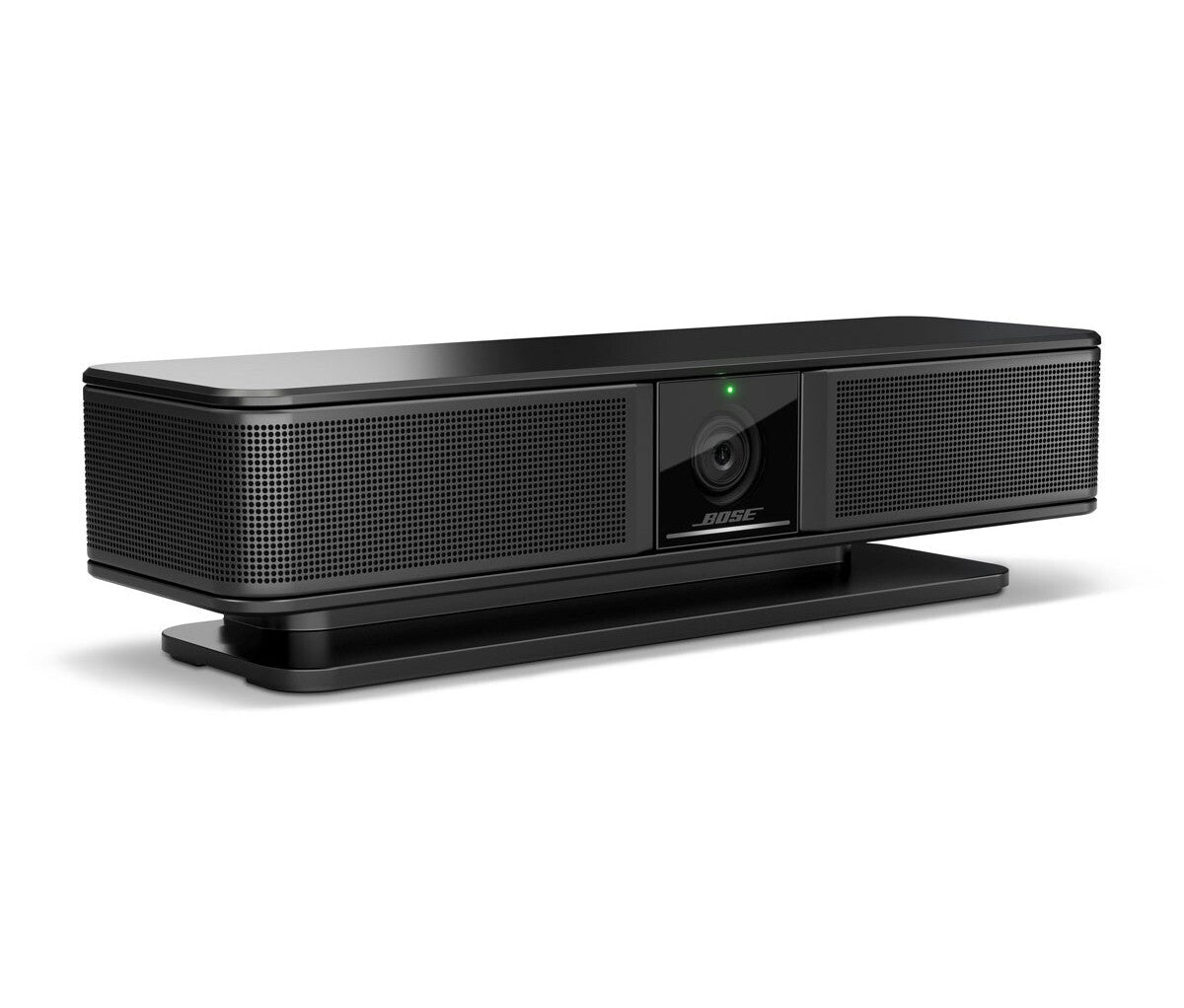

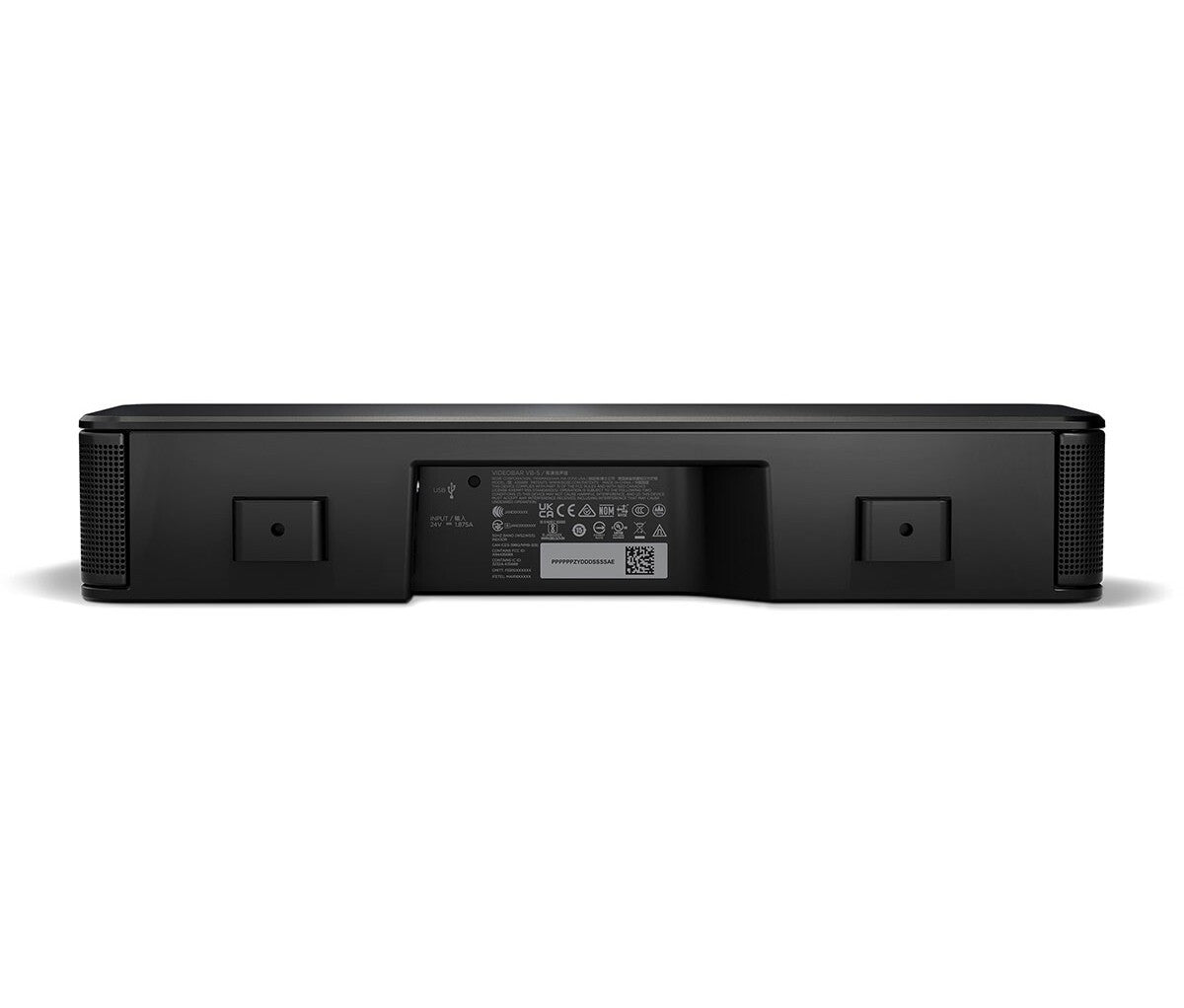

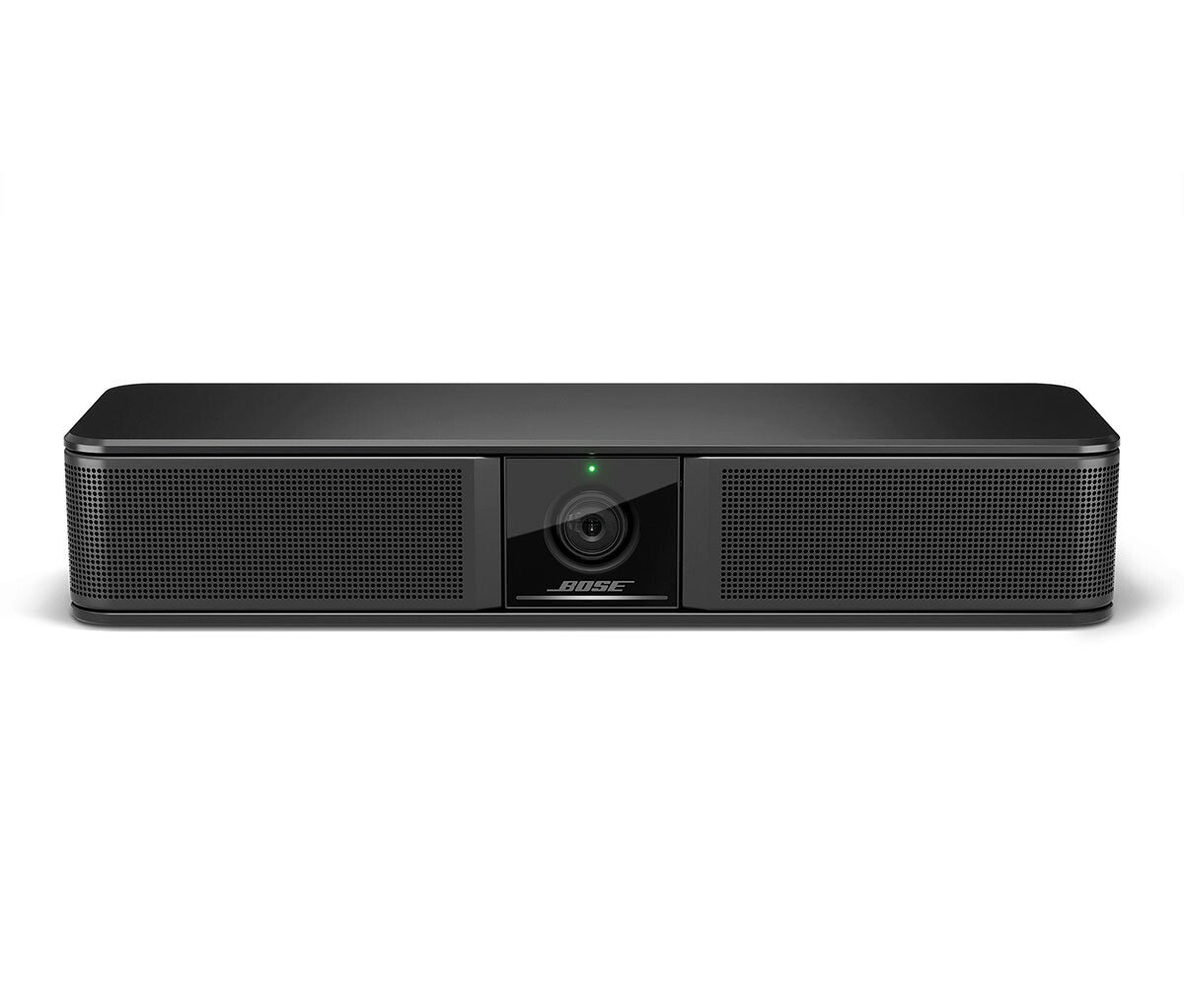

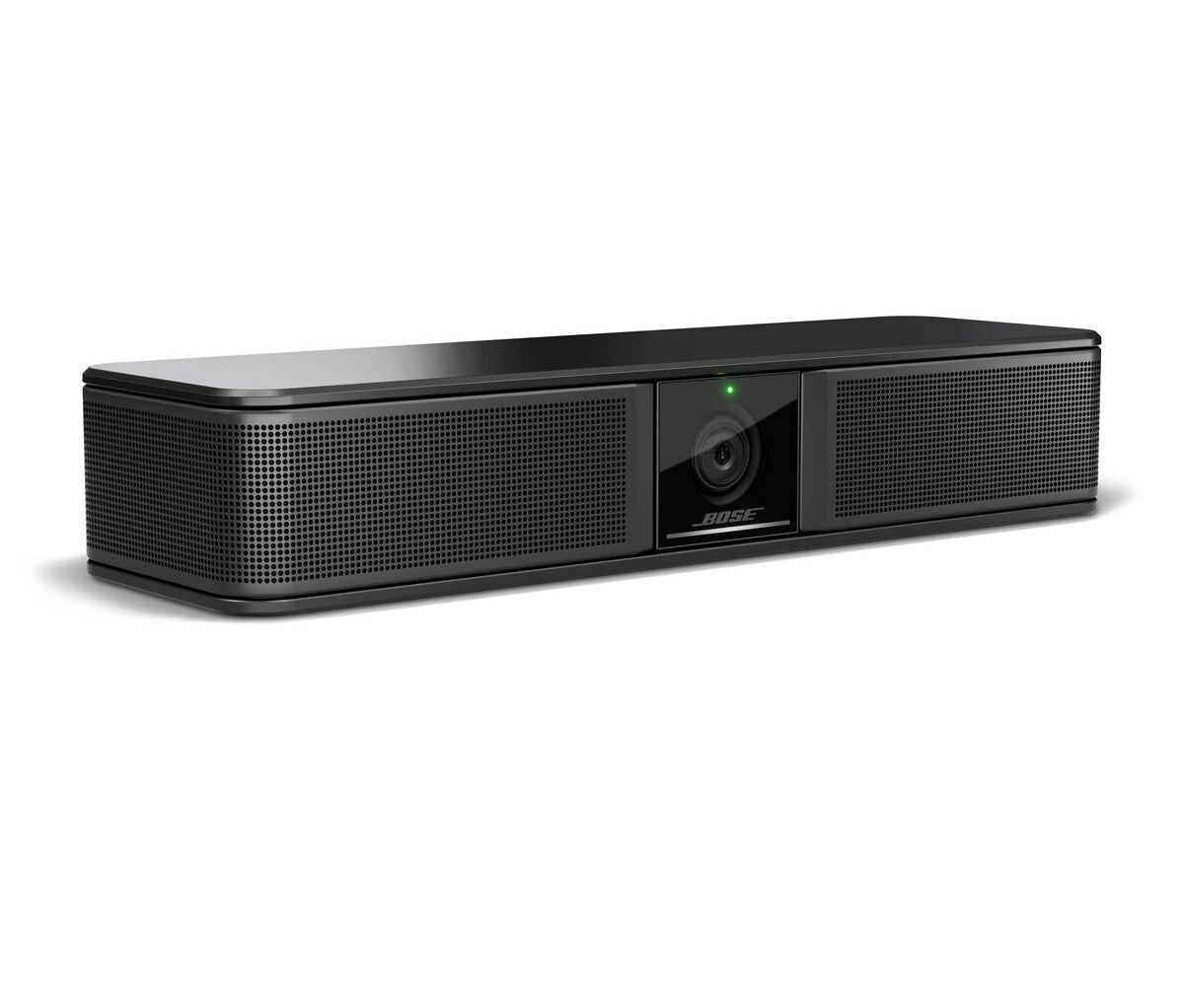

Bose Videobar VBS 230V EU video conferencing system 8 MP Group video conferencing system

Bose  |  Varenummer: 868751-2110
Stregkode: 0017817835350

Beskrivelse

8 MP, 15 W, 90 – 20,000 Hz, 86 dB, 267 mm × 48 mm × 87 mm, 1000 g

SIMPLE SETUP, CRYSTAL-CLEAR EXPERIENCE
Bose Videobar VB-S is a compact all-in-one USB conferencing device that’s easy to install and brings premium audio and video to rooms up to 3 × 3 meters (10 × 10 feet). With four beam-steering microphones, a 4K ultra-HD camera, and signature Bose sound, VB-S delivers a meeting experience so clear you can read the room from across the globe.

Bring the Bose experience to small meeting spaces — huddle spaces, meeting booths, and rooms up to 3 × 3 meters (10 × 10 feet) — with an all-in-one USB solution that installs quickly and easily and delivers premium audio and video performance.

4 beam-steering microphones make conversation more natural by actively focusing on voices; exclusion zones help reject unwanted sound; and auto EQ delivers optimized audio to all participants.

Group Mode keeps all in-room participants in view and allows remote participants to better see and understand the conversation, whiteboard, flipchart, or other in-room objects.

Individual Mode frames and dynamically follows the presenter; great for teachers, training contexts, and more.

Elegant, low-profile design made possible by renowned Bose engineering, allowing loudspeaker, microphones, and electronics to be housed closely together while delivering stunning performance without interference.

MEETING ROOMS MADE EASY

Specifikationer

Performance
PTZ control Yes
Wall mountable Yes
Signal-to-Noise Ratio (SNR) 86 dB
Product colour Black
Bluetooth version 4.2
Bluetooth Yes
Product type Group video conferencing system
Video
Video formats supported H.264, M-JPEG
Maximum frame rate 30 fps
Supported video modes 720p, 1080p, 2160p
Total megapixels 8 MP
HD type 4K Ultra HD
Audio
Microphone pick-up range 4 m
Noise reduction Yes
RMS rated power 15 W
Frequency range 90 - 20000 Hz
Built-in speaker(s) Yes

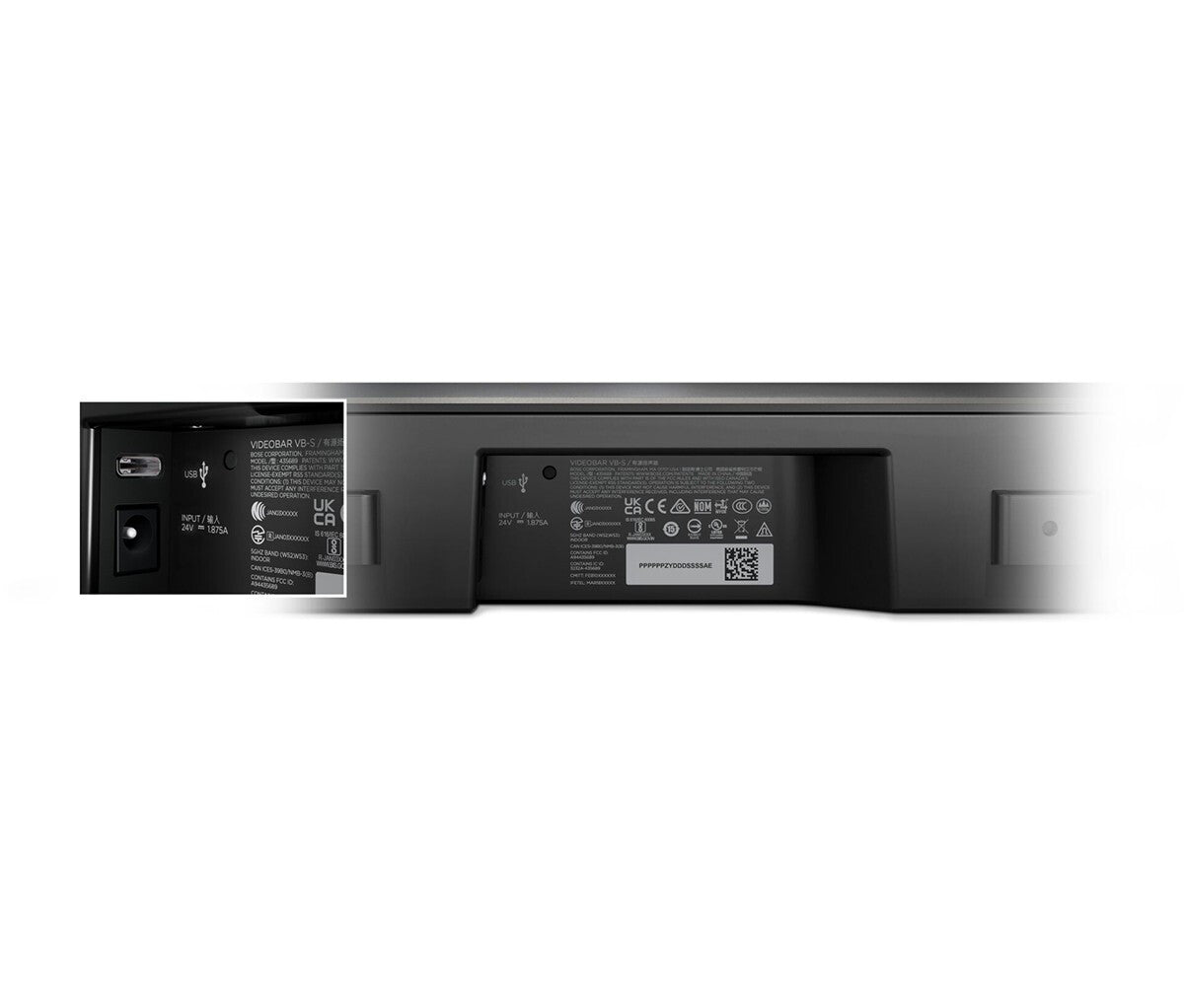

Ports & interfaces
USB connector type USB Type-C
Network
Wi-Fi standards Wi-Fi 5 (802.11ac)
Wi-Fi Yes
Camera
White balance Auto
Closest focusing distance 0.5 m
Remote control interface IR Wireless
Vertical field of view 81°
Horizontal field of view 115°
Digital zoom 5x
Megapixel (approx.) 8 MP
Display
Viewing angle, horizontal 115°
Viewing angle, vertical 81°
Microphone
Number of microphones 4
Microphone frequency 20 - 15000 Hz
Computer system
Other operating systems supported ChromeOS
Mac operating systems supported Mac OS X 10.10 Yosemite
Windows operating systems supported Windows 10, Windows 8.1
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -40 - 70 °C
Power
DC output current 1.875 A
DC output voltage 24 V
Current 1.5 A
AC input frequency 50 - 60 Hz
AC input voltage 110–240
Power source type AC
Certificates
Compliance certificates RoHS
Weight & dimensions
Package weight 2.3 kg
Weight 1 kg
Height 48 mm
Depth 87 mm
Width 267 mm
Packaging content
Remote control included Yes
Quick start guide Yes
Cables included USB Type-A to USB Type-C, USB Type-C to USB Type-A

Download
