Chief Speed-Connect Universal Above Tile Suspended Ceiling Camera Mount Kit
Chief | Varenummer:
CMS446
Beskrivelse
Beskrivelse
Speed-Connect Universal Above Tile Suspended Ceiling Camera Mount Kit, max 9 kg, 32 x 203 x 595 mm, White

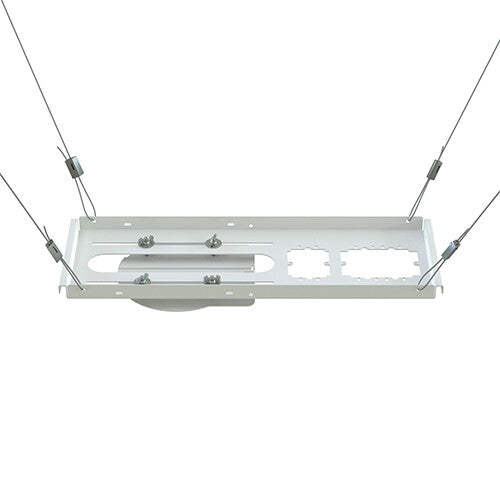

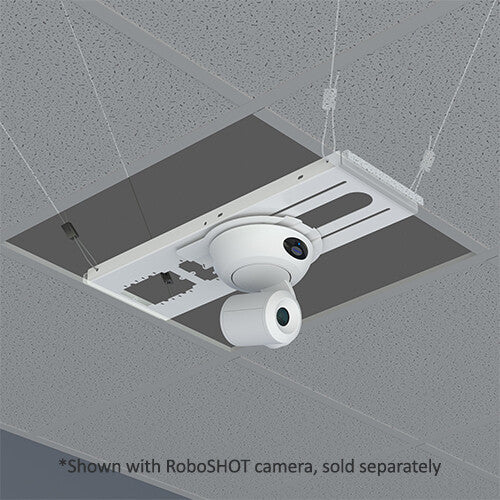

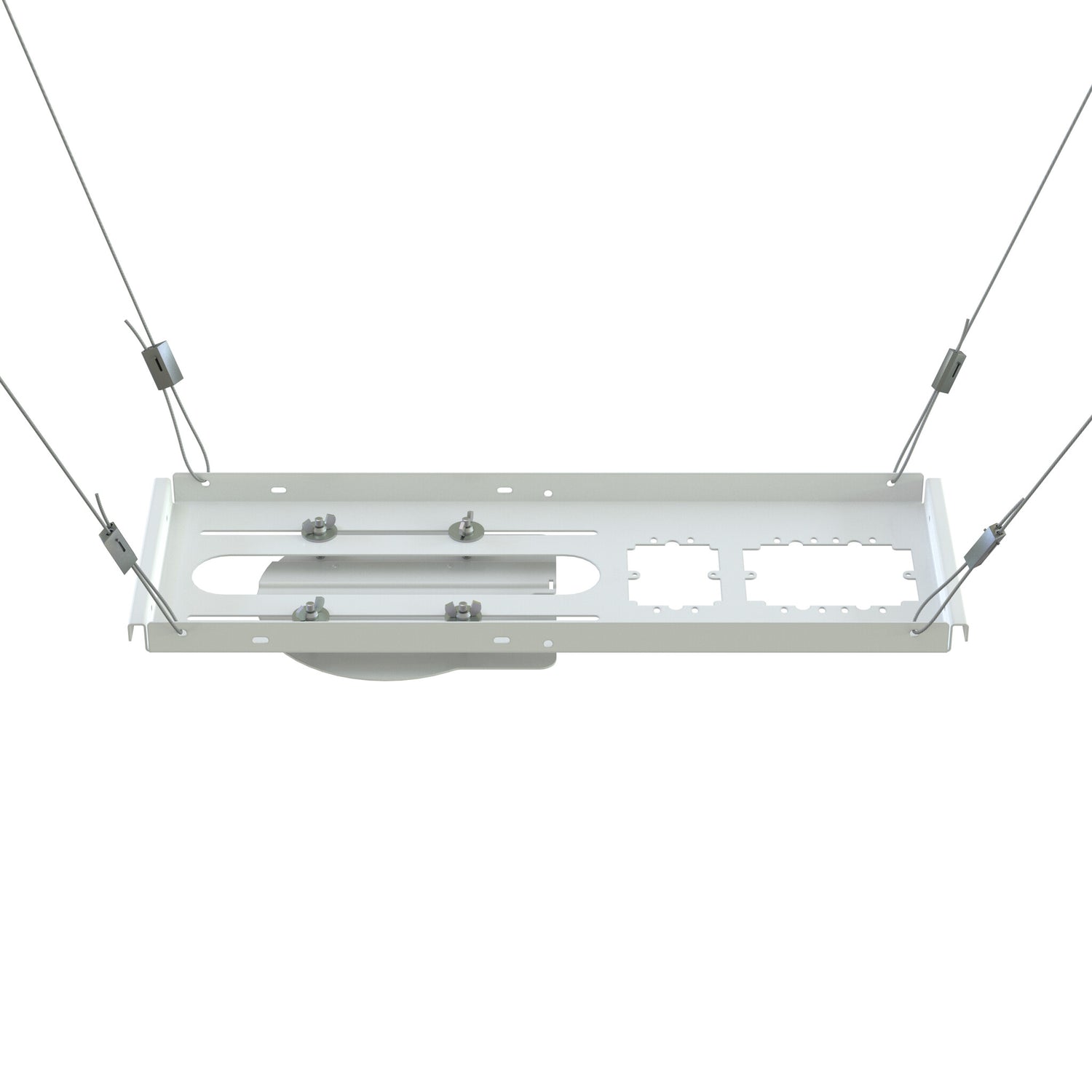

Speed up suspended pro AV camera installations with the CMS446 Ceiling Tile Kit. Designed with the installer in mind, the CMS446 features a WireVice Cable Suspension System allowing for a quick tie-off and an all-point security system to protect against theft. Each kit fits 24” (600 mm) wide ceiling tile grids and includes (4) 25’ flexible cables, (4) wood eyebolts, (4) concrete anchors and a chrome trim ring.
Kit includes CMS440 with added camera plate.
*Ceiling Tile Kit fits most cameras under 20 lbs and can be secured with 1/4" 20 thread mounting holes.
Specifikationer
Specifikationer
| Technical details | |
|---|---|
| Certification | TÜV Certified, UL Listed |
| Maximum weight capacity | 9 kg |
| Material | Metal |
| Product colour | White |
| Weight & dimensions | |
|---|---|
| Height | 32 mm |
| Depth | 595 mm |
| Width | 203 mm |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
Download
Download
PDF download:
Chief Speed-Connect Universal Above Tile Suspended Ceiling Camera M...
