Chief Fusion 139.7 cm (55") Black
Beskrivelse
Beskrivelse

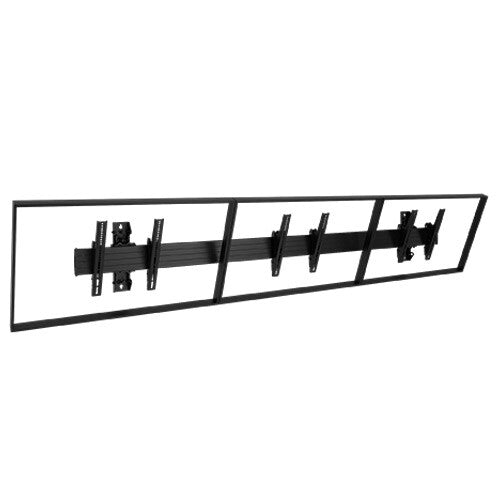

Fusion Large Wall 3X1 Menu Board
Fusion® Menu Board Wall Mounts offer perfect display positioning and flexible adjustments. The single horizontal extrusion with depth adjustment aligns the screens quickly even on irregular mounting surfaces and allows easy access behind the displays for servicing.
Now Shipping
Note:To ensure this mount works with your equipment check the "Compatibility" tab below.
- Single horizontal extrusion keeps screens aligned
- ControlZone™ micro-height adjustment
- Centris® tilt between +0 and -20 degrees
- Tool-free screen engagement
- Portrait and landscape options for 2x1 and 3x1 configurations
- Landscape for 4x1 and 5x1 configurations
- Accommodate 40-55" screens
- Optional padlock security
- Full line of accessories that work across Fusion wall, ceiling and freestanding lines
Specifikationer
Specifikationer
| Mounting | |
|---|---|
| Number of displays supported | 3 |
| Maximum weight capacity | 56.7 kg |
| Minimum screen size | 101.6 cm (40") |
| Maximum screen size | 139.7 cm (55") |
| Mounting type | Wall |
| Ergonomics | |
|---|---|
| Height adjustment | Yes |
| Height adjustment range | 0 - 50 mm |
| Tilt angle range | -20 - 0° |
| Design | |
|---|---|
| Product colour | Black |
| Weight & dimensions | |
|---|---|
| Width | 2764 mm |
| Depth | 147 mm |
| Depth (min) | 14.7 cm |
| Height | 425 mm |
| Packaging data | |
|---|---|
| Package weight | 46 kg |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85299097 |
