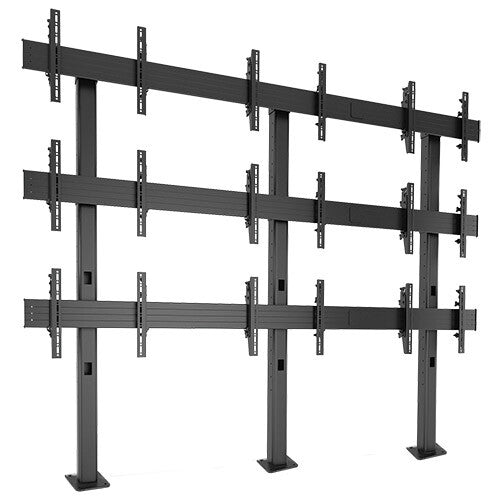

Chief Fusion® 3 x 3 Micro-Adjustable Large Bolt-Down Freestanding Video Wall
Chief | Varenummer:
LBM3x3U
Beskrivelse
Beskrivelse
3 x 3 Micro-Adjustable Large Bolt-Down Freestanding Video Wall
Chief's FUSION Bolt-Down freestanding solution makes it possible to construct video walls in prominent locations for permanent applications.
Screen array configuration: 3 screens wide x 3 screens high.
Features
- 3 x 3 screen arrangement for 42 - 46" screens. Larger displays possible with FCAX brackets, use MountFinder to confirm compatibility
- Easily align displays with independent height, plumb and lateral shift adjustment
- Bolt-down solution allows for a permanent solution
- Integrated cable management for a clean installation
Specifikationer
Specifikationer
| Mounting | |
|---|---|
| Number of displays supported | 9 |
| Minimum screen size | 106.7 cm (42") |
| Maximum screen size | 116.8 cm (46") |
| Mounting type | Floor |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 400 x 400 mm |
| Panel mounting interface | 100 x 100,200 x 200,300 x 300,400 x 400 |
| Ergonomics | |
|---|---|
| Height adjustment | No |
| Minimum distance to floor | 41.6 cm |
| Maximum distance to floor | 2.09 m |
| Distance to the wall (min) | 44.1 cm |
| Distance to the wall (max) | 2.09 m |
| Design | |
|---|---|
| Type | Fixed floor stand |
| Product colour | Black |
| Housing material | Steel |
| Certification | TAA,ULCERT |
| Weight & dimensions | |
|---|---|
| Width | 2766.1 mm |
| Depth | 239.5 mm |
| Height | 2308.9 mm |
| Packaging data | |
|---|---|
| Package weight | 128.4 kg |
| Technical details | |
|---|---|
| Compliance certificates | TAA |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85299097 |
