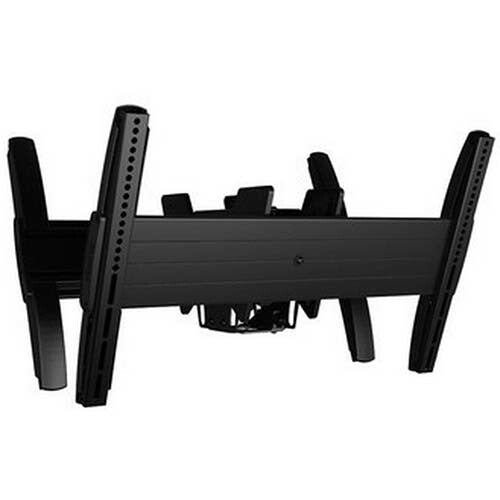

Chief LCB1U, Fusion® Large Flat Panel Ceiling Mount
Chief | Varenummer:
LCB1U
Specifikationer
Specifikationer
FUSION Large Flat Panel Ceiling Mount
Chiefs FUSION™ Flat Panel Ceiling Mounts are installer inspired and offer perfect display positioning and flexible adjustments for large flat panel screens. Great for digital signage installations.
- Ceiling Plate and Extension Column are required and must be ordered separately
- Compatible with traditional 1.5" NPT and new CPA pinned ceiling plates and column system
- See ceiling plates and extension columns (Adjustable and Fixed) for 1.5" NPT compatibility
- See CPA ceiling plates and CPA columns for pin connection compatibility
- Stackable on a single pole when used with CPA columns
| Mounting | |
|---|---|
| Number of displays supported | 2 |
| Maximum weight capacity | 56.7 kg |
| Minimum screen size | 81.3 cm (32") |
| Maximum screen size | 152.4 cm (60") |
| Mounting type | Ceiling |
| Minimum VESA mount | 200 x 100 mm |
| Maximum VESA mount | 200 x 100 mm |
| Ergonomics | |
|---|---|
| Tilt angle range | -20 - 5° |
| Design | |
|---|---|
| Product colour | Black |
| Certification | ULCERT |
| Weight & dimensions | |
|---|---|
| Width | 680.7 mm |
| Depth | 259.1 mm |
| Height | 419.1 mm |
| Packaging data | |
|---|---|
| Package weight | 15 kg |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85299097 |
