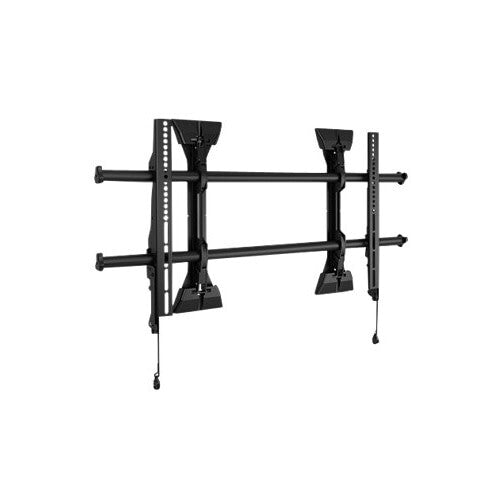

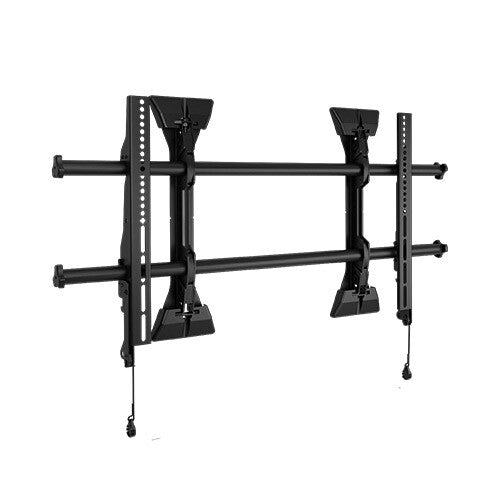

Chief Large Fusion Micro-Adjustable Fixed Wall Display Mount
Chief | Varenummer:
LSM1U
Beskrivelse
Beskrivelse
Large Fusion Micro-Adjustable Fixed Wall Display Mount
Installer-inspired Fusion fixed mount solves top flat panel installation problems, offering flexible adjustments for large displays with a low-profile display mounting solution. Chief upgraded fixed wall mounts based on installer feedback and direct observations of installers in the field. Many new features join Fusion favorites like Centerless shift, ControlZone leveling adjustment and ClickConnect Latching. New benefits included added stability, faster install, improved lateral shift, easier cable management and enhanced security.
Specifikationer
Specifikationer
| Mounting | |
|---|---|
| Number of displays supported | 1 |
| Maximum weight capacity (per display) | 90.7 kg |
| Maximum weight capacity | 90.7 kg |
| Minimum screen size | 94 cm (37") |
| Maximum screen size | 160 cm (63") |
| Mounting type | Wall |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 800 x 500 mm |
| Panel mounting interface | 100 x 100,800 x 500 mm |
| Ergonomics | |
|---|---|
| Height adjustment | Yes |
| Distance to the wall (max) | 5.1 cm |
| Design | |
|---|---|
| Product colour | Black |
| Certification | UL |
| Technical details | |
|---|---|
| Orientation | Landscape |
| Weight & dimensions | |
|---|---|
| Width | 654 mm |
| Depth | 50.8 mm |
| Depth (max) | 5.1 cm |
| Height | 463.6 mm |
| Packaging data | |
|---|---|
| Package weight | 8.82 kg |
| Package type | Box |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85299097 |
