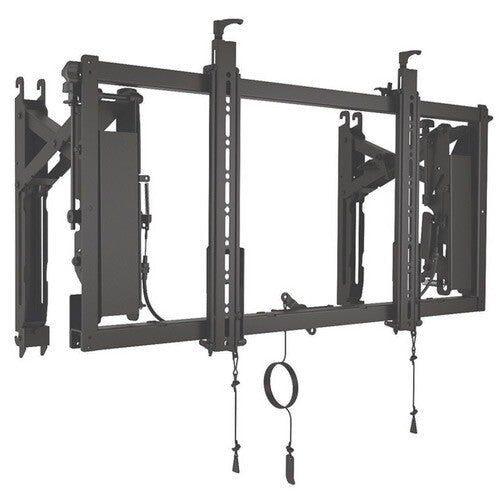

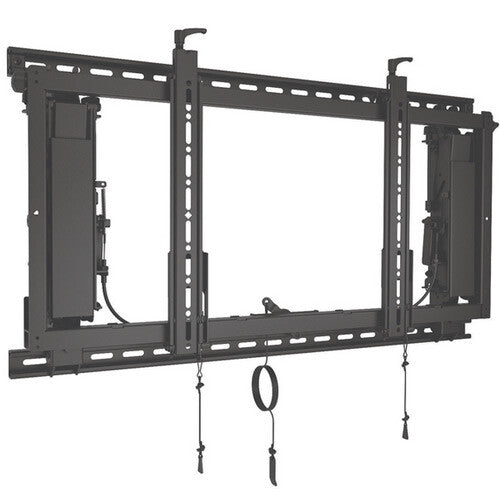

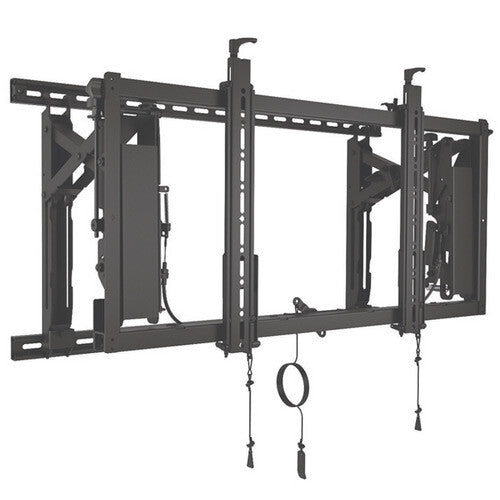

LVSXU, ConnexSys™ Video Wall Landscape Mounting System without Rails
Chief's ConnexSys™ Video Wall Mounting System solves common video wall challenges of speed, alignment, serviceability and rigidity. The ConnexSys™ Video Wall Mounting System provides the ability to level each row once by using strut channel to connect multiple mounts together with a simple-to-install system that can handle the largest requirements.
Read the complete story of ConnexSys™ here.
| Mounting |
|---|
| Maximum weight capacity |
68.04 kg |
| Minimum screen size |
106.7 cm (42") |
| Maximum screen size |
2.03 m (80") |
| Mounting type |
Wall |
| Minimum VESA mount |
200 x 100 mm |
| Maximum VESA mount |
700 x 400 mm |
| Ergonomics |
|---|
| Height adjustment |
Yes |
| Tilt angle range |
-2.5 - 4° |
| Design |
|---|
| Product colour |
Black |
| Certification |
ULCERT |
| Weight & dimensions |
|---|
| Width |
901.7 mm |
| Depth |
101.6 mm |
| Height |
553.7 mm |
| Packaging data |
|---|
| Package weight |
16.8 kg |
| Logistics data |
|---|
| Harmonized System (HS) code |
85299097 |
